Microconnect FIB221002 Cable InfiniBand/fibra óptica 2 m SC amarillo

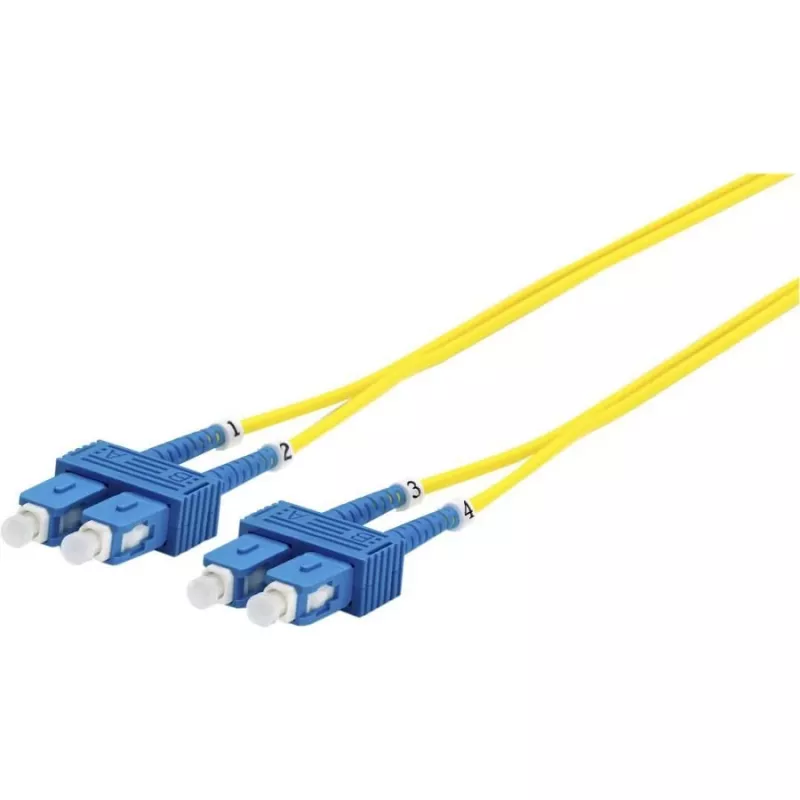

The Microconnect FIB221002 SC OS2 2 m Yellow is a 2 m single-mode fibre optic patch cable with SC connectors on both ends and OS2 fibre (9 µm core). It is designed for high-speed network links in data centres, server rooms and telecom environments and supports full-duplex transmission for Ethernet applications up to 1G/10G/40G/100G. The cable uses LSZH jacket material and conforms to common industry standards for indoor installations.

Advantages

This SC–SC single mode patch cord provides low attenuation and stable signal transport over long distances (up to 10 km at 1310 nm and up to 40 km at 1550 nm). The 9 µm OS2 core offers compatibility with standard single-mode equipment, while the LSZH jacket reduces smoke and toxic emissions in case of fire. The compact SC connectors ensure reliable mating and simple installation in racks and patch panels.

Suitable for

• Enterprise networks and server rooms
• Data centres and cloud storage networks
• Telecom rooms and central offices
• Connecting 1G/10G/40G/100G Ethernet links

Key specifications

• Length: 2 m
• Connector type: SC to SC
• Fibre type: OS2 single-mode, core diameter 9 µm
• Jacket: LSZH
• Colour: Yellow
• Weight: 0.04 kg

How to use

Route the cable between equipment ports or patch panels, ensuring connectors are clean before mating. Insert each SC connector into the corresponding SC adapter or transceiver port until it clicks into place. Avoid tight bends and mechanical stress on the fibre; maintain the minimum bend radius specified by the manufacturer to preserve signal quality. When disconnecting, press the SC latch and withdraw the connector straight out.

Recommendations

For reliable long-term performance, keep connector end-faces clean using proper fibre cleaning tools and avoid repeated mating cycles on the same adapter without inspection. Use this single-mode SC patch cord for indoor backbone and cross-connect applications in controlled environments.
