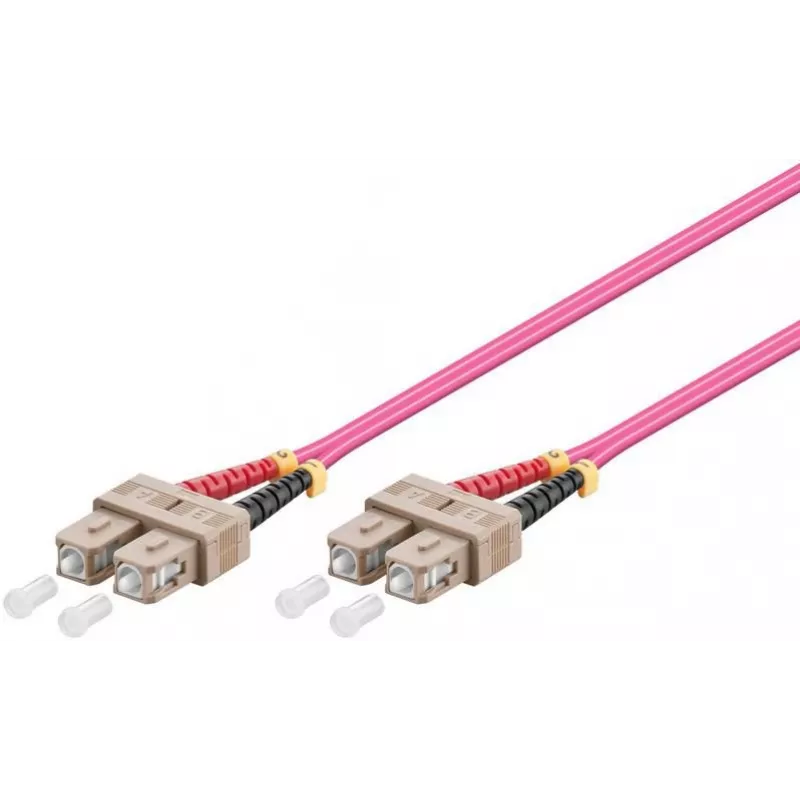

Microconnect FIB222007-4 Cable InfiniBand/fibra óptica 7 m SC violeta

The Microconnect FIB222007-4 is a 7 m OM4 multimode fibre optic patch cord with SC connectors on both ends. With a 50/125 µm core-cladding structure and full-duplex capability, this violet cable is designed for high-speed Ethernet links including 10G, 40G and 100G applications and for use with SR and BIDI transceivers such as SFP+ and QSFP+.

Advantages

OM4 multimode construction provides increased bandwidth and extended reach for short-range high-speed connections. The cable uses low-smoke zero-halogen (LSZH) jacket material and is manufactured to common industry standards (Telcordia, EIA/TIA, IEC), offering predictable performance and safer routing in confined spaces.

Suitable for

• 10G SR links with SFP+ transceivers
• 40G and 100G connections using QSFP+ or BIDI SR modules
• Data centre short-range interconnects and backbone patching
• High-density fibre panels and structured cabling systems

Key specifications

• Cable type: OM4 multimode fibre (50/125 µm)
• Length: 7 m
• Connectors: SC — SC (both ends)
• Jacket material: LSZH
• Colour: Violet
• Weight: 0.09 kg
• Brand / MPN: MicroConnect / FIB222007-4

How to use

Inspect connectors and ports for dust or damage before insertion. Align the SC connector key and push until it locks; repeat for the other end. Use the cable for duplex fibre links between transceivers, patch panels or switches supporting multimode OM4. Avoid tight bends and secure the cable to prevent strain on connectors.

Recommendations

For optimal performance, keep bend radius above the manufacturer’s minimum (avoid sharp bends), store with protective caps on the connectors when not in use, and follow data centre cable management practices to minimise attenuation and connector wear.
