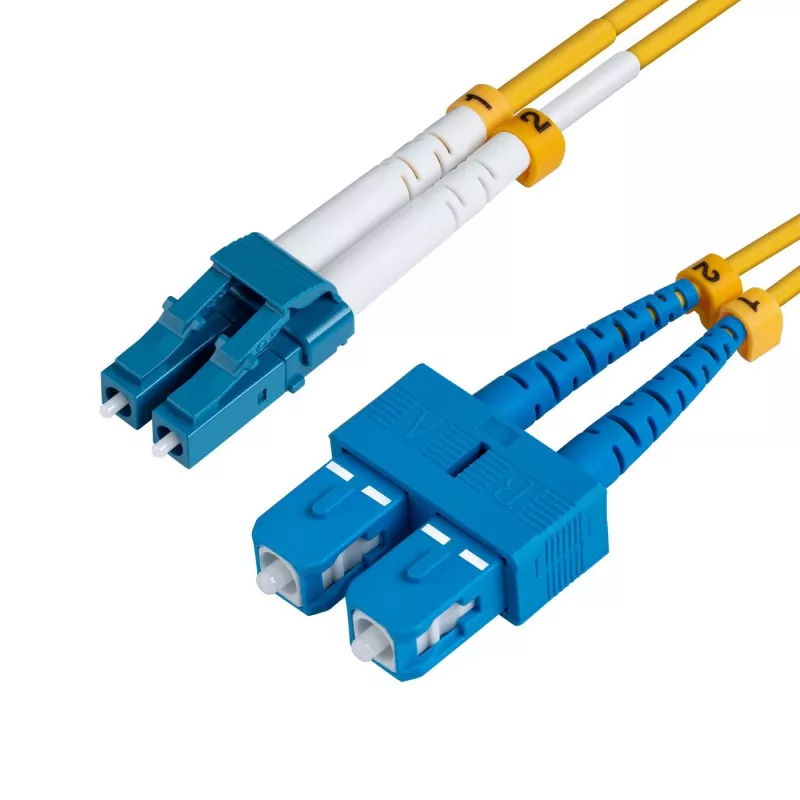

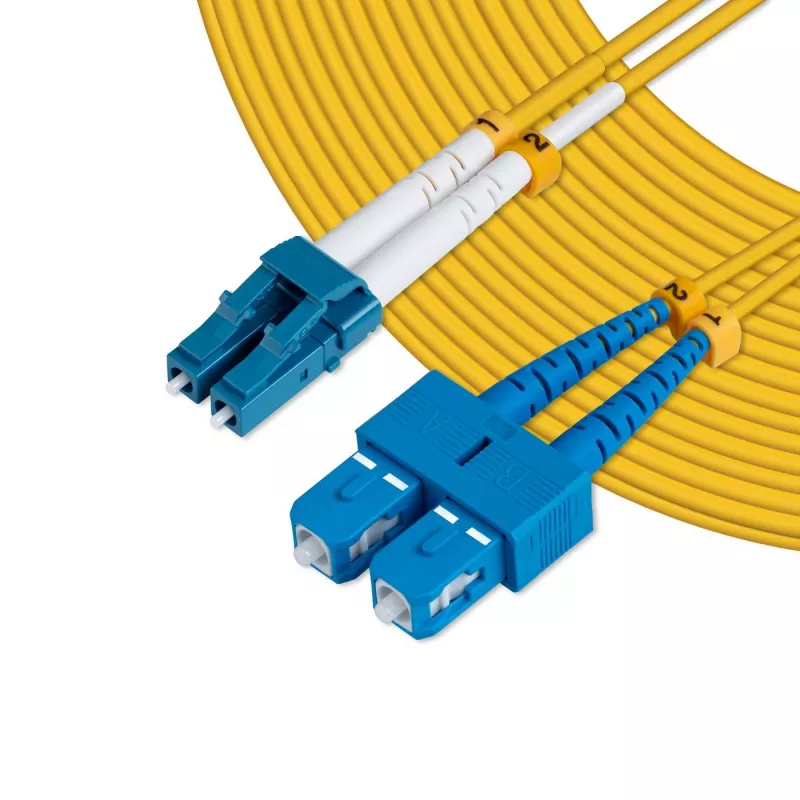

Microconnect FIB4210005 cable InfiniBand/fibra óptica 0,5 m LC SC amarillo

The Microconnect FIB4210005 is a single mode fibre optic patch cable with LC and SC connectors and a 0.5 m length. This OS2 cable has a 9 µm core diameter and yellow jacket for easy identification. It is designed for enterprise networks, telecom rooms, server farms and cloud storage networks, providing reliable connections for 1G/10G/40G/100G Ethernet links and fibre jumper requirements.

Advantages

The cable supports long-distance transmission with typical reach up to 10 km at 1310 nm and up to 40 km at 1550 nm. It uses LSZH jacket material and is manufactured to meet common industry standards such as IEC, EIA/TIA or Telcordia. Compact 0.5 m length and LC–SC connector pair ensure compatibility with mixed equipment racks and patch panels while minimising clutter.

Suitable for

• Enterprise network backbones
• Telecom rooms and data centres
• Server farms and cloud storage connectivity
• Short patch runs between panels and devices

Key specifications

• Type: Single mode fibre (OS2)
• Connectors: LC to SC
• Core diameter: 9 µm
• Length: 0.5 m
• Colour: Yellow
• Typical transmission distance: up to 10 km @ 1310 nm, up to 40 km @ 1550 nm
• Jacket: LSZH
• Weight: 0.008 kg

How to use

Inspect connector end-faces for contamination before installation and clean if necessary. Insert the LC connector into the equipment port and the SC connector into the corresponding panel or device receptacle until secure. Route the cable to avoid tight bends and mechanical strain; maintain minimum bend radius recommended for single mode fibre. For patching, use the 0.5 m length for short links between transceivers and patch panels.

Recommendations

Store and handle the fibre cable in a clean environment, avoid stepping on or sharply bending the cable, and follow standard fibre safety practices when inspecting or cleaning connectors.
