Microconnect FIB421003 cable InfiniBand/fibra óptica 3 m LC SC amarillo

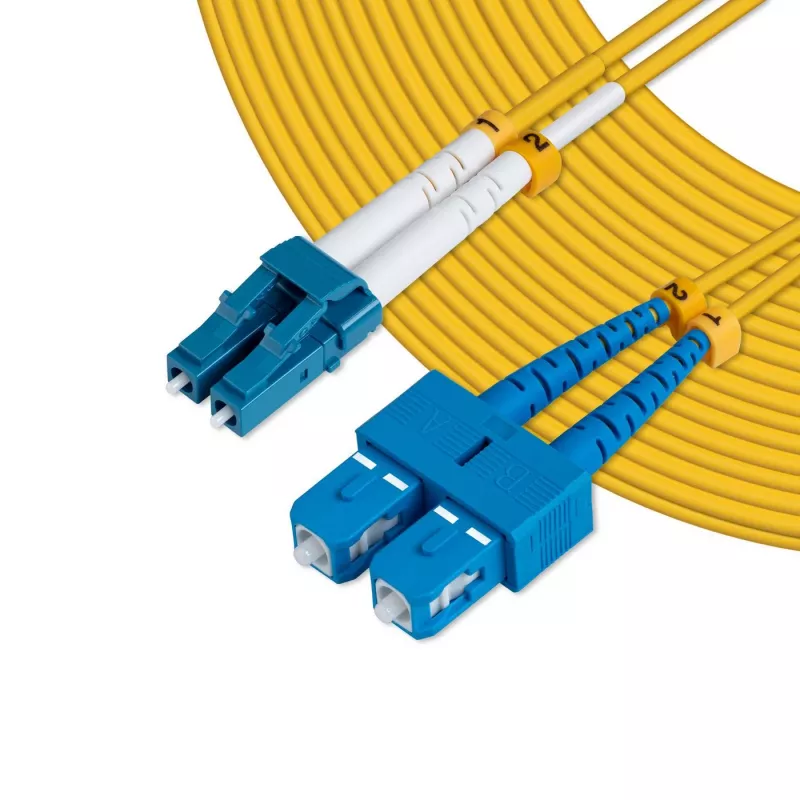

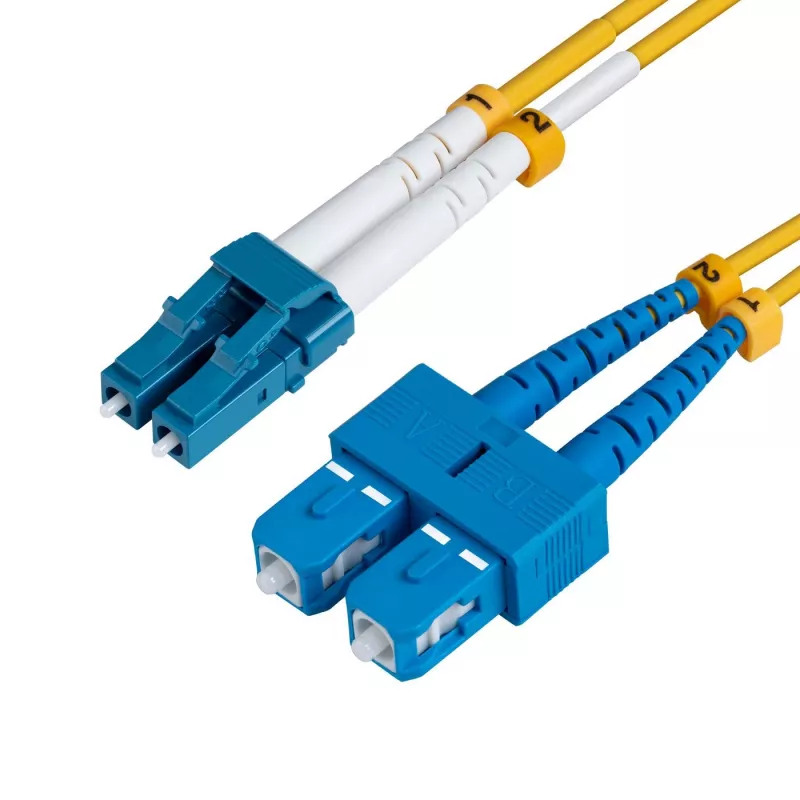

The Microconnect FIB421003 is a 3 m single-mode fibre optic patch cable with LC connector on one end and SC connector on the other. It uses OS2 fibre with a 9 µm core, supports full-duplex transmission and is suitable for 1G/10G/40G/100G Ethernet links. The yellow LSZH jacket makes the cable easy to identify and conforms to common industry standards for data centre and telecom room installations.

Advantages

This single-mode LC–SC patch cord provides low attenuation and stable performance over long distances, supporting up to 10 km at 1310 nm and up to 40 km at 1550 nm. The OS2 fibre and LSZH outer jacket ensure compatibility with standard network equipment and safer installation in confined spaces. The 3 m length and colour coding simplify routing and identification in structured cabling environments.

Suitable for

• Enterprise networks and data centres
• Telecom rooms and server farms
• Cloud storage and backbone links
• Connecting 1G/10G/40G/100G Ethernet equipment

Key specifications

• Cable length: 3 m
• Connector A: LC
• Connector B: SC
• Fibre type: OS2 single-mode (9 µm core)
• Colour: Yellow
• Weight: 0.03 kg

How to use

Inspect connectors and ports for dust before connection. Align and insert the LC connector into the device port and the SC connector into the corresponding port on the opposite device until each clicks into place. Use cable management to avoid sharp bends; maintain the minimum bend radius recommended for single-mode fibre. For disconnection, gently depress the connector latch and withdraw straight out.

Recommendations

Use in indoor installations and rack-mounted environments where LSZH jacket material is required. Avoid excessive bending, pulling or crushing of the cable and keep connectors capped when not in use to prevent contamination.
