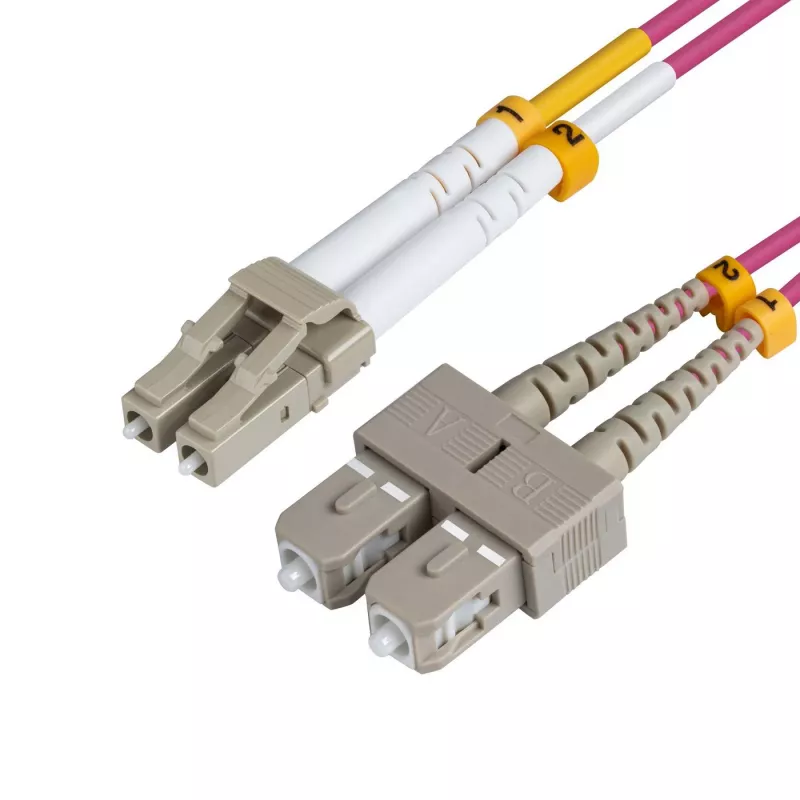

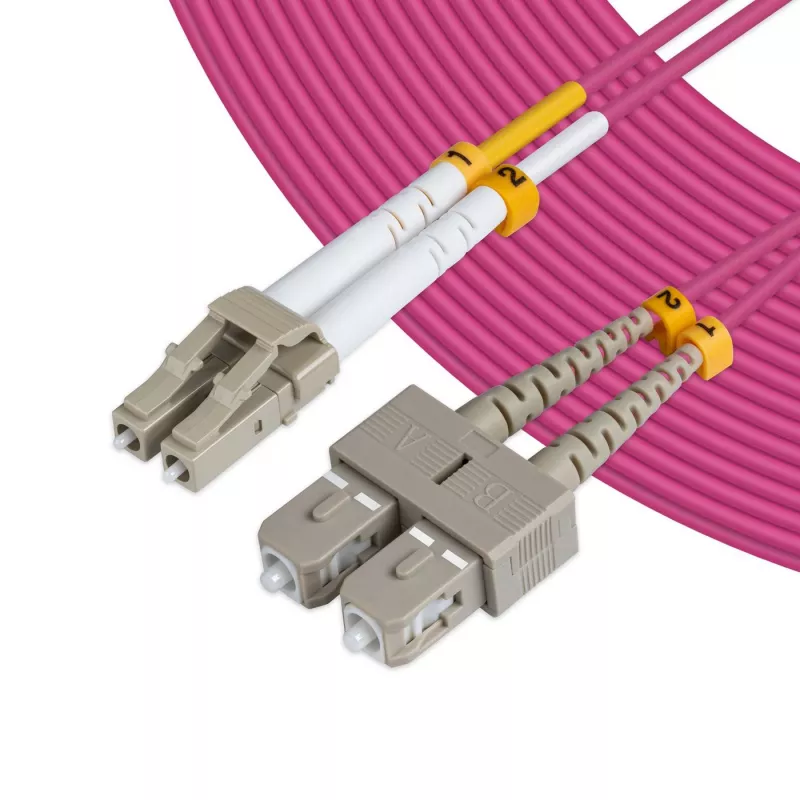

Microconnect FIB422005P cable InfiniBand/fibra óptica 5 m LC SC violeta

The Microconnect FIB422005P is a 5 m fibre optic patch cable with OM4 multimode fibre, featuring LC and SC connectors and a 50/125 µm core/cladding. Designed for full-duplex links, this violet LSZH cable supports high-speed Ethernet such as 10G SR and other multimode transceiver applications where OM4 performance is required.

Advantages

The OM4 multimode fibre provides lower attenuation and better bandwidth over OM3 when compared under equivalent conditions, and the bend-insensitive construction reduces signal loss when the cable is bent or routed in confined spaces. The cable uses LSZH jacket material and conforms to common industry standards for data centre and enterprise network installations.

Suitable for

• 10G SR multimode Ethernet links
• Connections between SFP+/SFP and transceivers supporting multimode fibre
• High-density data centre patching and enterprise fibre runs
• Short- to medium-distance multimode backbone links

Key specifications

• Length: 5 m
• Fibre type: OM4 multimode (50/125 µm)
• Connectors: LC to SC (full duplex)
• Jacket: LSZH
• Colour: Violet
• Weight: 0.02 kg

How to use

Install the LC and SC connectors into the corresponding ports on your network devices or patch panels, ensuring connectors are clean before mating. Route the cable to avoid sharp bends below the manufacturer’s minimum bend radius and secure it using cable management accessories. Verify link status and transceiver compatibility after installation.

Recommendations

Clean connectors with appropriate fibre cleaning tools before each connection, avoid kinking or tight loops, and maintain bend radii recommended by the manufacturer to preserve OM4 performance and minimize attenuation.
