Microconnect FIB422010 cable InfiniBand/fibra óptica 10 m LC SC azul

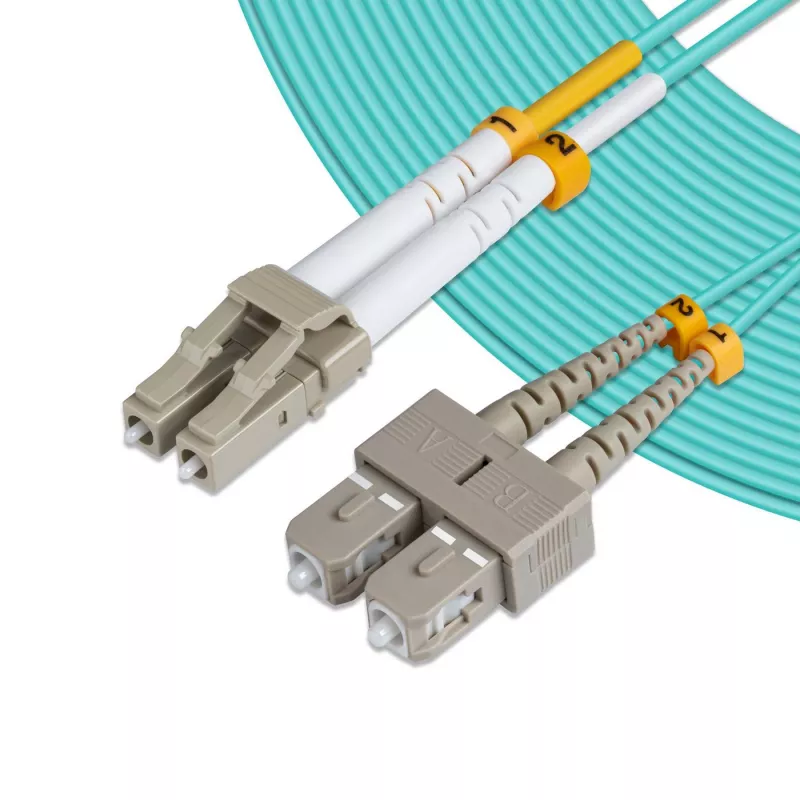

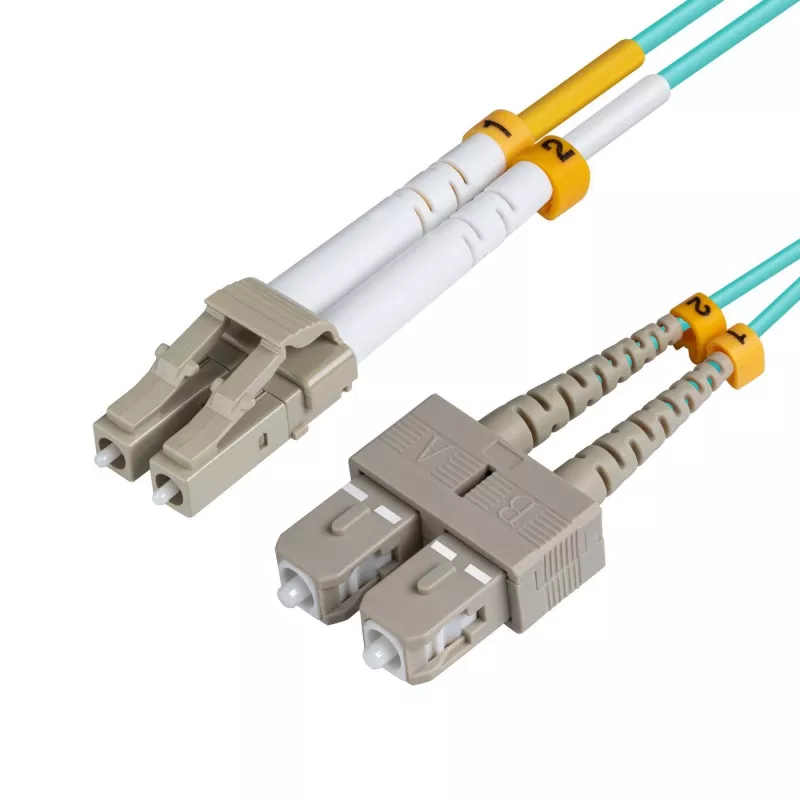

The Microconnect FIB422010 is a 10 m fibre optic cable with LC and SC connectors designed for high-speed multimode networks. It uses 50/125 µm OM3 bend-insensitive multimode fiber, providing lower attenuation when bent or twisted compared with traditional multimode cables. This full-duplex blue patch cord is suitable for data centers and enterprise environments where reliable 10G/40G/100G Ethernet connections are required.

Advantages

OM3 50/125 µm multimode fiber offers improved performance for short-range high-bandwidth links and is the preferred specification for 10G Ethernet. The bend-insensitive construction reduces signal loss during installation and maintenance, while LSZH jacket material complies with common industry standards (IEC, EIA/TIA, Telcordia). The combination of LC and SC connectors ensures compatibility with a wide range of transceivers and equipment.

Suitable for

• 10G SR and 10G LRM connections
• SFP+ transceivers and other multimode transceivers
• 10G/40G/100G Ethernet links in data centers
• Short-range multimode backbone and horizontal cabling

Key specifications

• Cable length: 10 m
• Fiber type: OM3 multimode, 50/125 µm
• Connectors: LC to SC (full duplex)
• Jacket: LSZH
• Colour: Blue
• Weight: 0.08 kg
• Brand / MPN / EAN: MicroConnect / FIB422010 / 5705965890158

How to use

Verify compatible transceivers and ports (LC and SC) before connection. Route the cable avoiding sharp bends and tight bundling; the OM3 bend-insensitive fiber tolerates bending better than traditional multimode fibers but standard good-practice routing maintains optimal performance. Plug the LC connector into the LC port and the SC connector into the SC port, ensuring secure mating; observe connector dust protection during handling and clean connectors if required.

Recommendations

Use this OM3 LC–SC patch cord for short to medium distance multimode links within racks or between network equipment in data centers and enterprise installations. Maintain bend radii above manufacturer recommendations when installing and store connectors capped until use to avoid contamination.
