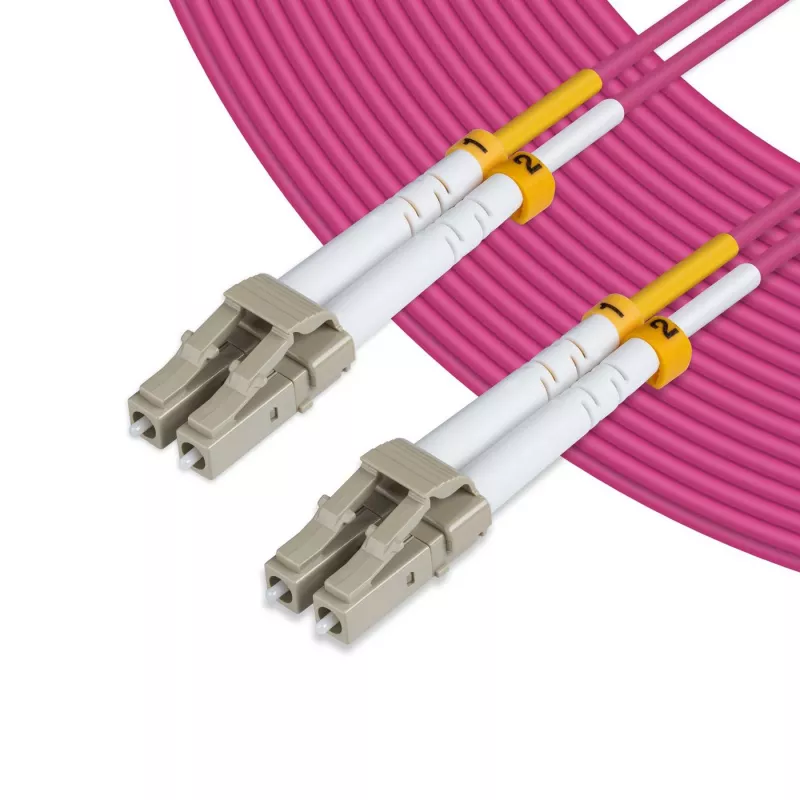

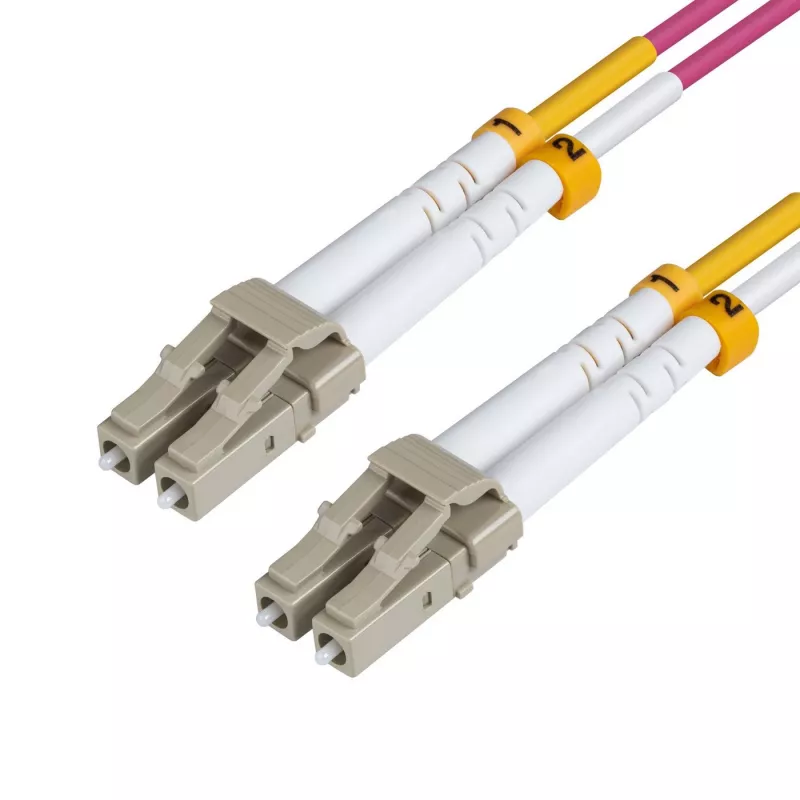

Microconnect FIB440425P cable InfiniBand/fibra óptica 25 m LC violeta

The Microconnect FIB440425P is a 25 m OM4 multimode fibre optic patch cord with LC connectors on both ends. With a 50/125 µm core/cladding structure and full-duplex LC–LC termination, this violet cable is intended for high-speed network links such as 10G, 40G and 100G Ethernet and for use with SR and BIDI transceivers including QSFP+ and SFP+ modules. The OM4 specification makes it suitable for short-reach high-bandwidth connections commonly found in data centres and enterprise networks.

Advantages

This OM4 patch cord provides higher modal bandwidth and improved performance over lower-grade multimode fibres for 10G/40G/100G applications. The LC–LC connectors enable compact duplex connections, while the violet jacket simplifies identification in dense cabling environments. The cable uses LSZH jacket material and is manufactured to industry standards (Telcordia, EIA/TIA or IEC), supporting reliable interoperability with common transceivers.

Suitable for

• 40G BIDI SR and 10G SR links
• QSFP+, SFP+ transceiver connections
• Data centre and server room interconnects
• High-density rack and patch panel installations

Key specifications

• Cable length: 25 m
• Fibre type: OM4 multimode (50/125 µm)
• Connectors: LC to LC, duplex
• Jacket colour: Violet
• Jacket material: LSZH
• Weight: 0.09 kg
• Manufacturer part number (MPN): FIB440425P
• EAN: 5712505245934

How to use

Inspect connector endfaces before installation and clean if required. Route the OM4 LC–LC patch cord between compatible duplex ports on transceivers, switches or patch panels, avoiding tight bends and excessive pulling force. Ensure connectors are fully inserted and latched. For multimode links, verify link polarity and duplex pairing when connecting LC duplex interfaces.

Recommendations

Use this 25 m OM4 LC–LC patch cord for short-reach high-bandwidth links in data centres and enterprise networks. Maintain bend radius guidelines, keep connectors capped when not in use, and follow transceiver vendor guidelines for multimode fibre connections to ensure optimal performance.
