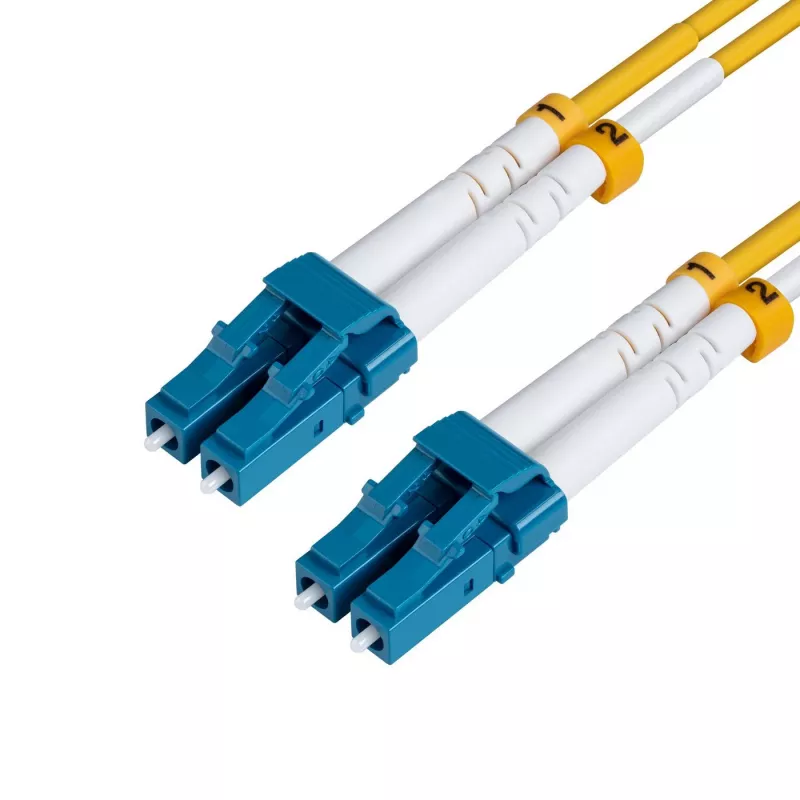

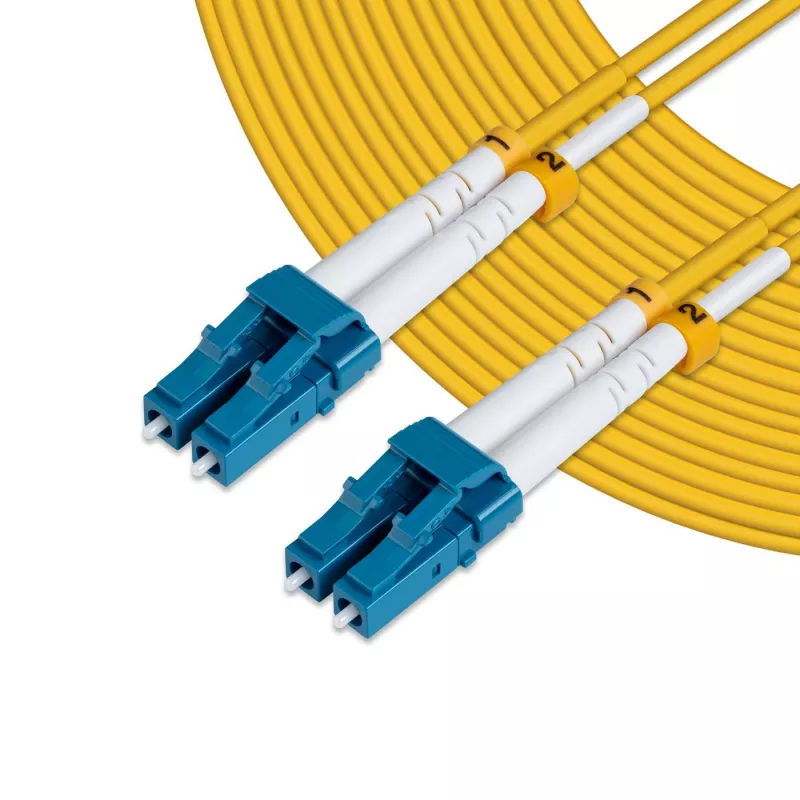

Microconnect FIB441007 cable InfiniBand/fibra óptica 7 m LC amarillo

The Microconnect FIB441007 is a 7 m single-mode fibre optic cable with LC-to-LC connectors and OS2 fibre type. Designed for enterprise networks, telecom rooms, server farms and cloud storage networks, this yellow patch cord provides reliable transmission for 1G/10G/40G/100G Ethernet links and other applications requiring fibre jumpers. The OS2 single-mode fibre has a 9 µm core diameter and the cable is manufactured with LSZH jacket materials that conform to common industry standards.

Advantages

This LC OS2 patch cord offers long-distance transmission capability, low attenuation and compatibility with standard LC interfaces. The 7 m length and yellow colour help with identification and cable management in racks and telecom rooms. The LSZH jacket reduces smoke and toxic emissions in the event of a fire and the construction conforms to IEC, EIA/TIA or Telcordia requirements.

Suitable for

• Enterprise network backbones and horizontal cabling
• Telecom rooms and server farms
• Cloud storage networks and data centre fibre links
• Connecting 1G/10G/40G/100G Ethernet equipment

Key specifications

• Length: 7 m
• Connector type: LC — LC
• Fibre type: OS2 (single mode), core diameter 9 µm
• Colour: Yellow
• Jacket: LSZH
• Weight: 0.06 kg

How to use

Inspect connector end-faces before installation and clean if required. Route the cable through cable trays or fibre ducts, avoiding tight bends below the manufacturer’s minimum bend radius. Plug LC connectors into matching LC ports on transceivers, patch panels or switches until they click into place. Ensure proper strain relief at both ends and label the cable for easy identification.

Recommendations

For optimal performance, use the Microconnect FIB441007 with compatible LC single-mode transceivers and observe maximum transmission distances: up to 10 km at 1310 nm and up to 40 km at 1550 nm. Store and handle the cable to prevent contamination of connector end-faces and avoid excessive bending or mechanical stress.
