Microconnect FIB442002 Cable InfiniBand/fibra óptica 2 m LC azul

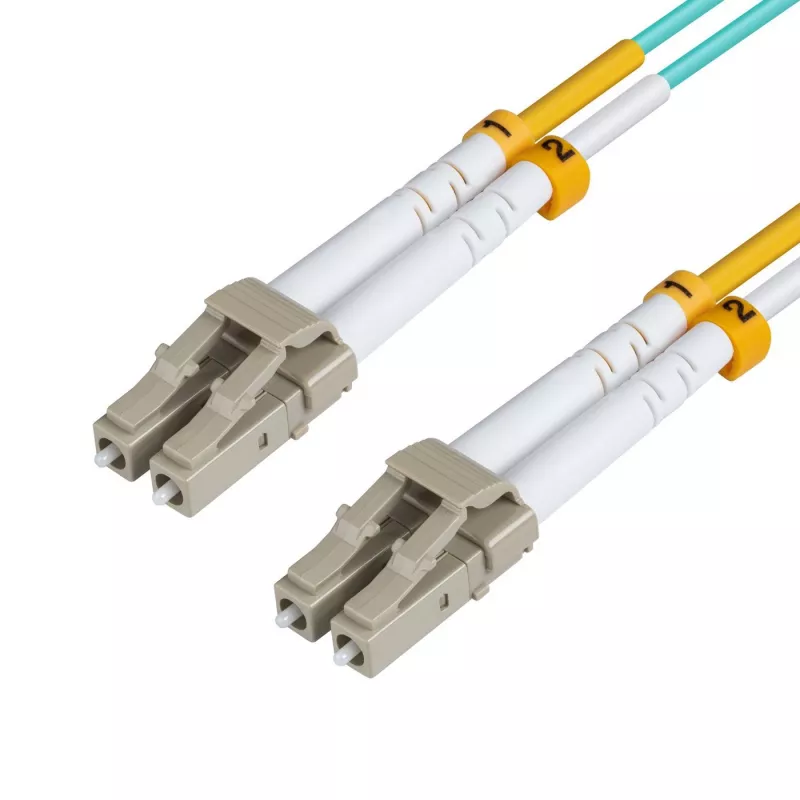

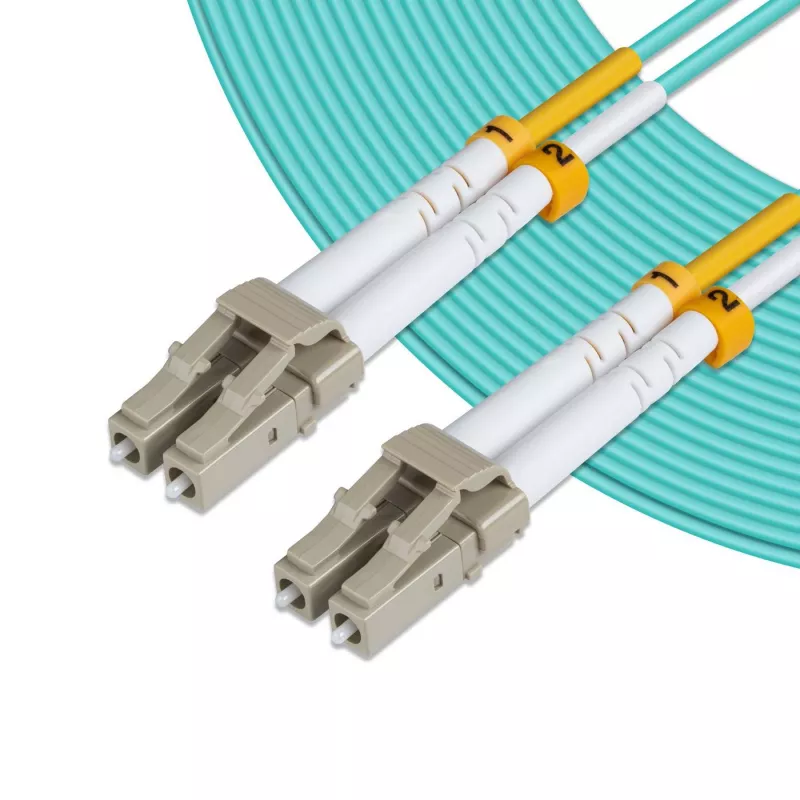

The MicroConnect FIB442002 is a 2 m OM3 multimode fiber optic patch cable with LC connectors on both ends. It uses 50/125 µm bend-insensitive multimode fiber and LSZH jacket, designed for high-speed short-range links such as 10G SR, 10G LRM and SFP+ transceivers, supporting 10G/40G/100G Ethernet and InfiniBand applications. The blue cable provides a standard colour coding for easy identification in network installations.

Advantages

This LC–LC OM3 patch cable offers reduced attenuation when bent or twisted compared with traditional multimode fibers, improving installation and maintenance flexibility in racks and patch panels. The OM3 specification and 50 µm core diameter provide compatibility with typical 10G Ethernet transceivers and SFP+ modules, while the LSZH jacket meets common safety standards for indoor deployments.

Suitable for

• 10G SR and 10G LRM connections
• SFP+ transceiver links and InfiniBand short-range links
• 10G/40G/100G Ethernet patching in data centres and server rooms
• Patch panels and horizontal fibre runs requiring LC–LC termination

Key specifications

• Manufacturer: MicroConnect
• Model / MPN: FIB442002
• EAN: 7331990077165
• Cable type: OM3 multimode, bend-insensitive
• Core/cladding: 50/125 µm
• Connectors: LC to LC, duplex
• Length: 2 m
• Jacket: LSZH
• Colour: Blue
• Weight: 0.02 kg

How to use

Route the cable between LC ports on transceivers, patch panels or equipment, ensuring LC connectors are aligned and fully inserted until the latch clicks. Avoid sharp bends beyond the manufacturer’s recommended minimum bend radius and secure the cable in trays or ties to prevent stress at connector ends. For duplex links, maintain correct polarity by matching the transmit and receive channels between ends.

Recommendations

Use this OM3 LC–LC patch cable for short-range, high-speed links in indoor network environments; store and install in accordance with bend-radius limits and LSZH handling guidelines to preserve performance and safety.
