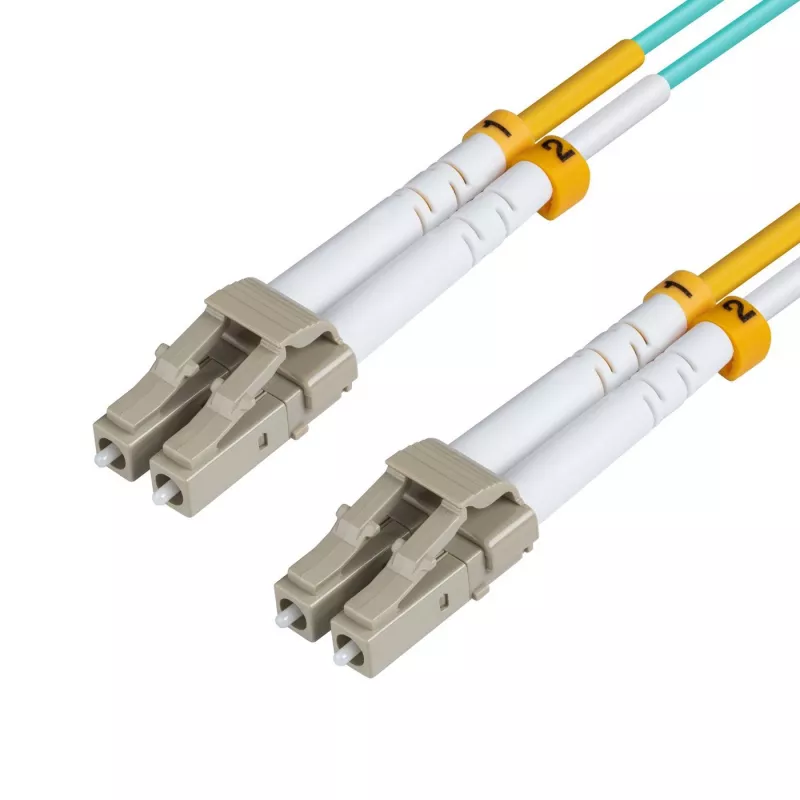

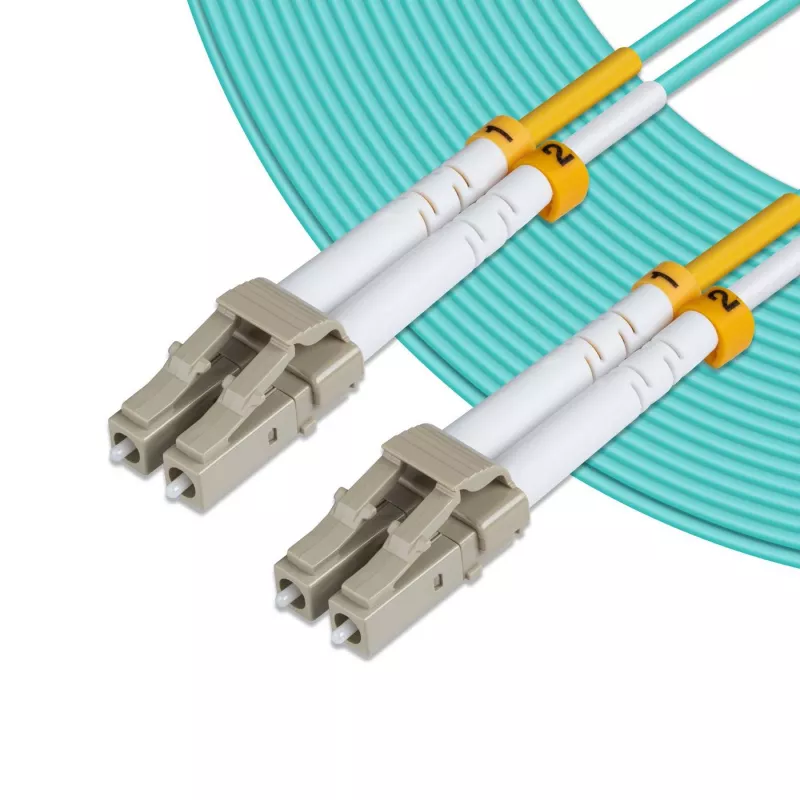

Microconnect FIB442150 Cable InfiniBand/fibra óptica 150 m LC azul

The MicroConnect FIB442150 is a 150 m OM3 multimode fibre optic cable with LC connectors on both ends. It uses a 50/125 µm core/cladding structure and is bend-insensitive, which reduces attenuation when the cable is bent or twisted and simplifies installation and maintenance. The cable supports full-duplex links and is suitable for high-speed Ethernet applications such as 10G, 40G and 100G connections when used with compatible transceivers.

Advantages

Bend-insensitive OM3 multimode construction lowers signal loss in tight routing and crowded cable paths. LC-to-LC termination provides compact, widely used connectors for SFP+ and similar transceivers. The LSZH jacket meets common industry fire safety standards and the 150 m length covers typical rack-to-rack and room-to-room runs in data centres and enterprise networks.

Suitable for

• 10G SR and 10G LRM links
• SFP+ transceiver connections
• 40G and 100G links using parallel multimode schemes
• Rack-to-rack and horizontal fibre runs in data centres and server rooms

Key specifications

• Length: 150 m
• Fiber type: OM3 multimode, 50/125 µm
• Connectors: LC — LC
• Jacket: LSZH
• Color: Blue
• Weight: 1 kg

How to use

Unpack the MicroConnect FIB442150 and route the cable along the planned path avoiding sharp bends and excessive tension. Terminate each end into LC ports of the network devices or patch panels, ensuring proper alignment and a clean connector endface. Use appropriate cable management (ducts, trays or ties) to secure the cable and maintain bend radii within manufacturer recommendations for OM3 bend-insensitive fibre.

Recommendations

Check compatibility of transceivers (10G/40G/100G) and follow standard cleaning and inspection procedures for LC connectors before mating. Maintain minimum bend radius and avoid pulling on connectors; store excess length coiled with gentle loops to prevent microbends.
