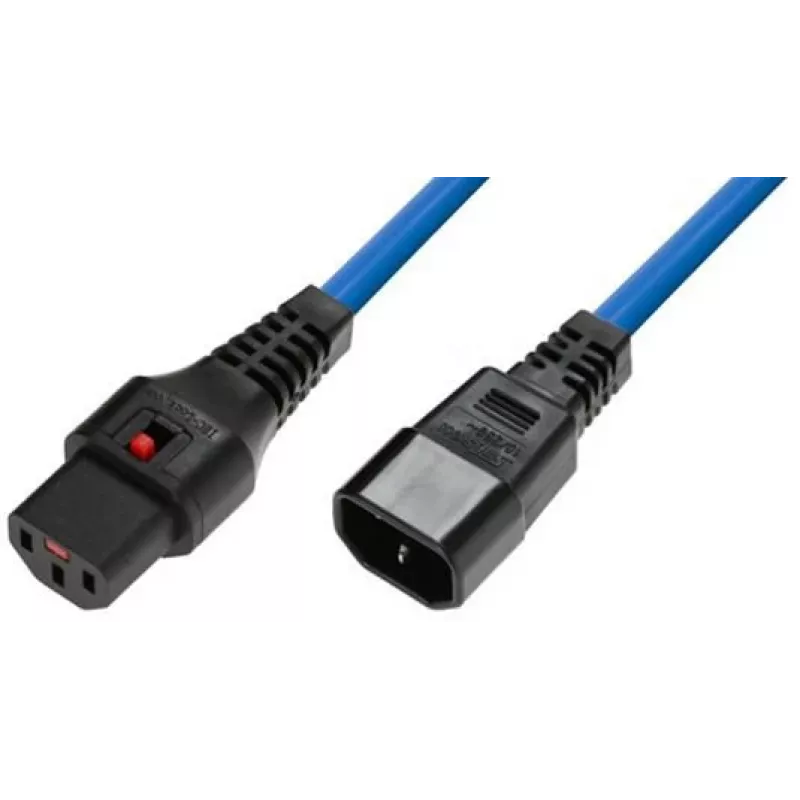

Microconnect MC-C13C14LOCK-2MB cable de alimentación azul 2 m conector hembra C13 conector hembra C14

The MicroConnect MC-C13C14LOCK-2MB power cable is a 2 m blue H05VV-F cable with C13 and C14 couplers, rated for 230 V AC and up to 10 A. Suitable for standard IEC C13/C14 power connections, the cable uses 1.00 mm² conductors and is designed for reliable mains connections between IT equipment, power distribution units and compatible appliances.

Advantages

The cable combines a compact 2 m length with secure C13 and C14 couplers for easy installation and removal. H05VV-F insulation offers flexibility and basic mechanical protection for indoor use. The blue colour provides clear visual identification in rack or desk environments. Rated for 230 V and 10 A, it meets common office and home equipment power requirements.

Suitable for

• Connecting desktop PCs, monitors and peripherals to mains or PDUs
• Linking servers and network equipment with IEC C13/C14 sockets
• Temporary power setups in offices, server rooms and workstations

Key specifications

• Connector 1: C13 coupler
• Connector 2: C14 coupler
• Cable length: 2 m
• Cable type: H05VV-F (3G), conductor cross-section: 1.00 mm²
• Voltage rating: 230 V AC
• Current rating: 10 A
• Colour: Blue
• Weight: 0.2 kg

How to use

Ensure both the cable and the devices are rated for the specified voltage and current. Insert the C13 coupler into the device’s IEC inlet and connect the C14 coupler to the power source or PDU. Route the cable to avoid sharp bends and pinching; keep it away from heat sources and liquids. For locking models, engage the lock according to the equipment’s instructions to secure the connection.

Recommendations

Use the cable indoors in dry environments and avoid overloading beyond 10 A. Inspect the cable periodically for damage and replace it if insulation or connectors are worn or compromised.
