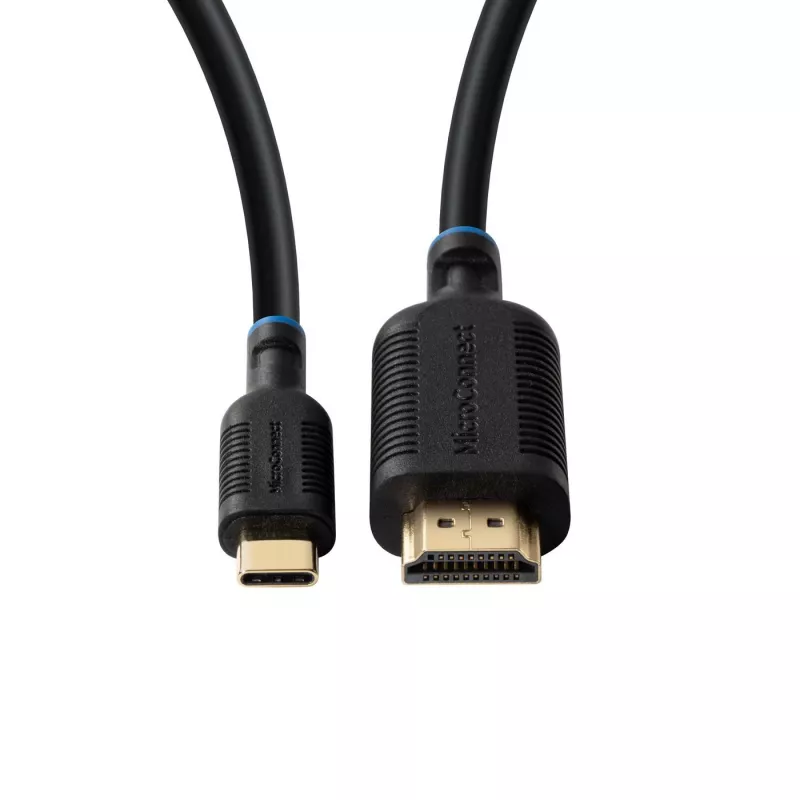

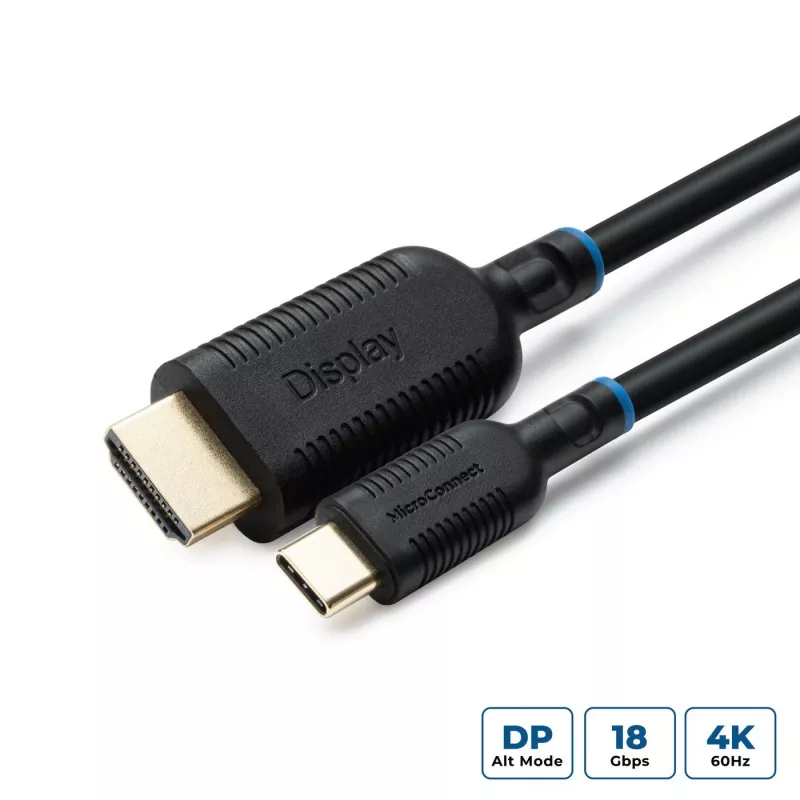

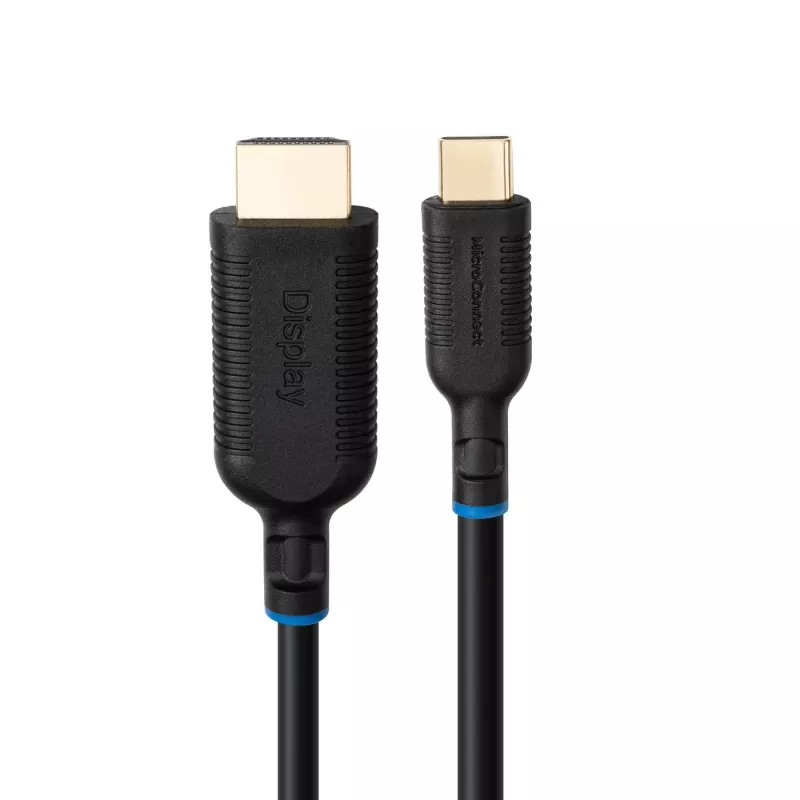

Microconnect MC-USBCHDMI2 Adaptador de cable de vídeo 2 m USB Type-C HDMI negro

The Microconnect MC-USBCHDMI2 is a 2 m USB Type-C to HDMI video cable adapter designed to connect USB-C (with DP Alt Mode) or Thunderbolt 3 devices to HDMI displays. The cable supports HDR10 and is compatible with HDMI 2.0b equipment, offering up to 4K at 60 Hz (3840x2160) and up to 18 Gbps bandwidth. With 4:4:4 chroma subsampling and backward compatibility with earlier HDMI versions, the cable delivers accurate color reproduction and high-definition video and audio over a compact 4.8 mm diameter, 40 g design.

Advantages

This USB-C to HDMI cable supports HDR10 for improved contrast and color, delivers 4K@60Hz resolution with up to 18 Gbps bandwidth, and provides 4:4:4 chroma sampling for precise color per pixel. It is compatible with HDMI 2.0b and backward compatible with older HDMI versions. The 2 m length and lightweight construction make it portable and easy to route between devices.

Suitable for

• Connecting laptops with USB-C (DP Alt Mode) to HDMI monitors and TVs
• Connecting smartphones or tablets with USB-C output to HDMI displays
• Presentations, video playback and streaming to external displays
• Home entertainment setups requiring 4K@60Hz and HDR support

Key specifications

• Model: Microconnect MC-USBCHDMI2
• Length: 2 m
• Connectors: USB Type-C to HDMI
• Supported resolution: up to 4K@60Hz (3840x2160)
• Bandwidth: up to 18 Gbps
• Chroma subsampling: 4:4:4
• HDR support: HDR10
• HDMI standard compatibility: HDMI 2.0b (backward compatible)
• Cable diameter: 4.8 mm
• Weight: 40 g
• Certifications: RoHS compliant

How to use

Connect the USB Type-C plug to a source device that supports DP Alt Mode or Thunderbolt 3, and insert the HDMI connector into the HDMI input of a monitor, TV or projector. Select the appropriate HDMI input on the display. The cable carries both video and audio when the source device and display support those functions. No additional drivers are normally required; if the display does not appear, check the source device's display output settings and ensure DP Alt Mode is enabled.

Recommendations

For best results, use the cable with devices that explicitly support USB-C DP Alt Mode or Thunderbolt 3 and with HDMI 2.0b-capable displays. Avoid tight bends near the connectors and keep the connector contacts clean. If using long adapter chains or signal extenders, verify compatibility to maintain 4K@60Hz and HDR10 performance.
