Microconnect MC-UTP6A05G Cable de red verde 5 m Cat6a U/UTP (UTP)

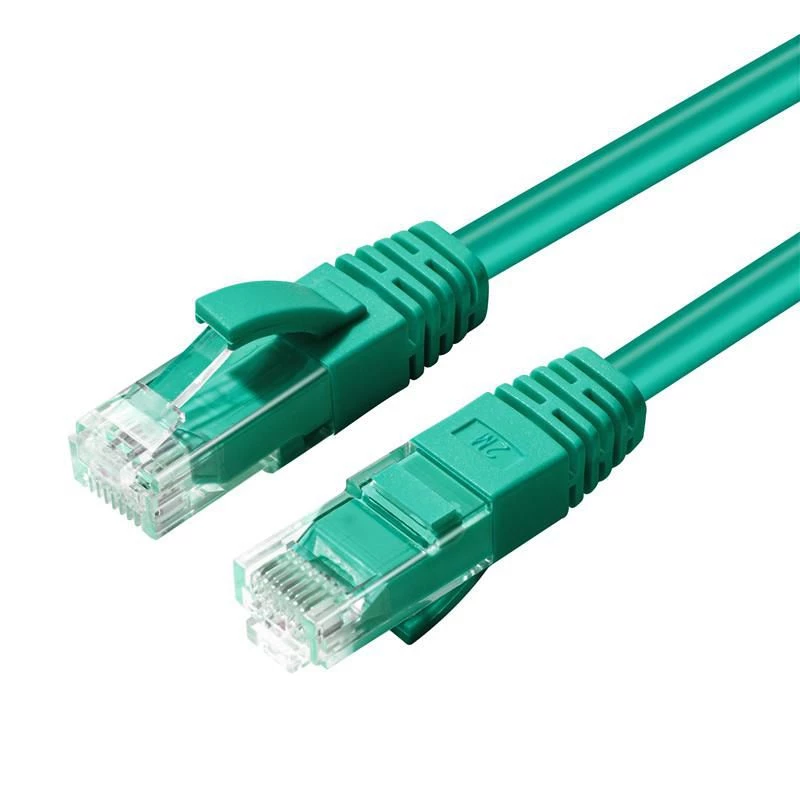

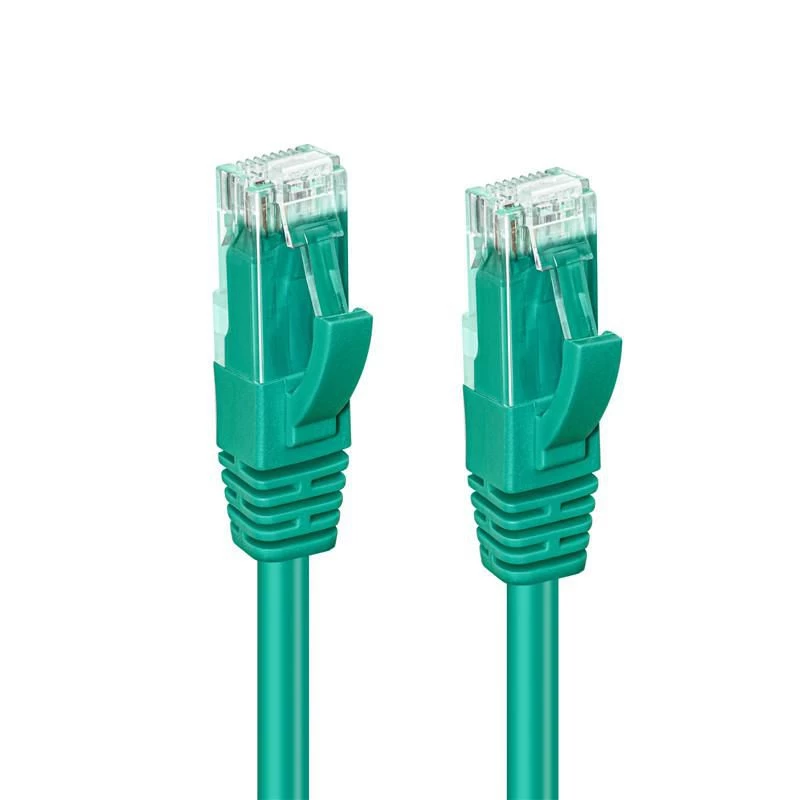

The MicroConnect MC-UTP6A05G is a 5 m Cat6a networking cable with RJ-45 connectors, designed for environments that require 10 Gbit/s throughput and wide bandwidth. It uses U/UTP construction and gold-plated contacts to maintain reliable signal transmission and improved connector durability. The cable features 50µ" gold-plated RJ45 contacts, a reinforced latch protector to reduce the risk of clip breakage, and meter markings on the boot for quick length identification.

Advantages

The cable supports data rates up to 10000 Mbit/s and bandwidth up to 500 MHz, providing stable high-speed connections for demanding applications. Gold-plated contacts improve conductivity and resist corrosion. The latch protector extends connector life, and meter markings on the boot make installation and cable management easier. The green jacket helps visually identify the cable in dense cabling runs.

Suitable for

• 10G Ethernet links in server rooms and data centers
• High-bandwidth applications such as video streaming and large file transfers
• Office and home network installations requiring Cat6a performance
• Structured cabling where cable identification and reliable connectors are important

Key specifications

• Length: 5 m
• Standard: Cat6a
• Connector: RJ-45 to RJ-45
• Data rate: up to 10000 Mbit/s (10 Gbit/s)
• Bandwidth: up to 500 MHz
• Shielding: U/UTP
• Contacts: 50µ" gold-plated RJ45
• Colour: Green
• Weight: 0.1 kg
• MPN: MC-UTP6A05G
• EAN: 5704174258384

How to use

Connect one RJ-45 end to a network device (switch, router, network card) and the other to the corresponding port on the remote device. Ensure connectors are fully inserted until the latch clicks into place. Use the meter markings on the boot to confirm cable length when routing and organizing cables. Avoid sharp bends and excessive tension to maintain performance and longevity.

Recommendations

The cable is intended for indoor network installations. For best performance, avoid running the cable parallel to high-voltage power lines and maintain bends above the minimum bend radius specified for Cat6a cabling. Inspect connectors before use and replace the cable if the latch or contacts are damaged.
