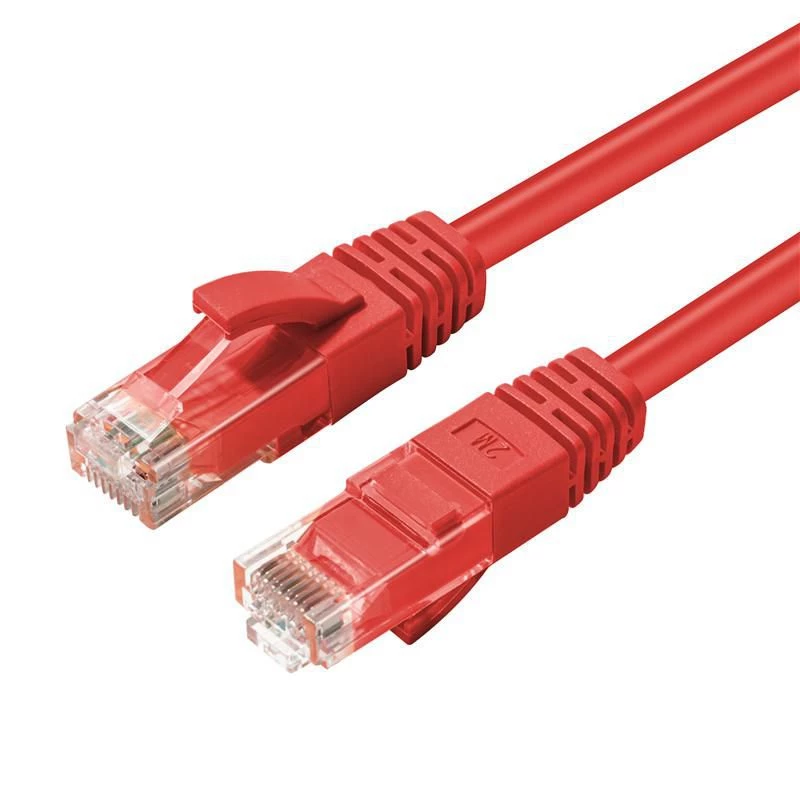

Microconnect MC-UTP6A15R Cable de red rojo 15 m Cat6a U/UTP (UTP)

The MicroConnect MC-UTP6A15R is a Cat6a U/UTP networking cable with a length of 15 m designed for high-speed data transmission. It supports up to 10 Gbit/s and bandwidths up to 500 MHz, uses RJ-45 connectors on both ends and features gold-plated contacts. The cable’s red colour and meter markings on the boot make it easy to identify in installations.

Advantages

This Cat6a patch cable offers 10Gbit performance and reduced interference thanks to its U/UTP construction. The 50µ" gold-plated RJ45 contacts improve contact reliability and signal transfer, while latch protection reduces the risk of clip breakage. Meter marking on the boot allows quick identification of cable length during installation and maintenance.

Suitable for

• 10G Ethernet connections in data centres and server rooms
• High-bandwidth LAN installations for offices and multimedia workstations
• Structured cabling where clear colour-coding and length identification are required

Key specifications

• Model: MicroConnect MC-UTP6A15R
• Standard: Cat6a (U/UTP)
• Maximum data rate: up to 10000 Mbit/s (10Gbit/s)
• Bandwidth: up to 500 MHz
• Length: 15 m
• Connectors: RJ-45 — RJ-45
• Contacts: 50µ" gold-plated
• Colour: Red
• Weight: 0.408 kg

How to use

Connect one RJ-45 end to your network device (switch, router or network card) and the other end to the corresponding device or patch panel. Ensure connectors are fully inserted until the latch snaps into place. Use the meter markings on the boot to confirm cable length when routing or documenting your cabling. Avoid tight bends and keep the cable away from strong electromagnetic sources to maintain optimal performance.

Recommendations

For best results in 10G installations, run Cat6a cabling in separate pathways from high-power or large electrical equipment and avoid stretching the cable beyond its bend radius. Use colour-coded cables like the red MC-UTP6A15R to simplify identification in dense cable runs.
