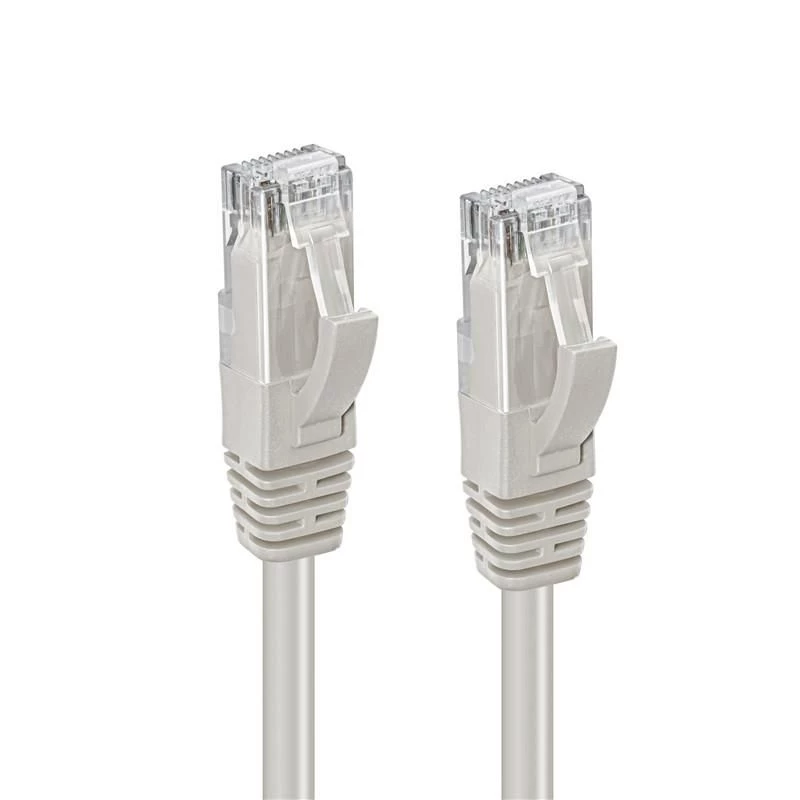

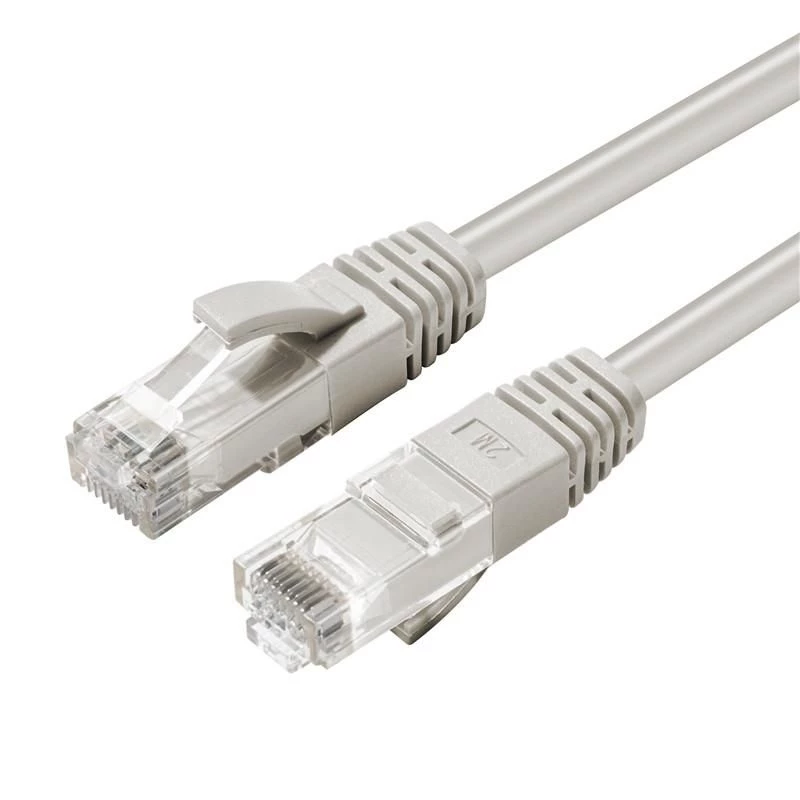

Microconnect MC-UTP6A30 Cable de red gris 30 m Cat6a U/UTP (UTP)

The MicroConnect MC-UTP6A30 is a Cat6a U/UTP patch cable with a length of 30 meters, designed for high-performance wired networks. It supports data rates up to 10000 Mbit/s and bandwidth up to 500 MHz, features RJ45 connectors with 50µ gold-plated contacts for improved connectivity, latch protection to reduce the risk of broken clips, and meter markings on the boot for easy length identification.

Advantages

The cable meets Cat6a specifications for 10Gbit performance and reduced crosstalk thanks to U/UTP construction. Gold-plated 50µ RJ45 contacts increase contact reliability and corrosion resistance. Latch protection helps prevent accidental damage to the connector clip, and printed meter markings on the boot simplify installation and cable management.

Suitable for

• High-speed LAN connections up to 10 Gbit/s
• Data centers and server rooms requiring long cable runs
• Office networks, switches and patch panels
• Environments where clear cable length identification is needed

Key specifications

• Standard: Cat6a
• Length: 30 m
• Connectors: RJ-45 — RJ-45
• Data rate: up to 10000 Mbit/s
• Bandwidth: up to 500 MHz
• Shielding: U/UTP (unshielded overall, unshielded pairs)
• Contacts: 50µ gold-plated
• Colour: Grey
• Weight: 1 kg

How to use

Connect one RJ45 connector to your network device (switch, router or network card) and the other to the remote device or patch panel. Ensure connectors are fully inserted until the latch clicks. Route the cable to avoid sharp bends and electromagnetic interference sources. Use the meter markings on the boot to confirm the required length during installation.

Recommendations

For optimal performance, avoid running the cable parallel to high-voltage power lines and maintain bend radii greater than the cable diameter. Verify network settings and test the link speed after installation to ensure 10Gbit performance where required.
