Microconnect PE0191410 Cable de alimentación negro 1 m conector hembra C19 conector hembra C14

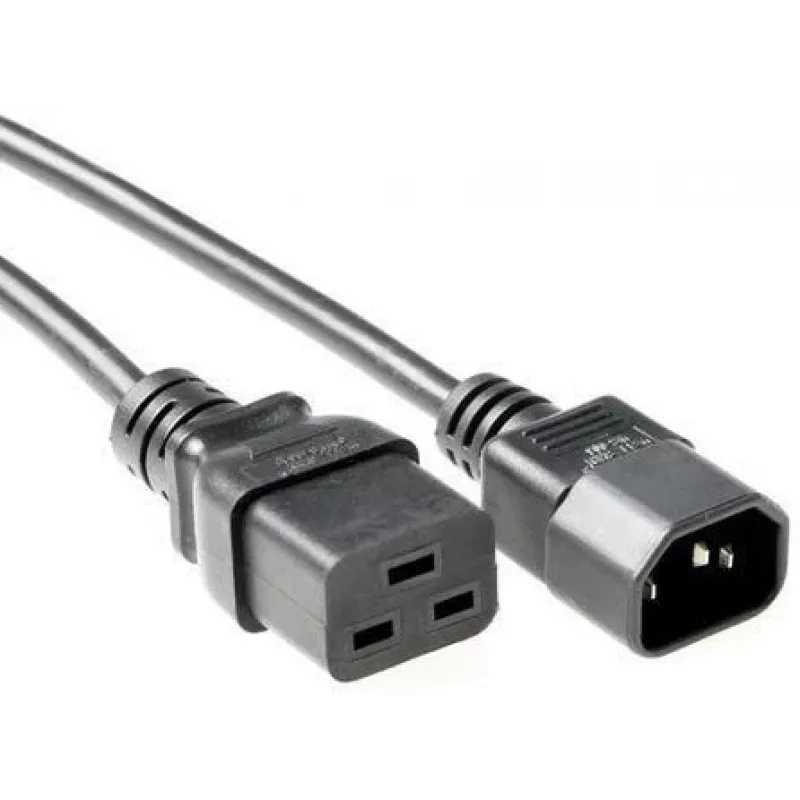

The Microconnect PE0191410 is a 1 m extension power cable with a C19 coupler on one end and a C14 coupler on the other. It converts a C20 plug to a C14 interface so the cable can be connected to a C13 outlet on a PDU or UPS. The cable is H05VV-F type, rated for up to 250 V and 16 A, and comes in black.

Advantages

This cable provides a simple, compact solution for adapting C20-to-C14 connections without modifying existing equipment. Its H05VV-F construction offers flexibility for routing in rack or office environments, and the 1 m length balances reach with minimal cable clutter. Rated for 250 V and 16 A, it supports common server and power distribution use cases.

Suitable for

• Connecting C20-equipped power cords to C13 outlets on PDUs or UPS units
• Server racks and data centre power distribution
• Office equipment requiring a C14 inlet

Key specifications

• Model: Microconnect PE0191410
• Connector 1: C19 coupler
• Connector 2: C14 coupler
• Cable length: 1 m
• Cable type: H05VV-F
• Rated voltage/current: 250 V, 16 A
• Colour: Black
• Weight: 0.048 kg

How to use

Plug a C20 male power cord into the C19 coupler end of the Microconnect PE0191410 and connect the C14 coupler end to a device or power inlet that accepts a C13 plug. Ensure both ends are fully seated and that the connected equipment is powered off while making the connection. Verify that the supply does not exceed 250 V or 16 A.

Recommendations

Use this adapter cable in dry, indoor environments. Avoid sharp bends and tension on the cable, route it away from heat sources, and periodically inspect connectors for wear. Do not exceed the specified voltage and current ratings.
