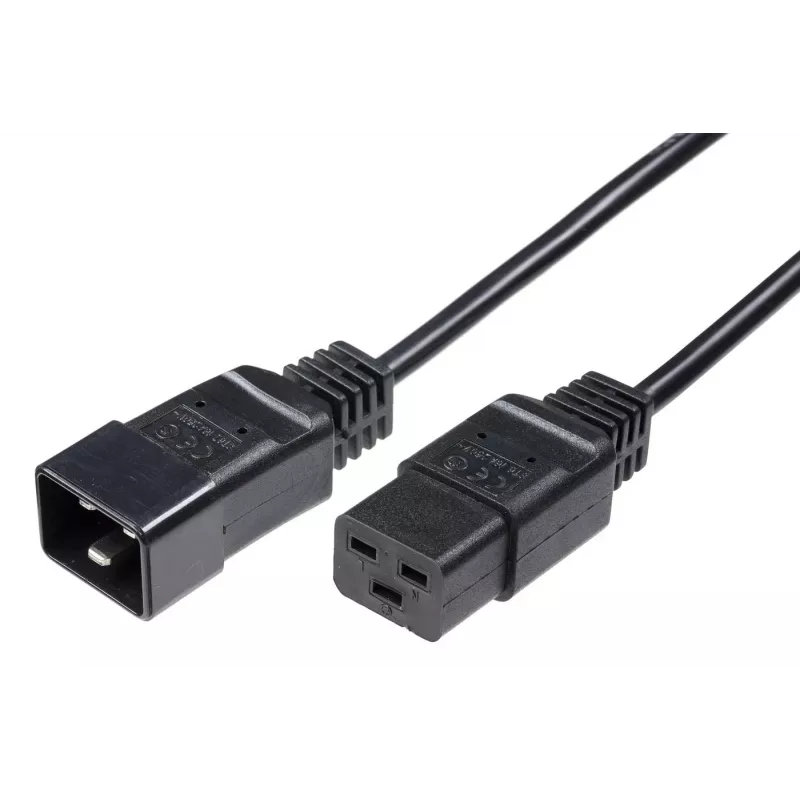

Microconnect PE141510 Cable de alimentación negro 1 m conector hembra C20 conector hembra C19

The MicroConnect PE141510 power cable is a 1 m extension lead with a C20 connector on one end and a C19 connector on the other. It is built from H05VV-F cable and rated for up to 250 V and 16 A, providing a compact and flexible solution to extend power connections between equipment and a PDU or UPS.

Advantages

This extension power cord offers a standardized IEC C20 to C19 connection for secure mating with compatible PDUs and UPS units. The H05VV-F cable construction ensures flexibility and adequate durability for routing in racks or along equipment surfaces, while the 1 m length keeps connections tidy without excess slack. The black colour provides a discreet appearance in professional and home environments.

Suitable for

• Extending power connections between servers or networking devices and a PDU
• Connecting UPS output to equipment requiring a C19 inlet
• Temporary or permanent installations in data cabinets and server rooms

Key specifications

• Connector 1: C20 coupler
• Connector 2: C19 coupler
• Cable length: 1 m
• Cable type: H05VV-F
• Rated voltage: 250 V
• Rated current: 16 A
• Colour: Black
• Weight: 0.15 kg
• Brand: MicroConnect, MPN: PE141510, EAN: 5704327169482

How to use

Inspect both the C20 and C19 connectors for damage before use. Align the C20 end with the matching C20 inlet and the C19 end with the C19 inlet on the target device or PDU/UPS, then insert firmly until fully seated. Avoid sharp bends and secure the cable to prevent strain on the connectors. Follow the equipment manufacturer's guidelines for safe connection and load limits.

Recommendations

Use this cable only within its rated limits (250 V, 16 A) and in dry, indoor environments. Do not modify the cable or connectors. Replace the cable if insulation or connectors show signs of wear or damage.
