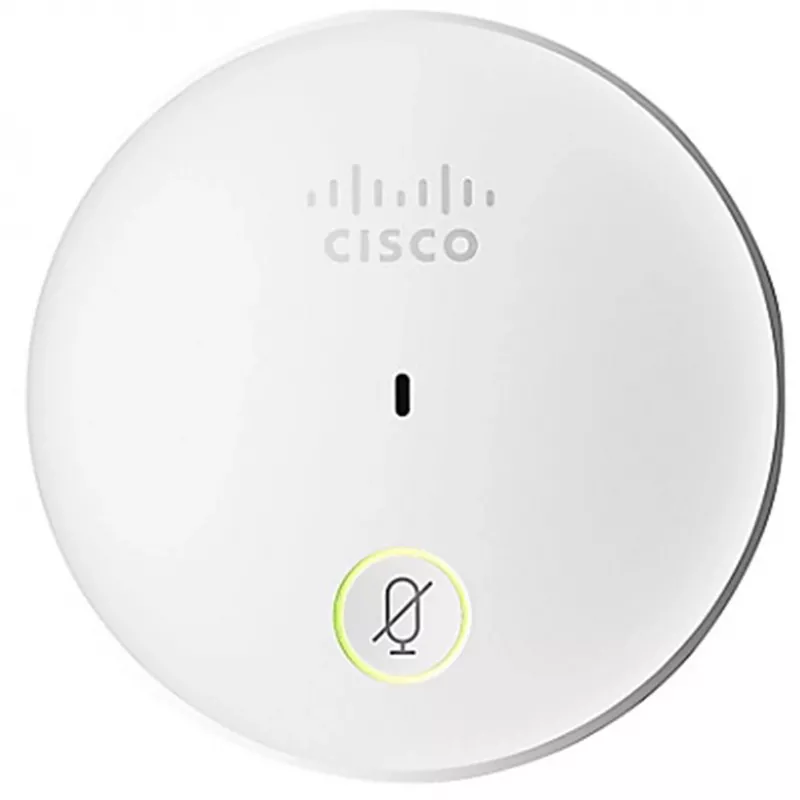

Micrófono de mesa Cisco CS-MIC-TABLE-J — micrófono para teléfono IP con cable, 80–20.000 Hz, conector Hirose de 4 pines, blanco

Cisco CS-MIC-TABLE-J is a wired table microphone engineered for use with compatible IP phones and conferencing systems. The microphone offers omnidirectional pickup with a frequency response of 80–20,000 Hz and connects via a 4-pin Hirose jack plug. The compact white capsule (diameter 6.39 cm, height 10.9 mm, weight 126 g) is suitable for installation on fixed tables or discreet placement through ceilings in huddle rooms, conference rooms and reception desks. The unit is intended for voice-optimised audio capture in small to large collaboration spaces and includes a 90-day limited liability warranty. Origin: China.

Advantages

The wired table microphone provides consistent omnidirectional audio pickup tailored for voice, supporting clear capture across a wide frequency range from 80 Hz to 20 kHz. Its 4-pin Hirose interface ensures a secure, manufacturer-compatible connection to supported IP phones. The compact and low-profile capsule design enables unobtrusive placement on tables or flush through ceilings, while the white finish integrates with typical office and meeting-room interiors. Build characteristics target reliable hands-free conferencing and reduced setup complexity when paired with compatible Cisco devices.

Suitable for

• Huddle rooms and small meeting rooms where a single omnidirectional microphone suffices
• Medium to large conference rooms when used with compatible phone systems and additional microphones
• Reception desks or service counters requiring unobtrusive voice capture
• Fixed tables or built-in ceiling placements for permanent conferencing setups

Key specifications

• Connection type: wired, 4-pin Hirose jack plug
• Frequency response: 80–20,000 Hz
• Pickup pattern: omnidirectional
• Capsule dimensions: diameter 6.39 cm, height 10.9 mm
• Weight: 126 g
• Finish color: white
• Intended mounting: table-top or ceiling flush placement
• Warranty: 90-day limited liability

How to use

Position the microphone on a fixed table near the usual speaking area or install it through an appropriate ceiling opening to achieve discreet placement. Connect the unit to a compatible IP phone or conferencing device using the 4-pin Hirose jack plug; ensure the mating connector on the host device is designed for this microphone interface. After connection, verify device settings and audio levels on the phone or conferencing system and run an audio check before meetings. Keep the capsule free of obstructions and avoid placing it directly beside noisy equipment that may introduce interference.

Recommendations

For best voice clarity, place the microphone centrally on the table and ensure it faces the general speaking area. When covering larger rooms, combine multiple Cisco table microphones or complementary ceiling microphones as recommended by the conferencing system documentation. Regularly inspect the connector and cable for secure seating and minimal wear; follow the host device manual for firmware and audio configuration to maintain optimal performance.
