Microscopio compacto Nexcope NE610 DO-8600, hasta 1000 aumentos, iluminación LED

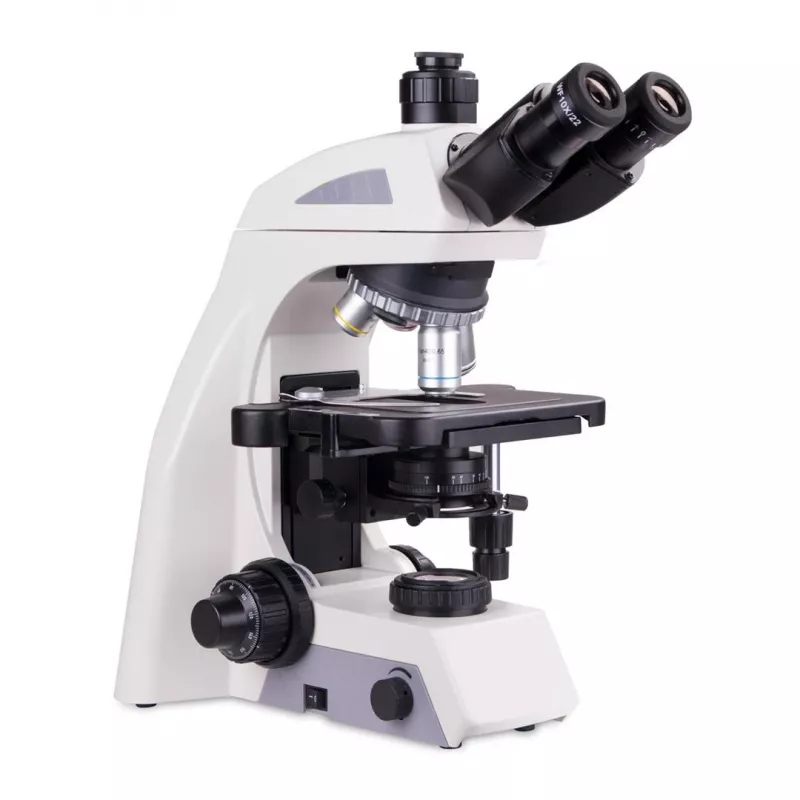

Nexcope NE610 DO-8600 is a compact compound microscope that delivers up to 1000× magnification with integrated LED illumination. Designed for routine laboratory work, educational environments and hobby microscopy, it enables clear observation of prepared slides and small specimens. The instrument combines a sturdy mechanical structure with a straightforward optical system to provide consistent, bright lighting and sufficient detail for classroom demonstrations, student practicals and amateur investigations.

Advantages

The Nexcope NE610 offers up to 1000× magnification with a built-in LED light source that provides even illumination and low power consumption. Its compact form factor and practical controls make it easy to transport and operate in classroom or home environments. The microscope supports observation of stained and unstained specimens on standard slides, and the optical system is optimized for routine tasks where reliable, repeatable imaging is required.

Suitable for

• School and university teaching laboratories
• Student practical exercises and demonstrations
• Hobby and amateur microscopy
• Basic routine laboratory observations of prepared slides

Key specifications

• Optical type: compound microscope for transmitted light observation
• Maximum magnification: up to 1000×
• Illumination: integrated LED light source with adjustable intensity
• Stage: mechanical or plain stage suitable for standard microscope slides
• Focus mechanism: coarse and fine focusing controls for precise specimen adjustment
• Power: low-voltage LED power (mains or battery depends on model variant)
• Intended use: routine laboratory, educational and hobby applications

How to use

Place a prepared slide on the stage and secure it with the stage clips or mechanical stage controls. Select the lowest-power objective and use the coarse focus to bring the specimen into view, then switch to a higher-power objective and refine the image with the fine focus. Adjust the LED illumination intensity to achieve comfortable contrast and clarity for the specimen. When finished, lower the stage, remove the slide, switch off the illumination and store the microscope in a dry, dust-free place.

Recommendations

Use immersion oil only with objectives specified for oil immersion and follow proper cleaning procedures after each session. Clean optical surfaces with lens paper and a suitable cleaning solution; avoid touching lenses with fingers. For educational settings, provide basic training on focusing, slide handling and LED intensity adjustment to ensure safe and effective use.
