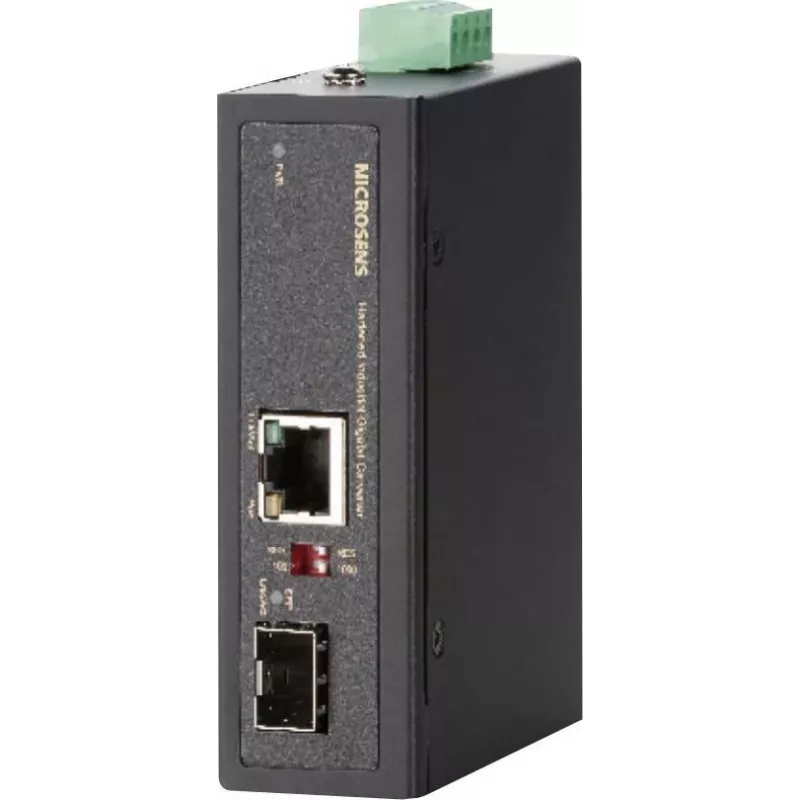

MICROSENS MS657099X Convertidor de medios industrial, 2x RJ45 + 2x SFP, 100M/1G, carril DIN, -40 a 75 °C

Operate in extreme conditions with the MICROSENS MS657099X industrial media converter, engineered for reliable network extension from -40°C to +75°C. This unmanaged converter features two independent conversion channels: one 10/100Base-TX RJ45 to 100Base-X SFP slot, and one 10/100/1000Base-T RJ45 to 1000Base-X SFP slot.

Overview

The MS657099X is a rugged industrial media converter designed for DIN rail mounting. Its IP30 metal housing protects against harsh environments, while redundant 12-57 VDC power input ensures continuous operation. With two SFP slots supporting 100 Mbps and 1 Gbps fiber connections, it offers flexible fiber uplink options for industrial networks.

What stands out

• Wide operating temperature range: -40°C to +75°C
• Dual conversion channels: 100 Mbps and 1 Gbps
• Redundant power input: 12-57 VDC
• DIN rail mountable with IP30 metal housing
• Unmanaged plug-and-play operation

Technical details

• Ethernet Port 1: 1x 10/100Base-TX RJ45
• Fiber Port 1: 1x 100Base-X SFP slot
• Ethernet Port 2: 1x 10/100/1000Base-T RJ45
• Fiber Port 2: 1x 1000Base-X SFP slot
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z
• Mounting: DIN Rail
• Housing: IP30 Metal

Our verdict

A versatile and rugged media converter for industrial applications requiring both Fast Ethernet and Gigabit fiber connectivity in a single compact unit.
