MicroTouch 10.1" Open-Frame 1280x800 VGA/HDMI/DP 10 puntos PCAP 500 Nits con soporte - HDMI

With a 500-nit brightness and 10-point projected capacitive touch, this 10.1-inch open frame display delivers crisp, responsive interaction even in bright commercial environments. The 1280x800 resolution and 16:10 aspect ratio provide ample detail for kiosks, POS terminals, and industrial control panels.

Overview

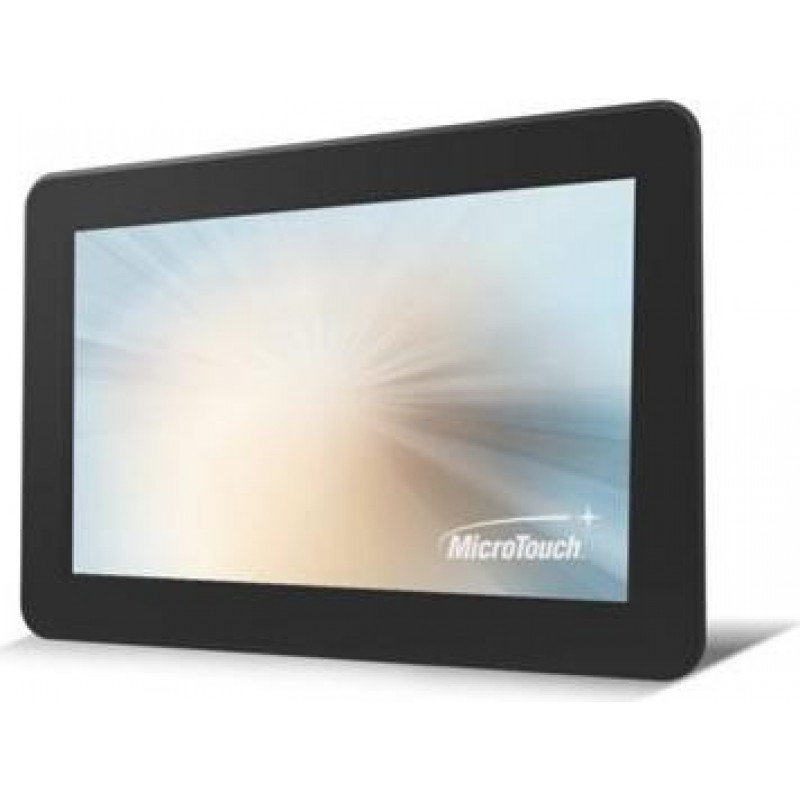

The MicroTouch OF-100P-A2 is a 10.1-inch open frame touchscreen monitor engineered for seamless integration into self-service kiosks, industrial automation, and interactive digital signage. Its open frame design allows easy mounting into custom enclosures, while the included bracket simplifies installation. The display features a projected capacitive (PCAP) touch panel with 10-point multi-touch, enabling intuitive gestures such as pinch, zoom, and rotate. Connectivity is versatile with HDMI, DisplayPort, and VGA inputs, ensuring compatibility with a wide range of host systems. The USB touch interface provides plug-and-play functionality without the need for additional drivers on most operating systems.

What stands out

• High brightness of 500 nits ensures readability in bright ambient light.
• 10-point PCAP touch supports advanced multi-user and multi-touch applications.
• Multiple video inputs (HDMI, DP, VGA) offer flexible integration options.
• Open frame design with bracket mount allows easy installation into kiosks and enclosures.
• LED backlight provides energy efficiency and long lifespan.
• Wide operating temperature range suitable for industrial environments.

Technical details

• Display size: 10.1 inches
• Native resolution: 1280 x 800
• Aspect ratio: 16:10
• Panel type: LCD with LED backlight
• Touch technology: Projected capacitive (PCAP)
• Multi-touch: 10 points
• Brightness: 500 cd/m²
• Video inputs: HDMI, DisplayPort, VGA
• Touch interface: USB
• Mounting: Bracket (included)
• Recommended use: Industrial, commercial, kiosk, POS

Our verdict

The MicroTouch OF-100P-A2 combines high brightness, responsive multi-touch, and flexible connectivity in a durable open frame design, making it an excellent choice for demanding interactive applications.
