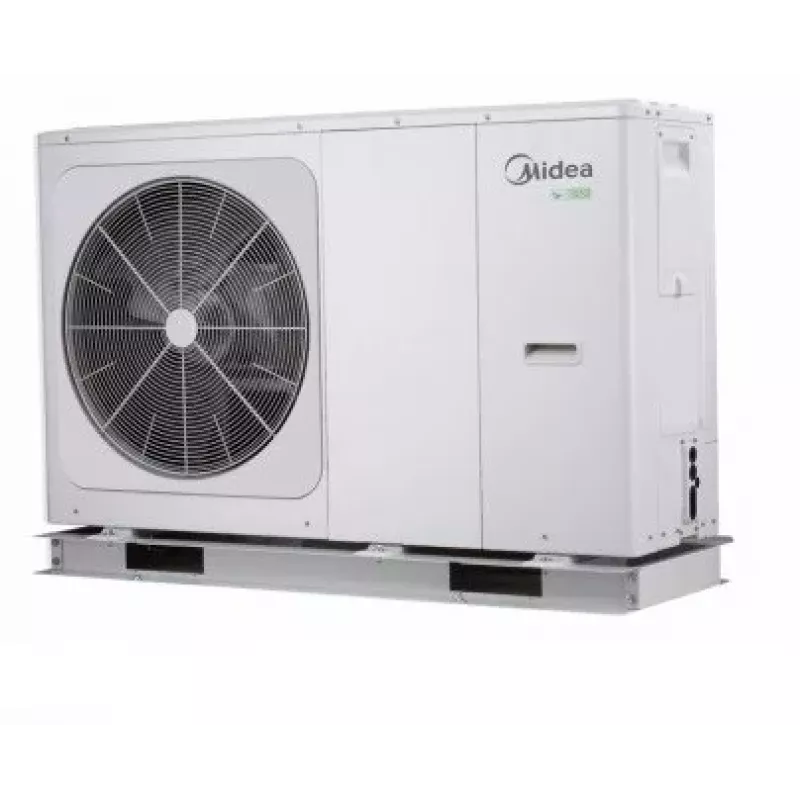

Midea M-Thermal 16kW Monobloc bomba de calor, trifásica R32

The Midea M-Thermal 16kW Monobloc Air-to-Water Heat Pump is a high-efficiency heating and cooling solution designed for residential and light commercial applications. Utilizing R32 refrigerant and a twin rotary DC inverter compressor, this unit delivers exceptional performance with a seasonal coefficient of performance (SCOP) of up to 4.80 at 35°C. The monobloc design integrates all components in a single outdoor unit, simplifying installation and reducing indoor space requirements.

Advantages

This heat pump offers outstanding energy efficiency, achieving A+++ energy class at 35°C and A++ at 55°C. It operates reliably in extreme conditions, with a heating operating range from -25°C to 35°C and a maximum water outlet temperature of 60°C. The built-in 9 kW electric backup heater ensures consistent performance even in very low ambient temperatures. Integrated Wi-Fi module and wired controller provide convenient remote management and monitoring.

Suitable for

• Residential heating and cooling systems
• Underfloor heating, radiators, and fan coil units
• Domestic hot water production (with compatible tank)
• Retrofit projects replacing old boilers or electric heaters

Key specifications

• Heating Capacity (A7/W35): 16.0 kW
• Cooling Capacity (A35/W18): 15.0 kW
• Power Supply: 3-Phase, 400V, 50Hz
• Refrigerant: R32 (charge 2.6 kg)
• SCOP at 35°C: 4.80 (A+++), at 55°C: 3.45 (A++)
• Sound Pressure Level: 49 dB(A) heating, 50 dB(A) cooling (at 1m)
• Built-in Backup Heater: 9 kW (3x3kW)
• Water Pipe Connection: G1"
• Dimensions (WxDxH): 1100 x 460 x 800 mm
• Weight: 105 kg

Recommendations

For optimal performance, ensure proper sizing and installation by a qualified professional. The unit requires a 3-phase electrical supply and adequate space for airflow around the outdoor unit. Regular maintenance, including cleaning of filters and inspection of refrigerant levels, will prolong the lifespan and efficiency of the system.
