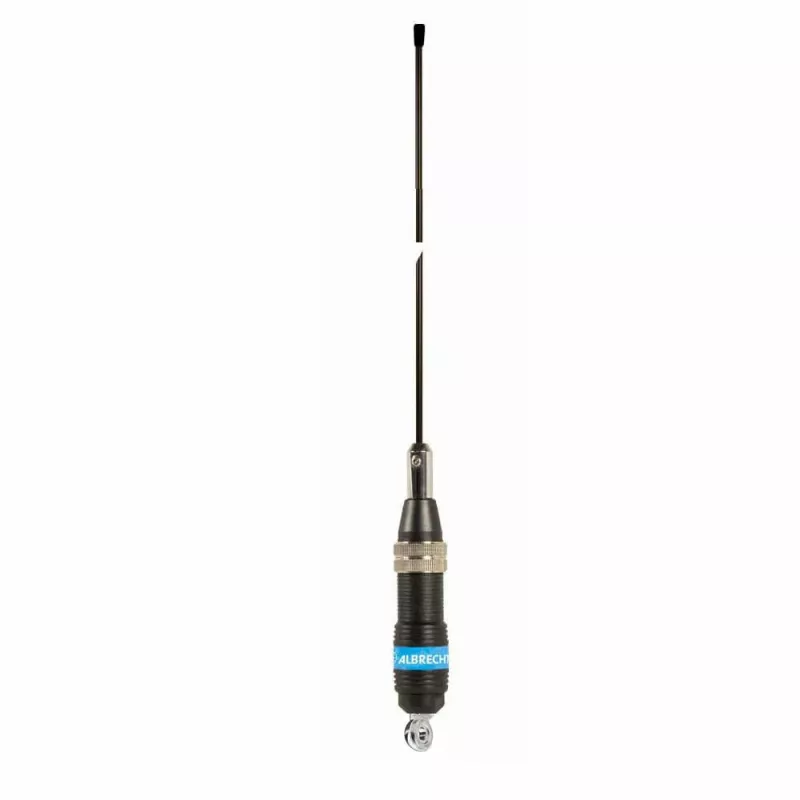

Midland Albrecht Racer 90 Antena CB, 1/4 de onda cargada, 110 cm, montaje con base DV, 26-28 MHz 67131

The Albrecht Racer 90 stands out among mobile CB antennas with its 1/4 wave loaded design, delivering efficient signal radiation in a manageable 110 cm length. Unlike full-size quarter-wave whips that can exceed 2.5 metres, this base-loaded antenna uses a stainless steel radiator to achieve resonance on the 26-28 MHz CB band while remaining practical for vehicle mounting.

Highlights

• 1/4 wave loaded design for compact size without sacrificing performance
• Stainless steel radiator for durability and corrosion resistance
• DV-foot mount for secure installation on compatible brackets
• Handles up to 100 W continuous / 200 W peak power
• Low SWR of less than 1.2:1 for efficient transmission

In daily use

Designed for mobile CB radio operation, the Racer 90 provides a stable 50-ohm impedance and vertical polarisation, ensuring consistent communication. The base is constructed from high-impact plastic and metal, finished in black with a silver whip, blending discreetly with vehicle aesthetics. Tuning is achieved by adjusting the whip length, allowing fine-tuning for optimal SWR on your specific installation.

Full specifications

• Antenna type: 1/4 wave loaded
• Frequency range: 26-28 MHz (CB band)
• Antenna length: 110 cm
• Mount type: DV-foot mount
• Max power handling: 100 W continuous, 200 W peak
• Impedance: 50 Ohm
• SWR: < 1.2:1 (typical)
• Radiator material: Stainless steel
• Polarisation: Vertical
• Gain: 0 dBd (approx.)
• Application: Mobile CB radio
• Connector type: DV-foot (requires compatible mount/cable)
• Design principle: Base loaded
• Base material: High-impact plastic / metal
• Colour: Black (base), silver (whip)
• Cable included: No
• Tuning: Adjustable via whip length

Final note

For best results, pair the Racer 90 with a quality DV-foot mount and coaxial cable (sold separately) and tune the whip length to achieve the lowest SWR on your desired channel.
