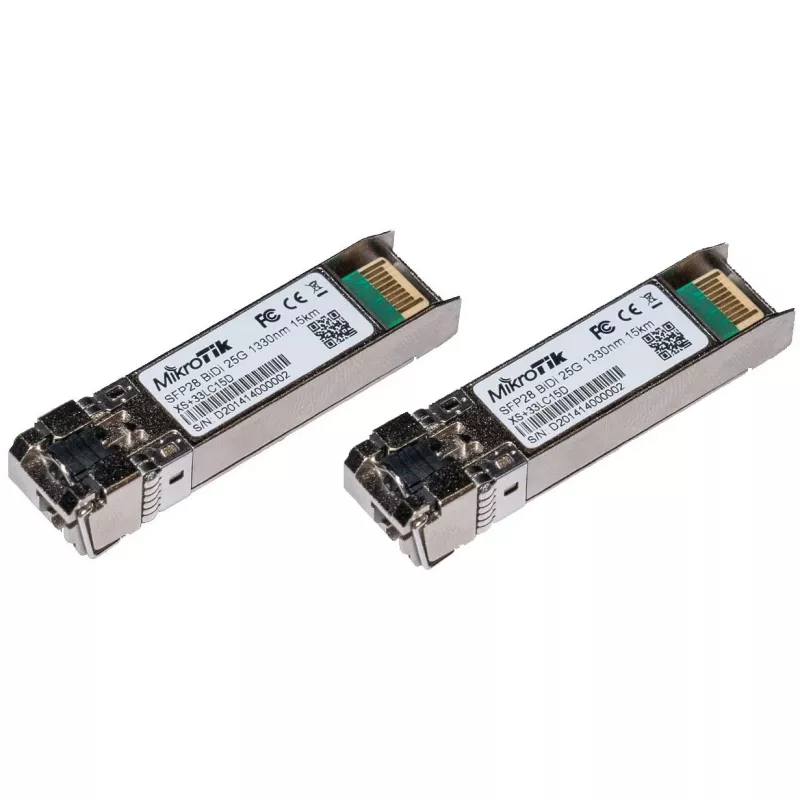

Mikrotik SFP/SFP+/SFP28 BiDi XS+2733LC15D 25000 Mbit/s LC 1330 nm

The Mikrotik XS+2733LC15D is a BiDi SFP transceiver kit containing two modules that support 1.25G, 10G and 25G (SFP/SFP+/SFP28) operation with DDM. The paired modules provide a bidirectional single-fiber link with a maximum data rate of 25 Gbit/s and a reach of up to 15 km over single-mode fiber using LC connectors at 1330 nm.

Advantages

This BiDi SFP kit enables high-speed links over a single optical fiber, reducing cabling requirements and simplifying deployment. Support for SFP, SFP+ and SFP28 ensures compatibility with a wide range of network equipment. Digital Diagnostic Monitoring (DDM) provides real-time status information for easier maintenance and monitoring.

Suitable for

• Upgrading metro or campus links to 25 Gbit/s where fiber count is limited
• Connecting switches, routers or transceivers with LC ports over single-mode fiber
• Applications requiring up to 15 km single-fiber reach at 1330 nm

Key specifications

• Manufacturer: MikroTik
• Model / MPN: XS+2733LC15D
• Form factor: BiDi SFP (pair of modules)
• Supported rates: 1.25G / 10G / 25G
• Maximum data transfer rate: 25000 Mbit/s
• Wavelength: 1330 nm
• Connector: LC
• Maximum reach: up to 15 km (single-mode fiber, single-fiber bidirectional)
• DDM: supported

How to use

Install one module in each paired SFP/SFP+/SFP28 port on the two devices to be connected. Use single-mode fiber with LC connectors and a single strand carrying bidirectional signals; ensure the correct orientation of Tx/Rx where applicable. Verify link LEDs and monitor DDM values via the host equipment to confirm proper operation and link quality.

Recommendations

Use the modules as a matched pair and ensure both ends support the intended data rate (25G for maximum throughput). Test compatibility with your switch or router firmware and keep spare modules for maintenance to minimize downtime.
