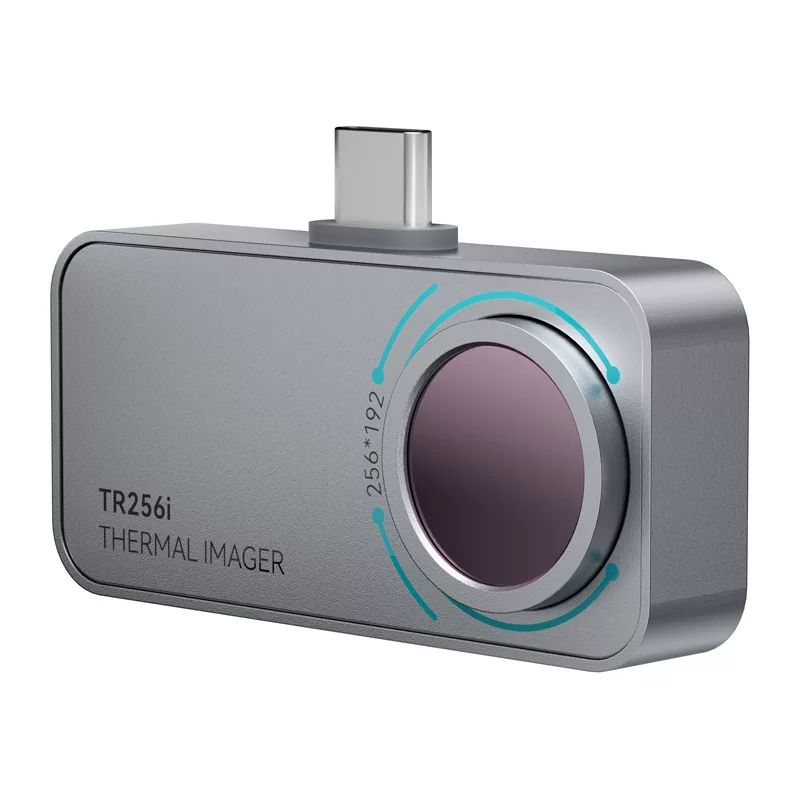

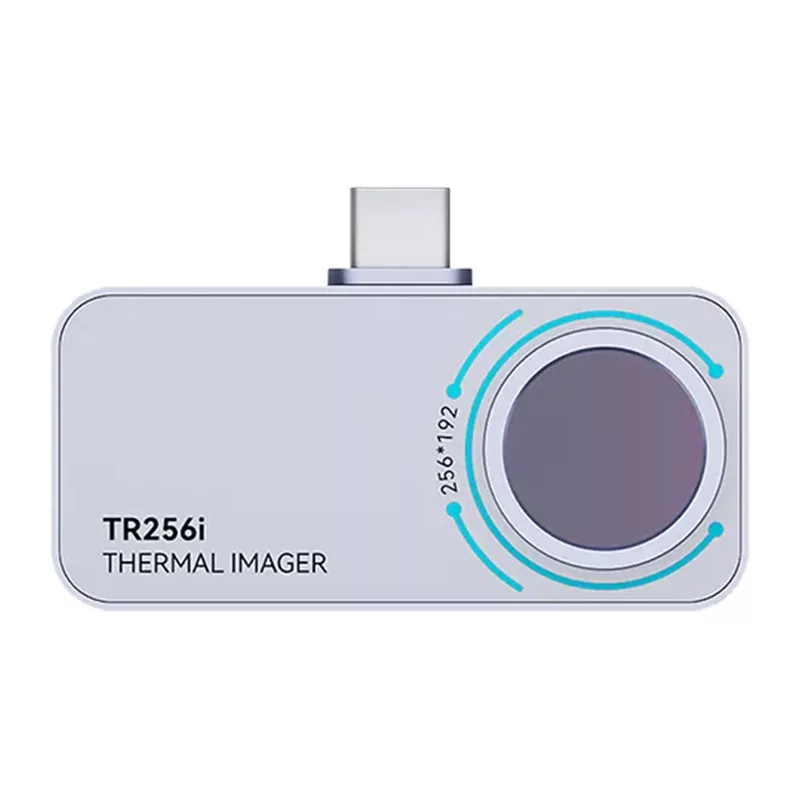

Mileseey TR256i mini cámara termográfica USB-C resolución IR 256x192

The Mileseey TR256i is a compact USB-C thermal camera designed for professionals who need quick and accurate temperature measurements on the go. With a 256x192 infrared resolution and 12μm pixel pitch, it delivers clear thermal images directly to your Android smartphone or tablet via USB-C OTG connection. The camera features a wide temperature range from -20°C to 550°C, making it suitable for electrical inspections, HVAC diagnostics, building maintenance, and more.

Advantages

Portable and lightweight design, easy to carry in a pocket. No battery required – powered directly from the host device via USB-C. Fast 25Hz frame rate for real-time thermal video. Adjustable emissivity from 0.01 to 1.00 ensures accurate measurements on various surfaces. Six color palettes (Iron Red, Rainbow, White Hot, Black Hot, etc.) help highlight temperature differences.

Suitable for

• Electrical panel and circuit board inspections
• HVAC system troubleshooting
• Building envelope and insulation analysis
• Automotive diagnostics
• Preventive maintenance

Key specifications

• Infrared Resolution: 256x192 pixels
• Pixel Pitch: 12μm
• NETD: <50mK (@25°C, F#1.0)
• Temperature Measurement Range: -20°C to 550°C
• Measurement Accuracy: ±2°C or ±2% (whichever is greater)
• Frame Rate: 25Hz
• Field of View: 56° x 42°
• Spectral Range: 8-14μm
• Interface: USB Type-C
• Compatibility: Android devices with USB-C OTG support
• Emissivity Adjustment: 0.01 to 1.00
• Color Palettes: 6 (Iron Red, Rainbow, White Hot, Black Hot, etc.)
• Focus Mode: Fixed
• Power Supply: USB-C from host device
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -20°C to 60°C
• Software: Dedicated Mileseey Thermal App

Recommendations

For best results, use with a compatible Android device that supports USB-C OTG. Download the Mileseey Thermal app from the Google Play Store to access advanced features like image capture, temperature analysis, and report generation.
