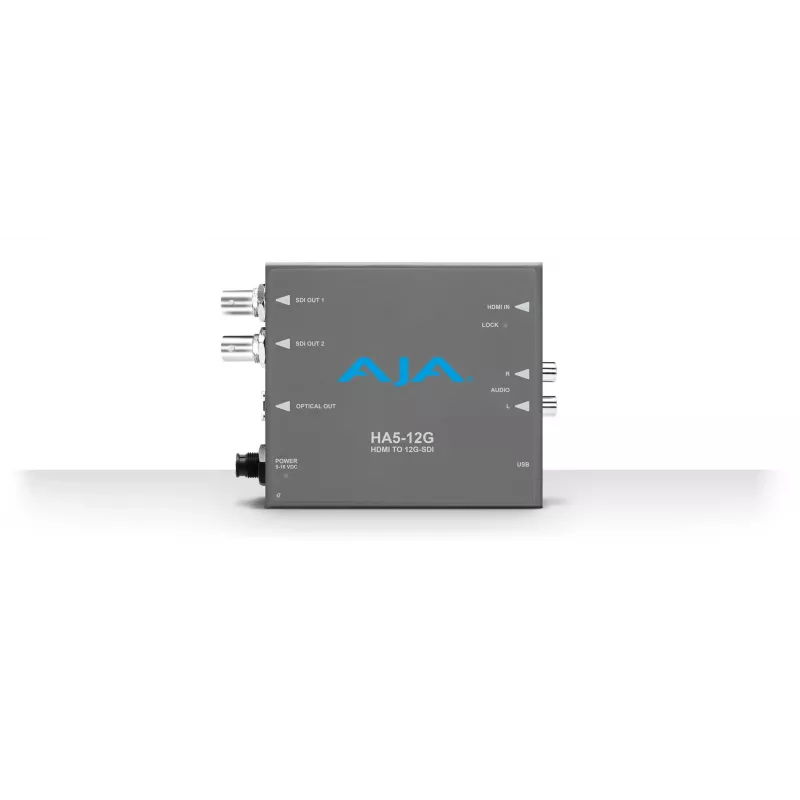

Mini convertidor AJA HA5-12G HDMI a 12G-SDI

The AJA HA5-12G is a compact mini-converter that converts HDMI 2.0 to dual 12G-SDI outputs, supporting video resolutions up to 4096x2160p 60. It enables reliable signal conversion for professional broadcast and post-production workflows.

Advantages

With support for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI standards, the HA5-12G provides flexible connectivity for modern and legacy SDI infrastructures. It features re-clocking and cable equalization to maintain signal integrity over long cable runs. HDR10 and HLG support ensures compatibility with high dynamic range content.

Suitable for

• Broadcast studios and OB vans requiring HDMI to SDI conversion
• Post-production facilities working with 4K/UHD content
• Live event production and AV installations
• Integrating HDMI sources into SDI-based workflows

Key specifications

• Input: 1 x HDMI 2.0 Type A
• Outputs: 2 x 12G-SDI (BNC)
• Supported resolutions: up to 4096x2160p 60
• SDI standards: SMPTE 2082-1, 2081-1, 424M, 292M, 259M
• Audio: 8-channel embedded HDMI audio to SDI
• Configuration: USB 2.0 Mini-B via AJA Mini-Config software
• Power: 5-20V DC, 6W typical consumption

Recommendations

The HA5-12G is ideal for professionals needing a reliable, high-quality HDMI to 12G-SDI conversion in a portable form factor.
