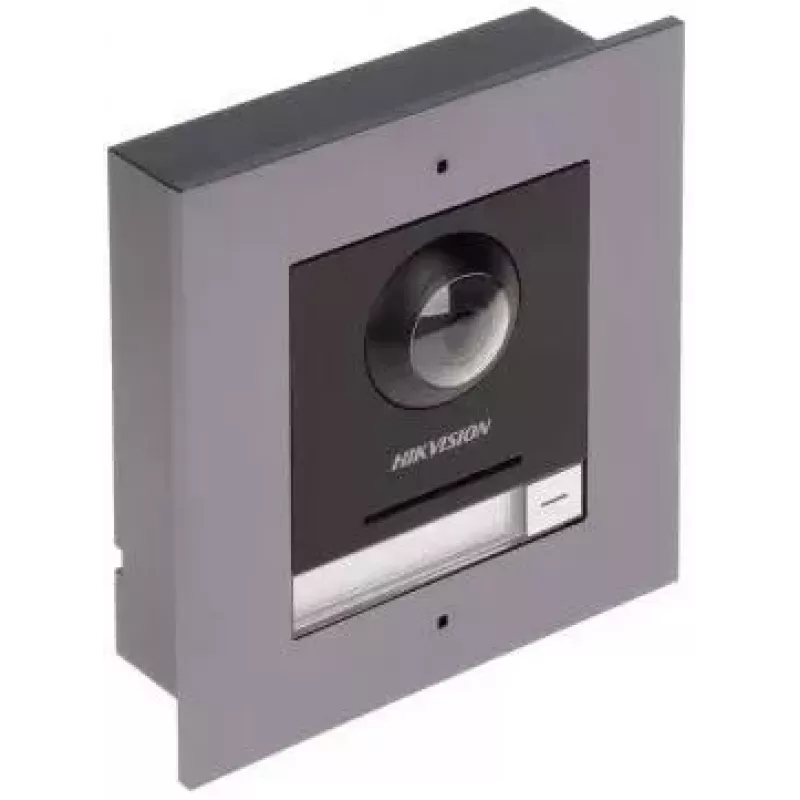

Módulo de cámara para HIKVISION DS-KD8003-IME1(B)/Flush Gate Station

This camera module is a genuine replacement or upgrade component for the HIKVISION DS-KD8003-IME1(B)/Flush gate station. It features a 2 MP HD camera with 1920x1080 resolution, 180° horizontal field of view, and IR night vision up to 3 meters. Designed for flush mounting, it integrates seamlessly with Hikvision 2nd Generation Modular Intercom Systems.

Advantages

High-definition video ensures clear identification. The wide-angle lens covers a broad area, reducing blind spots. Digital WDR improves image quality in high-contrast lighting. Built-in microphone and speaker enable two-way audio with noise suppression and echo cancellation. Durable aluminum alloy front panel and IP65/IK08 ratings provide weather and vandal resistance.

Suitable for

• Replacing damaged camera modules in Hikvision DS-KD8003-IME1/IME2 series gate stations
• Upgrading existing intercom systems to HD video
• New installations requiring a flush-mounted camera module

Key specifications

• Sensor: 2 MP HD Camera
• Resolution: 1920 x 1080
• Field of View: Horizontal 180°, Vertical 96°
• Night Vision: IR up to 3m
• WDR: Digital WDR
• Video Compression: H.264
• Audio: Built-in mic and speaker, noise suppression, echo cancellation
• Power: 12 VDC (from main module), <2 W
• Operating Temperature: -40°C to +60°C
• IP Rating: IP65
• IK Rating: IK08
• Mounting: Flush (requires compatible box)
• Material: Aluminum Alloy front panel
• Interface: 1x Debugging Port

Recommendations

Ensure compatibility with your main unit (DS-KD8003-IME1 or DS-KD8003-IME2 series). Professional installation recommended for proper sealing and alignment.
