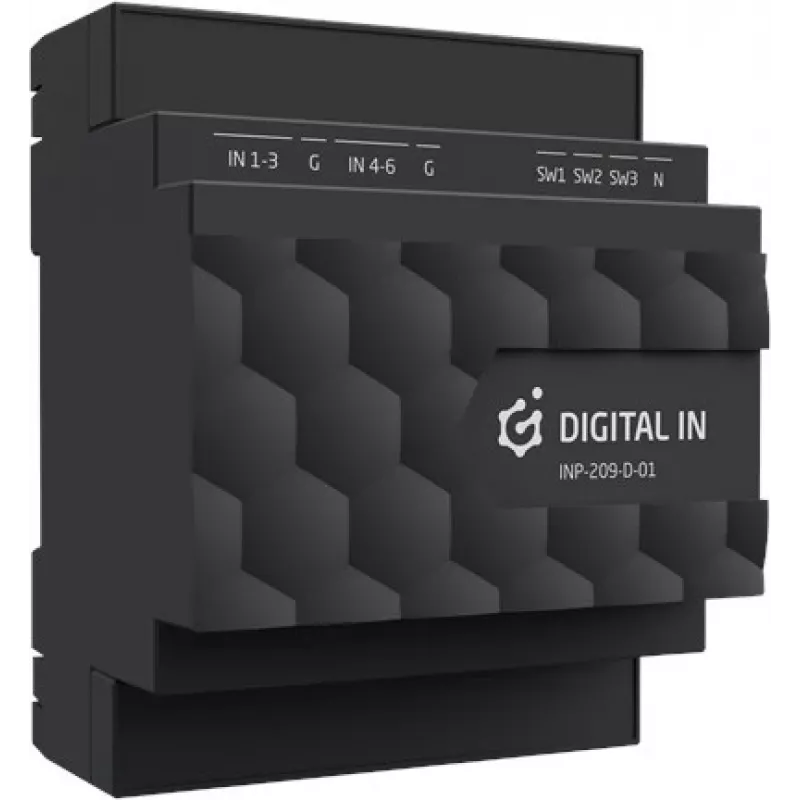

Módulo de Entrada Digital (6+3) Grenton / Montaje en Carril DIN / TF-Bus

The Grenton Digital Input Module (6+3) is a DIN rail-mounted device designed for the Grenton Smart Home System. It provides 6 potential-free digital inputs and 3 relay outputs (normally open) for monitoring and controlling various building automation applications. Communication is via the Grenton TF-Bus protocol, ensuring seamless integration with other Grenton components.

Advantages

Compact 4-module DIN design saves space in electrical cabinets. The relay outputs can switch up to 5A resistive load, suitable for lighting, blinds, or small appliances. Inputs are dry contact type, compatible with switches, sensors, and push buttons. Low power consumption (max 1.5W) and wide operating temperature range (-10°C to +50°C) ensure reliable performance.

Suitable for

• Home and building automation systems
• Monitoring door/window contacts, motion detectors, or temperature sensors
• Controlling lighting, shutters, or HVAC equipment
• Integration with Grenton TF-Bus network

Key specifications

• 6 digital inputs (potential-free)
• 3 digital outputs (relay, normally open)
• Max switching current: 5A (resistive)
• Max switching voltage: 250V AC / 30V DC
• Power supply: 24V DC via TF-Bus
• Power consumption: max 1.5W
• Mounting: DIN rail (4 modules)
• Protection rating: IP20
• Housing material: Plastic
• Operating temperature: -10°C to +50°C
• Certifications: CE

Recommendations

For optimal performance, use with Grenton TF-Bus power supply and controllers. Ensure proper wiring and observe load limits. Suitable for indoor use only.
