Módulo de rack Omnitronic Módulo 2HE con 1x conexión de red IEC, recorte 44×88 mm

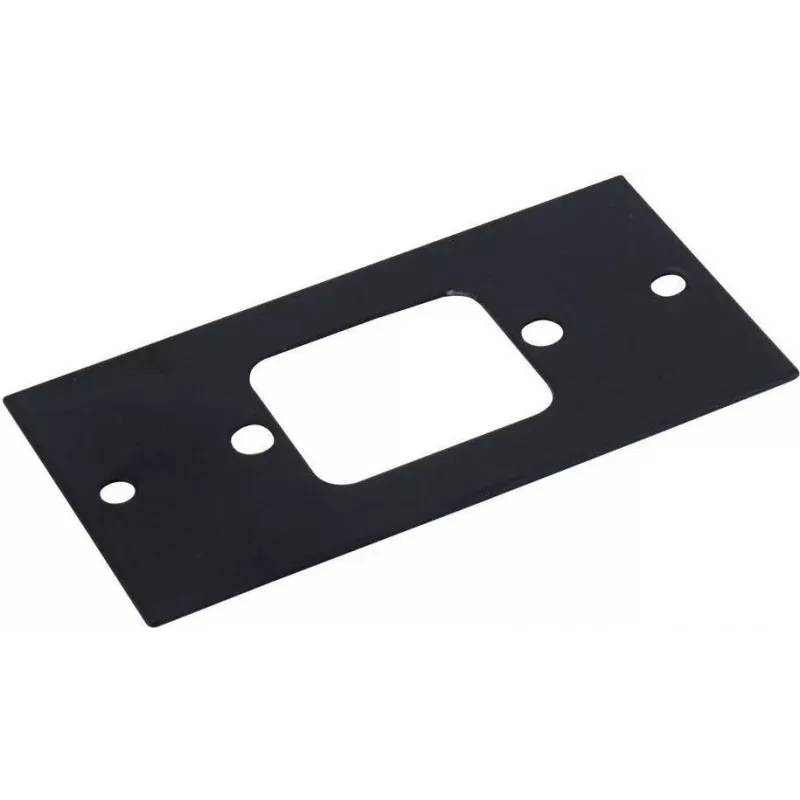

Omnitronic Modul 2HE is a 2U (2 height units) rack module designed to accept a single IEC mains inlet with a cutout sized 44×88 mm. The module provides a standardized front panel and mounting holes for secure installation in a 19" equipment rack, allowing integration of an IEC (Kaltgerätestecker) power inlet where a dedicated chassis inlet is required. Constructed from metal, the panel offers structural support and a clean, professional appearance suitable for audio, broadcast, studio and IT rack systems.

Advantages

The metal 2U panel is pre-cut to the exact 44×88 mm dimension for a single IEC inlet, reducing installation time and ensuring a snug fit for compatible inlets. Its 19" rack-compatible mounting and robust construction provide reliable mechanical support for power connections. The neutral design maintains a tidy rack front and simplifies retrofitting power in existing cabinets without modifying other devices.

Suitable for

Key specifications

How to use

Mount the Omnitronic Modul 2HE into an available 2U position in a 19" rack using standard rack screws. Insert a compatible IEC mains inlet into the 44×88 mm cutout from the front or rear according to the inlet design, then secure the inlet to the panel following the inlet manufacturer’s instructions. Complete the installation by wiring the inlet to the internal power distribution or cabling, and verify secure mechanical attachment and electrical continuity before applying mains power.

Recommendations

Select an IEC inlet model that matches the 44×88 mm cutout and has appropriate current and safety ratings for your application. When installing, follow local electrical codes and use qualified personnel for mains wiring. Tighten mounting hardware to prevent movement but avoid over-torquing that could deform the panel.
