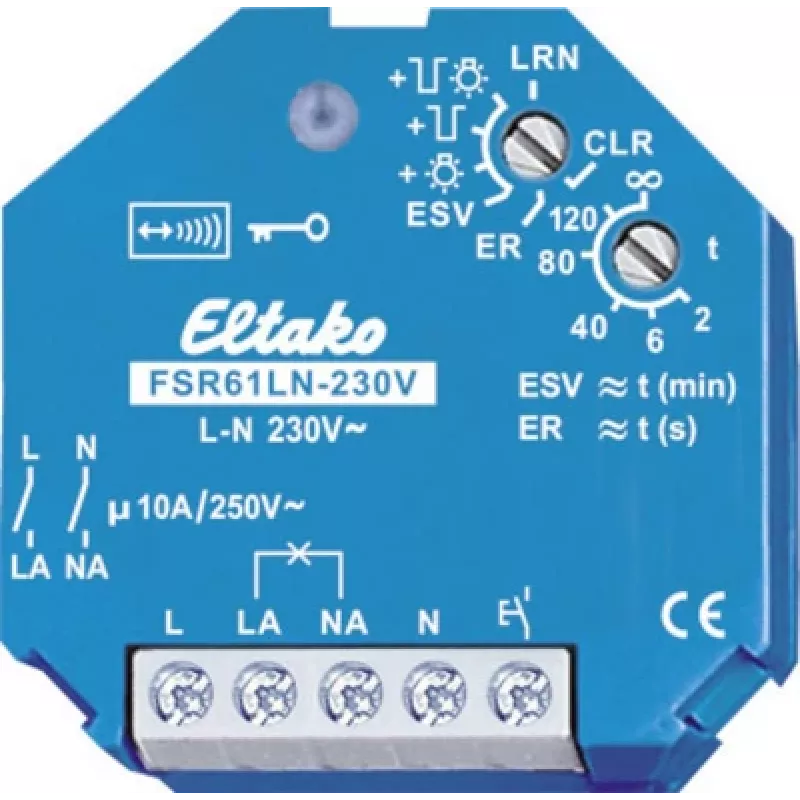

Módulo de relé de conmutación Eltako FSR61LN-230V 230V FSR61LN (MPN 30200331)

Eltako FSR61LN-230V is a 230V switching relay module intended for installation in electrical switch boxes. Supplied under manufacturer code 30200331 (MPN), this relay module performs on/off switching of loads at mains voltage and is suitable for integration into control circuits and building automation systems to control lighting or other electrical consumers.

Advantages

The module offers a compact underplaster design for installation in flush-mounted boxes and supports switching of resistive and inductive loads up to a maximum of 2000 W. It is designed for direct use on 230V mains and provides reliable mechanical relay switching with simple wiring and installation procedures.

Suitable for

Key specifications

How to use

Mount the FSR61LN-230V in a suitable flush-mounted box and connect the mains supply and load according to the wiring diagram supplied by the manufacturer. Ensure power is disconnected before installation. After wiring, apply mains power and verify correct switching operation by controlling the input signal or manual actuator connected to the relay. Follow local electrical codes and, if required, have a qualified electrician perform the installation.

Recommendations

Use the relay within its specified maximum switching capacity (2000 W) and observe the stated maximum range when used in wireless configurations. Avoid exceeding the rated voltage and ensure proper heat dissipation in enclosed boxes.
