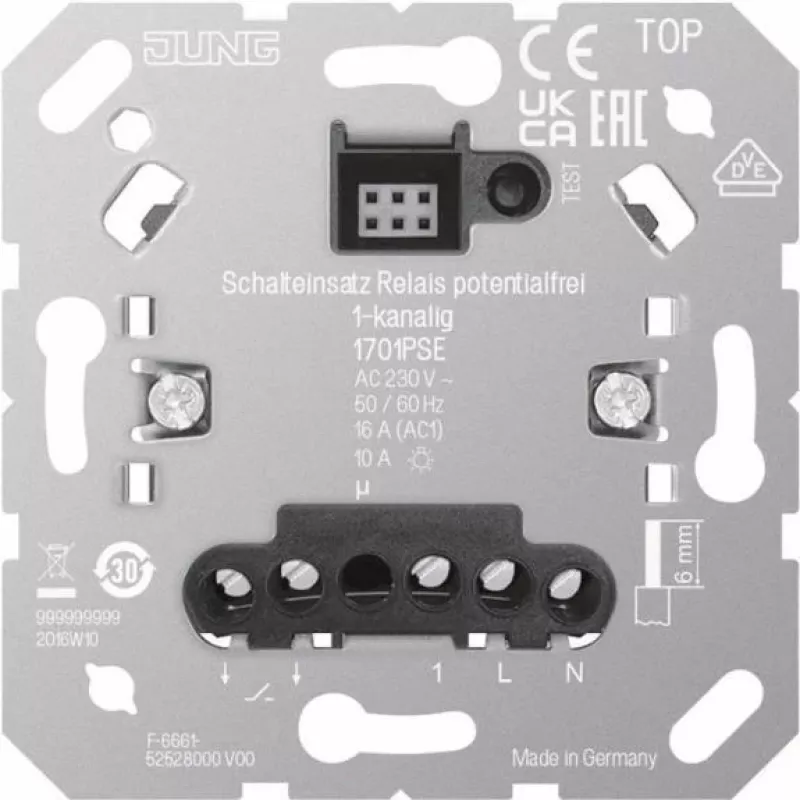

Módulo de relé JUNG 1701PSE libre de potencial 1 canal 10A

This relay insert stands out by providing a potential-free switching contact, making it suitable for controlling loads that require galvanic isolation from the control circuit. Unlike standard relay inserts that share a common reference, the 1701PSE offers a clean NO contact for versatile applications.

Highlights

• 1-channel relay insert with potential-free contact
• Switching capacity up to 10 A resistive load
• Compatible with JUNG switch ranges AS, A, CD, LS
• Flush-mounted installation with screw terminals

In daily use

The JUNG Relay Insert 1701PSE is a reliable component for switching lighting or other loads in building automation. Its potential-free contact allows integration into various control scenarios, including those requiring isolation. The insert fits standard flush-mounted boxes and connects via screw terminals, accommodating conductors up to 2 x 2.5 mm².

Full specifications

• Product type: Relay insert
• Number of channels: 1
• Contact type: Potential-free (NO contact)
• Rated voltage: AC 230 V ~
• Rated frequency: 50/60 Hz
• Switching current (resistive load): 10 A (cos φ = 1)
• Switching capacity incandescent lamps: 2300 W
• Switching capacity HV halogen lamps: 2300 W
• Switching capacity LV halogen with electronic transformer: 1500 W
• Switching capacity LV halogen with inductive transformer: 1200 VA
• Switching capacity fluorescent lamps uncompensated: 1200 VA
• Switching capacity LED lamps < 2 W: 30 W
• Switching capacity LED lamps > 2 W: 300 W
• Connection type: Screw terminals
• Terminal capacity: max. 2 x 2.5 mm² (solid/stranded)
• Mounting type: Flush-mounted
• Operating temperature: -5 °C to +45 °C
• Standby power consumption: < 0.5 W
• Protection class: IP20 (when installed)
• Compatibility: Jung switch ranges (AS, A, CD, LS)

Final note

For precise control and isolation in your electrical installations, the 1701PSE delivers dependable performance in a compact flush-mount design.
