Módulo de Voz VDMP3-B9Q Paradox

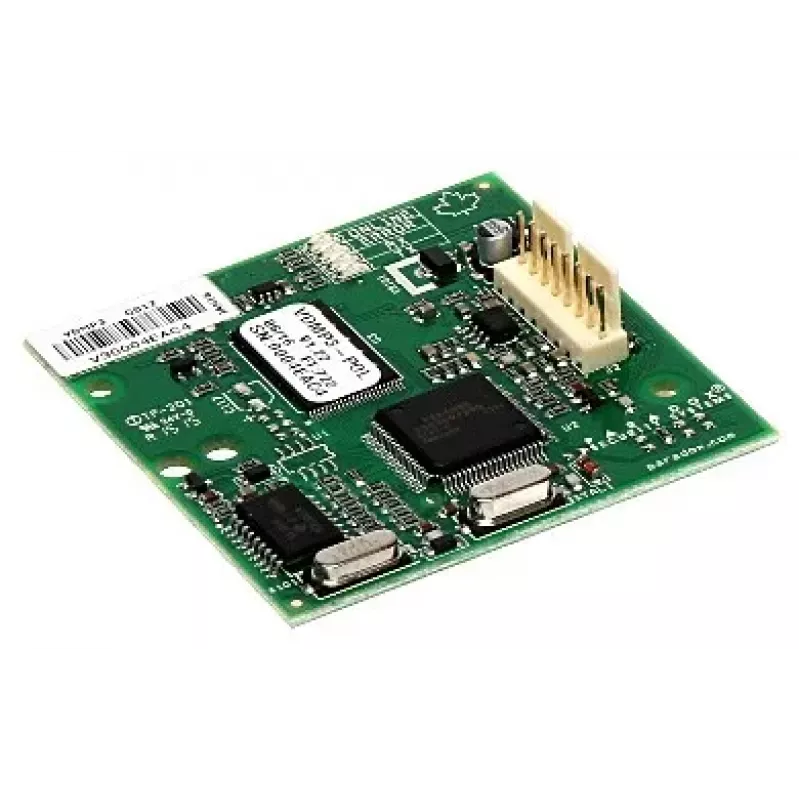

The Paradox VDMP3-B9Q Voice Module is a plug-in voice dialer designed for seamless integration with Paradox control panels. It enables voice reporting and remote control via PSTN, allowing users to receive alarm notifications and interact with their security system using customizable voice prompts.

Advantages

Easy plug-in installation directly onto the control panel eliminates the need for additional wiring. Supports up to 8 phone numbers and 256 pre-recorded messages for comprehensive event reporting. Remote arm/disarm and PGM control enhance system accessibility.

Suitable for

• Residential and commercial security systems using Paradox Spectra SP, Magellan MG5000/MG5050, or Digiplex EVO series panels.
• Users requiring voice notification and remote control via standard telephone line.

Key specifications

• Module Type: Plug-in Voice Dialer
• System Compatibility: Paradox Spectra SP, Magellan MG5000/MG5050, Digiplex EVO Series
• Communication Interface: Serial Port (Panel Bus)
• Reporting Method: PSTN Voice Dialing
• Max Phone Numbers: 8
• Max Pre-recorded Messages: 256 (for events, zones, partitions, user numbers)
• Remote Control Functions: Arm/Disarm System, Activate/Deactivate PGMs
• Message Recording: User-recordable via microphone on panel or PC software
• Firmware Upgrade: In-field via 307USB and WinLoad software
• Event Reporting: Alarms, Arm/Disarm Status, System Status
• Power Source: Powered by Control Panel
• Installation: Direct plug-in to control panel
• Dialing Type: Tone (DTMF)
• Voice Prompts: Customizable voice prompts for remote control
• Operating Temperature: 0°C to 50°C (32°F to 122°F)

Recommendations

Ensure your control panel is compatible before purchase. For firmware updates, use the 307USB interface and WinLoad software.
