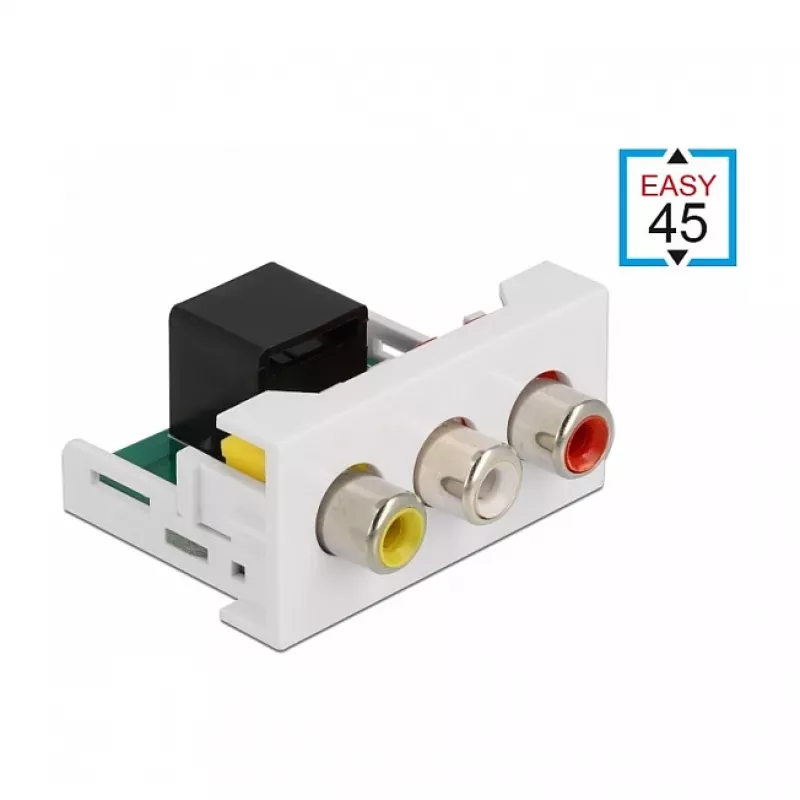

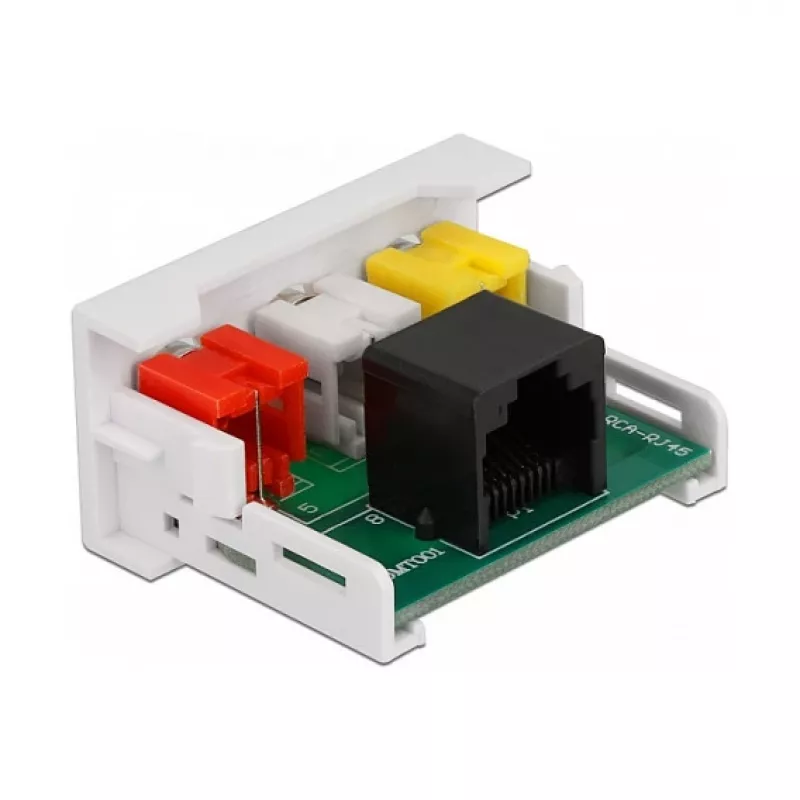

Módulo DeLOCK Easy 45 3 x conector hembra RCA a conector hembra RJ45 22,5 x 45 mm

The DeLOCK Easy 45 Module provides three RCA female ports combined with an RJ45 female socket in a compact 22.5 x 45 mm module. Designed for installation in standard Easy 45 frames and module holders, it offers a snap-in mechanism for secure mounting and simple removal. Available in black and white, the module serves as an interface between analogue RCA audio/video devices and structured cabling or adapter solutions.

Advantages

This Easy 45 module features three RCA female connectors and one RJ45 female port in a standardized 45 mm format, allowing flexible system integration. The snap-in mechanism ensures a firm fit while permitting easy replacement or reconfiguration. Its compact size (22.5 x 45 mm) and availability in two colours make it suitable for different installation environments and faceplate styles.

Suitable for

• Connecting analogue audio/video sources with RCA outputs to RJ45-based extension or adapter systems
• Integration into Easy 45 frames, module holders and cable ducts
• Use in home entertainment, conference rooms or AV installations requiring modular connectors

Key specifications

• Manufacturer: DELOCK
• Model: Easy 45 Module 3 x RCA female to RJ45 female port (MPN 81342)
• Connectors: 3 × RCA female, 1 × RJ45 female
• Module size: 22.5 × 45 mm
• Colours: Black, White
• Category: Cable interface and gender adapters
• EAN: 4043619813421

How to use

Insert the module into a compatible Easy 45 frame or module holder until the snap-in mechanism locks it in place. Connect RCA cables from audio or video devices to the three RCA female ports and use the RJ45 female socket to attach a pre-wired RJ45 cable or an RJ45-to-RCA adapter/patch for signal extension. To remove, press the release mechanism on the frame and pull the module out.

Recommendations

Use the module within compatible Easy 45 mounting systems and ensure cabling and any adapters match the signal type. Avoid exposing the module to moisture or excessive mechanical stress; for AV installations, verify cable shielding and connections to maintain signal quality.
