Módulo Keystone DELOCK 86338 — Mini-DIN 4 a Mini-DIN 4, blanco, 22×40×15 mm

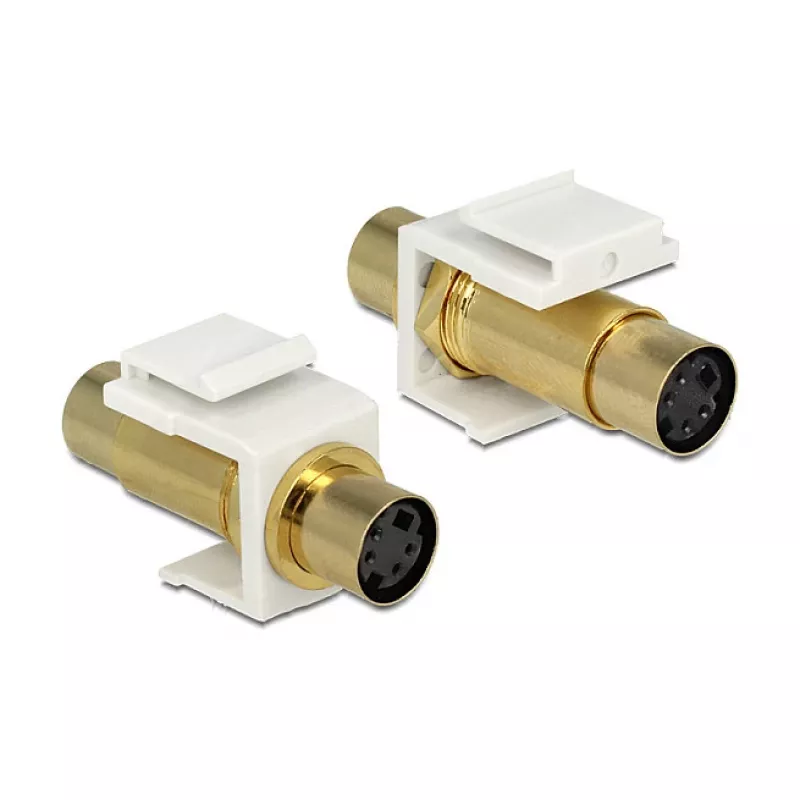

DELOCK 86338 is a compact keystone module with Mini-DIN 4 female connectors on both sides, designed for snap-in mounting in keystone patch panels, faceplates or surface-mount boxes. Finished in white and measuring 22 × 40 × 15 mm, it provides a standardized pass-through for four-pin Mini-DIN connections used in audio/video or control applications where space-saving modular cabling is required. The module supports straightforward installation and a clean front-panel appearance while maintaining the original signal path for devices such as S-Video equipment or control interfaces that use Mini-DIN 4.

Advantages

The module offers a reliable, standardized pass-through for Mini-DIN 4 connections that preserves signal integrity without additional electronics. Its compact dimensions and keystone-compatible format enable quick snap-in installation into existing panels and faceplates, simplifying wiring and maintenance. The white finish provides a neutral appearance suitable for home and professional AV environments, and the two female connectors allow simple extension or consolidation of existing Mini-DIN cabling.

Suitable for

• Extending or routing Mini-DIN 4 connections such as S-Video between devices
• Mounting in keystone patch panels, wall plates or surface-mount boxes for AV installations
• Control signal passthrough where a compact, modular connection point is needed
• Environments that require a neat front-panel interface for four-pin Mini-DIN cables

Key specifications

• Connector type: Mini-DIN 4 female to Mini-DIN 4 female
• Form factor: keystone module, snap-in compatible
• Finish: white
• Dimensions: 22 × 40 × 15 mm
• Application: audio/video and control signal passthrough for four-pin Mini-DIN cabling

How to use

Insert the module by pressing it into a compatible keystone opening in a patch panel, faceplate or surface-mount box until it snaps into place. Connect Mini-DIN 4 male plugs from source and destination devices into the female connectors on either side of the module. Ensure cables are seated fully and routed to avoid strain on the connectors. The module functions as a passive passthrough and does not require power or configuration.

Recommendations

Use shielded Mini-DIN cables where possible to reduce interference in audio/video and control signal applications. Verify connector seating after installation and avoid excessive bending at the connector entry to prolong service life.
