Módulo Keystone DELOCK 86966 — USB 3.2 Gen 1 Type-A a Type-A, negro, 32,5 × 23,5 mm

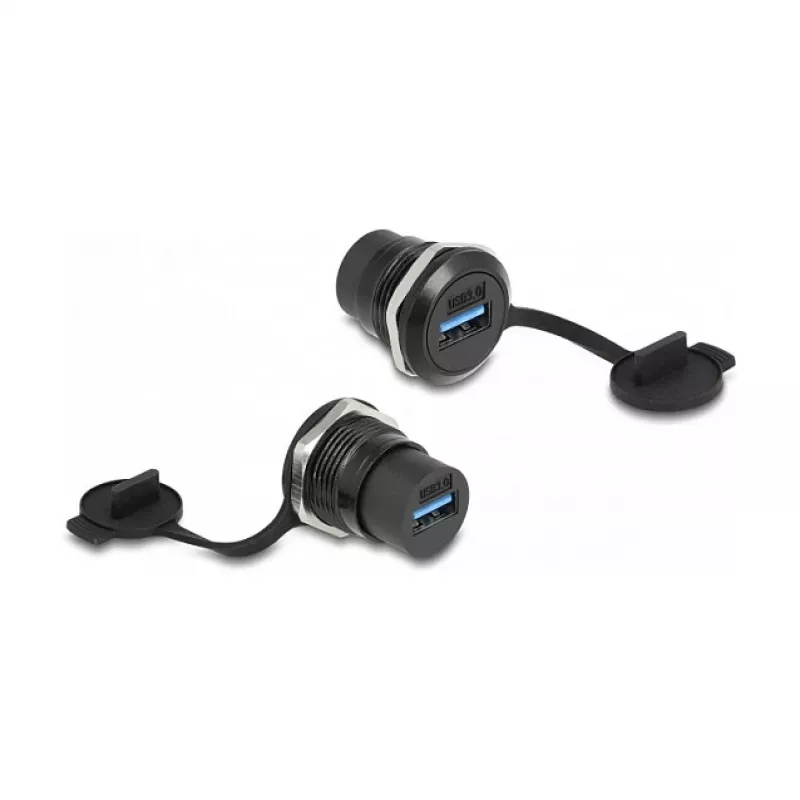

The DELOCK 86966 keystone module provides a compact, panel-mount USB connection for installations that require a USB 3.2 Gen 1 Type-A to Type-A feed-through. Housed in black with overall dimensions of 32.5 × 23.5 mm, this insert is designed to fit standard keystone-style plates, wall plates, enclosures and patch panels. The built-in female Type-A port supports USB 3.2 Gen 1 data transfer rates and includes a dust protection cap to keep the socket clean and protected when not in use, making it suitable for desktop, rack or switch-cabinet installations in office, industrial or AV environments.

Advantages

This keystone module provides a standardized panel insert that simplifies installation of a Type-A to Type-A USB feed-through without the need for custom cutouts. The compact 32.5 × 23.5 mm housing is compatible with keystone plates and enclosures, allowing quick integration into existing infrastructure. Support for USB 3.2 Gen 1 enables high-speed data transfer where Type-A connections are required. The included dust protection cap preserves the female port against dirt and mechanical damage, extending service life in dusty or industrial settings.

Suitable for

• Desktop or wall plate installations requiring a Type-A to Type-A USB feed-through
• Rack or switch cabinet panels where a compact USB port is needed
• AV and media setups that use front-panel accessible USB Type-A connections
• Industrial enclosures and distribution boxes where dust protection is beneficial

Key specifications

• Connector type: USB 3.2 Gen 1 female Type-A (panel-mount keystone module)
• Compatible with keystone-style plates and enclosures
• Housing color: black
• External dimensions: 32.5 × 23.5 mm
• Data rate: up to USB 3.2 Gen 1 performance
• Includes dust protection cap for the female port

How to use

Install the keystone module into a compatible keystone opening in a wall plate, patch panel or enclosure until it snaps into place. From the rear side, route and connect the internal USB Type-A cable or adapter as required by the installation. From the front, standard USB Type-A plugs can be connected to the female port for pass-through connectivity. When the port is not in use, place the dust protection cap over the female connector to protect it from contamination and mechanical wear.

Recommendations

Use the module with compatible keystone plates and ensure rear-side cabling is secured to avoid strain on the connector. The dust cap should be used in dusty or industrial environments to maintain reliable contacts. For maximum data rates, use USB 3.2 Gen 1 compatible cables and devices.
