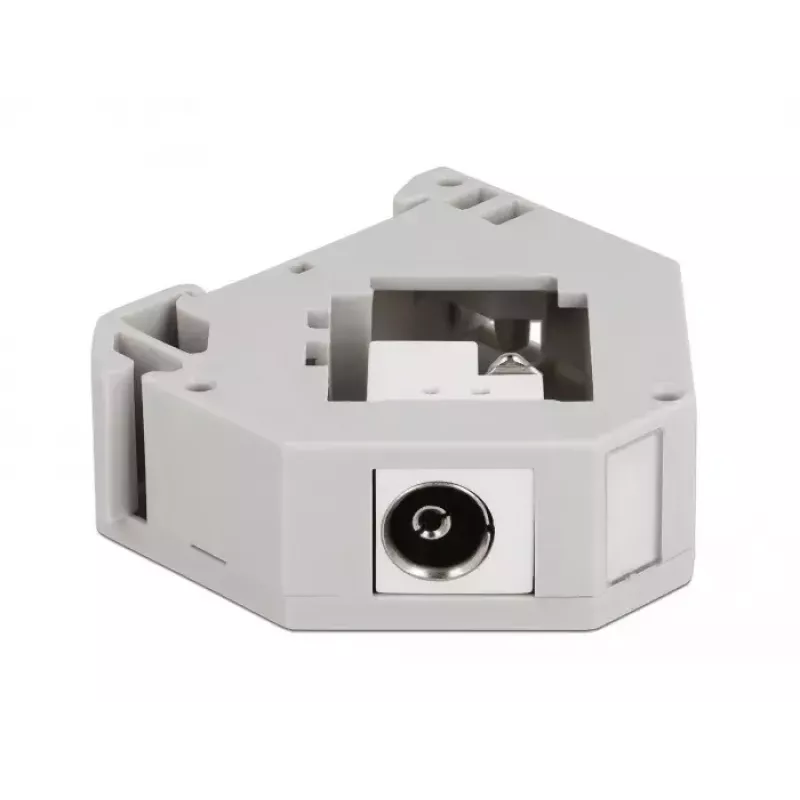

Módulo Keystone DELOCK 87159, gris/blanco, conexión hembra, conexión por borne, 60,1 × 59,4 × 21,6 mm

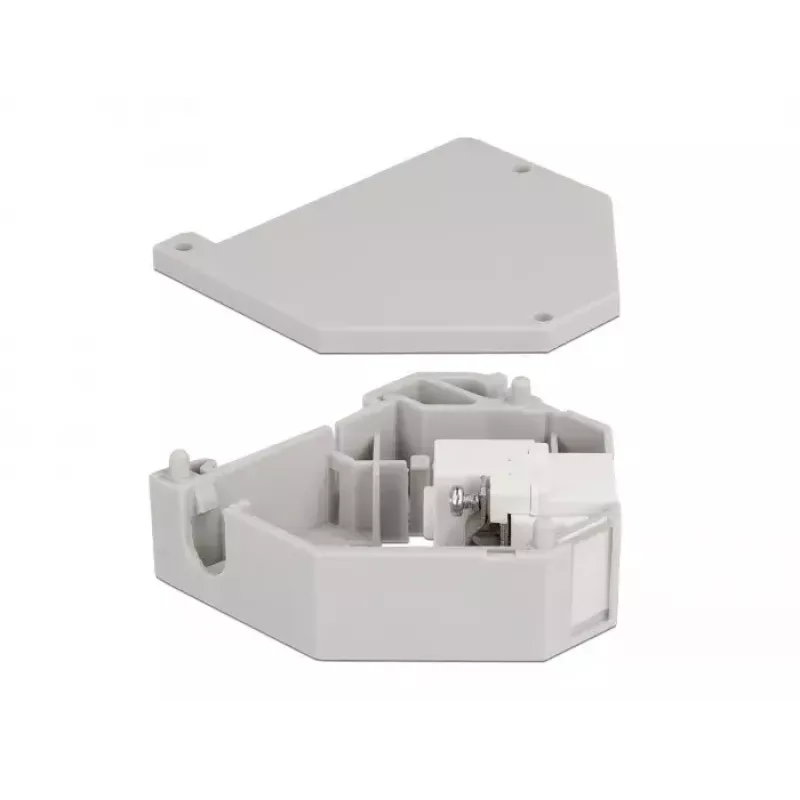

DELOCK 87159 is a compact keystone module in grey and white featuring a female connector on one side and a terminal connector on the other. The housing measures 60.1 × 59.4 × 21.6 mm and is supplied single in a polybag. The module provides a compact interface for panel or patch panel installations where a reliable terminal connection and an IEC-style jack are required. A screw-on metal bracket above the terminal block offers strain relief for the contact cable, and a small labelling field on the housing allows clear identification.

Advantages

This keystone module combines a female IEC-style jack and a terminal connector in a compact housing suitable for row-mounted panel use. The integrated metal bracket provides mechanical strain relief to protect cable contacts and ensure consistent signal connections. The module supports DIN rail mounting on a 35 mm rail, enabling flexible installation in cabinets and enclosures. A dedicated labelling field simplifies identification and organization when multiple modules are used.

Suitable for

• Panel or patch panel installations requiring a compact keystone interface
• Enclosures and cabinets with 35 mm DIN rails
• Situations where a female IEC-style jack must be paired with a screw terminal connection
• Applications needing visible labelling of individual ports

Key specifications

• Housing colour: grey/white
• Connector types: female IEC-style jack on one side, terminal connector on the other
• Strain relief: screw-on metal bracket above the terminal block

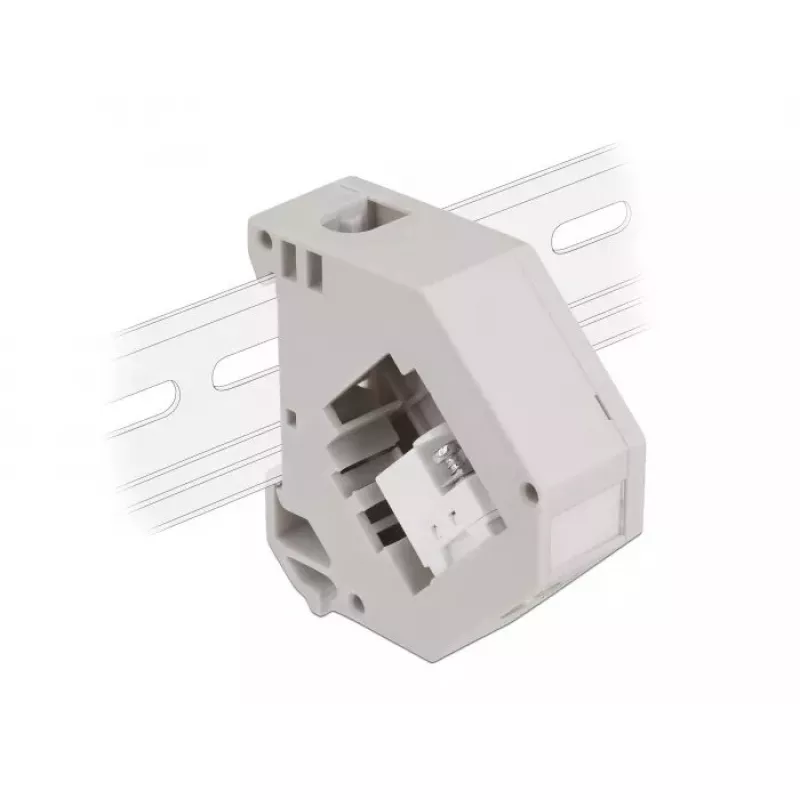

• Mounting: compatible with 35 mm DIN rail
• Labelling: small built-in labelling field
• Dimensions: 60.1 × 59.4 × 21.6 mm
• Packaging: supplied single in a polybag

How to use

Insert the module into a compatible keystone panel cutout or mount it onto a 35 mm DIN rail as required by the installation. Connect the antenna or signal cable to the female IEC-style jack and secure the corresponding conductors in the terminal connector, fastening screws to ensure reliable electrical contact. Fit the screw-on metal bracket over the terminal block and tighten to provide strain relief for the contact cable. Use the labelling field to mark the port for identification.

Recommendations

For reliable performance, ensure that conductor ends are clean and properly stripped before insertion into the terminal connector and tighten terminal screws to the manufacturer’s recommended torque. When mounting on a DIN rail, verify the rail is the standard 35 mm type and that the module is securely clipped or fastened. Avoid exposure to excessive mechanical stress or moisture to maintain contact integrity.
