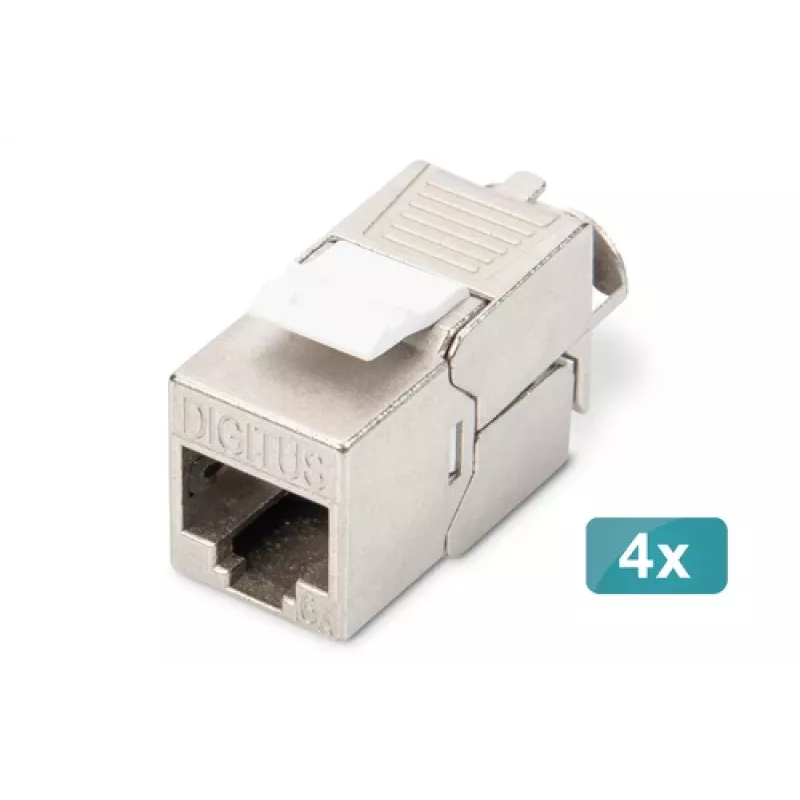

Módulo Keystone Digitus CAT 6A apantallado sin herramientas Módulo 4 uds.

The DIGITUS CAT 6A Keystone Module (4 pcs, DN-93615-4) is a shielded, tool-free RJ45 keystone module designed for quick wire terminations and compact installation in distribution panels or junction boxes. It supports Cat. 6A performance with an LSA insulation-displacement connector and includes a dust protection cap for the jack. The module set is GHMT certified and supports IEEE 802.3 af/at/bt PoE standards.

Advantages

The shielded keystone modules provide 360° shield contact for improved EMC performance and are suitable for field installation without special tools thanks to the tool-free LSA termination. Their compact, flat construction enables series mounting in a 19" 1U panel and compatibility with modular junction boxes. Colour-coded LSA rails support both EIA/TIA 568 A and B wiring schemes, and the included dust caps protect unused RJ45 jacks.

Suitable for

• Patch panels and 19" 1U distribution panels
• Modular junction boxes and wall plates
• Field installations where tool-free termination is required
• Networks requiring Cat 6A performance and PoE (IEEE 802.3 af/at/bt)

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-93615-4
• EAN: 4016032490562
• Category: Cat. 6A (shielded)
• Connector: RJ45 keystone with dust protection cap
• Termination: Tool-free LSA (insulation-displacement)
• Shield: 360° shield contact
• PoE support: IEEE 802.3 af/at/bt (PoE, PoE+, 4PPoE)
• Pack contents: 4 modules
• Certification: GHMT certified

How to use

Insert the prepared cable into the keystone module and press the conductor into the colour-coded LSA rail according to EIA/TIA 568 A or B. Ensure full 360° shield contact by closing the shield clamp. Push the module into the panel or junction box cutout until it snaps into place. Fit the dust protection cap on unused RJ45 jacks to prevent contamination.

Recommendations

Use appropriate cable preparation (strip lengths as recommended for LSA termination) and verify wiring continuity and performance with suitable testing equipment after installation. For installations requiring prolonged exposure to mechanical stress or outdoor use, consider additional environmental protection for the junction box or panel.
