Módulo Keystone en ángulo ShiverPeaks BS08-10004

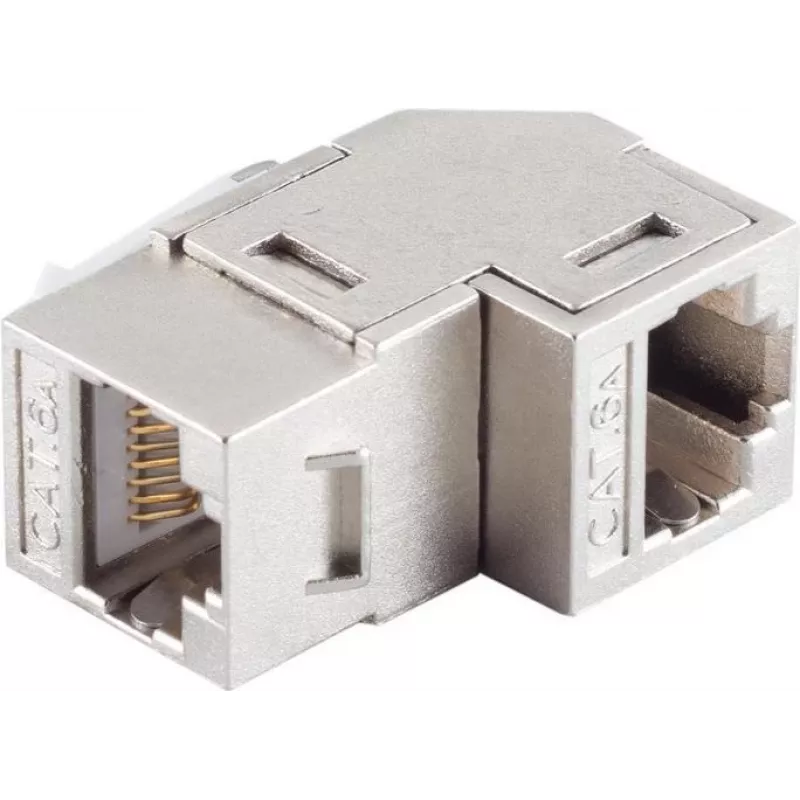

The ShiverPeaks BS08-10004 angled keystone module provides a compact and practical solution for network outlets that require an angled connection. Designed with an RJ-45 connector and a silver finish, this single-module unit is intended for installation in standard keystone wall plates or patch panels where space or cable routing constraints make a straight connector impractical. The angled housing redirects the cable path to reduce bending stress and to keep visible cabling neat.

Advantages

The angled design improves cable management by guiding the cable away from the wall or plate surface, which reduces strain on the connector and cable. A silver finish offers a neutral visual appearance that integrates with most faceplates and office environments. The module is supplied as a single unit, allowing targeted replacement or expansion without the need to change full plates or panels.

Suitable for

• Network wall outlets in office or home environments
• Patching panels where space behind the plate is limited
• Installed points requiring reduced cable bend radius
• Upgrading or replacing single keystone ports

Key specifications

• Connector type: RJ-45
• Orientation: Angled
• Finish: Silver
• Module format: Single keystone insert compatible with standard keystone openings

How to use

Insert the keystone module into a compatible faceplate or patch panel opening until it snaps into place. Terminate the network cable to the RJ-45 connector following the appropriate wiring standard for your installation. Once wired, position the cable along the angled channel to ensure the reduced bend radius is maintained and secure any loose cabling behind the faceplate or in the cabinet.

Recommendations

Use the angled module where rear clearance is limited or where a horizontal cable exit would cause excessive bending. Verify compatibility with your existing faceplate or patch panel and follow standard network termination and testing procedures after installation.
