Módulo Keystone USB 5 Gbit/s conector hembra Type-A 250° a conector macho Type-A 0,5 m cable DELOCK

The DeLOCK Keystone Module provides a USB 5 Gbps Type-A female connector set at a 250° angle, attached to a 0.5 m Type-A male cable in a compact, flat housing. Its standardised Keystone dimensions allow snap-in installation into Keystone patch panels, face plates or surface-mount boxes. The short, angled cable and low mounting depth enable space-saving installation in equipment, cable ducts or other hard-to-reach places while maintaining reliable data transfer up to 5 Gbps. The module is finished in white for a neutral appearance.

Advantages

This module combines a right-angled Type-A female port with a short 0.5 m Type-A male cable to extend or relocate USB connections without requiring additional adapters. Standard Keystone dimensions ensure straightforward snap-in mounting. Its low profile and small mounting depth make it suitable for compact installations where space is limited. The construction supports USB data transfer rates up to 5 Gbps and provides a clean white finish for discreet integration into panels and face plates.

Suitable for

• Extending or relocating USB Type-A connections in patch panels and wall plates
• Installing USB ports in surface-mount boxes and keystone panels
• Space-constrained equipment racks, cable ducts or AV cabinets

Key specifications

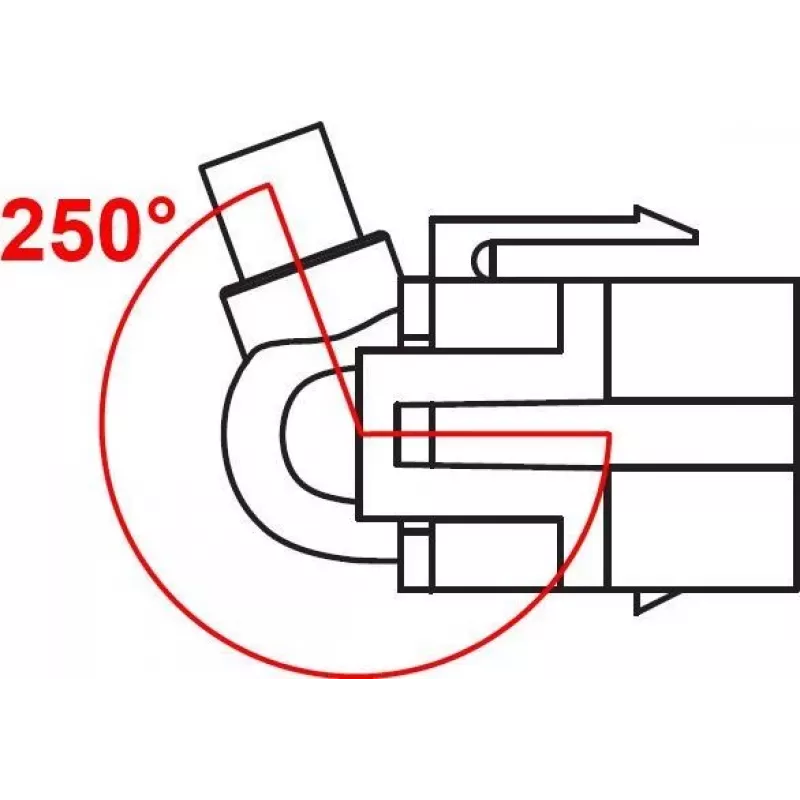

• Connector 1: USB A (female), 250° angle
• Connector 2: USB A (male), 0.5 m cable
• Data transfer: up to 5 Gbps
• Mounting: Keystone standard dimensions for snap-in installation
• Colour: White
• Brand: DELOCK
• MPN: 86871
• EAN: 4043619868711

How to use

Insert the module into a compatible Keystone cutout in a patch panel, face plate or surface-mount box until it snaps into place. Connect the Type-A male cable to the host device or USB hub, and plug external USB devices into the Type-A female port on the module. Ensure connectors are fully seated and avoid sharp bends in the cable to maintain signal integrity.

Recommendations

For optimal performance, use the module with USB 3.x compatible hosts and cables to achieve transfer rates up to 5 Gbps. Avoid routing the short cable through tight sharp-edged openings; secure nearby cabling to prevent strain on the connectors.
