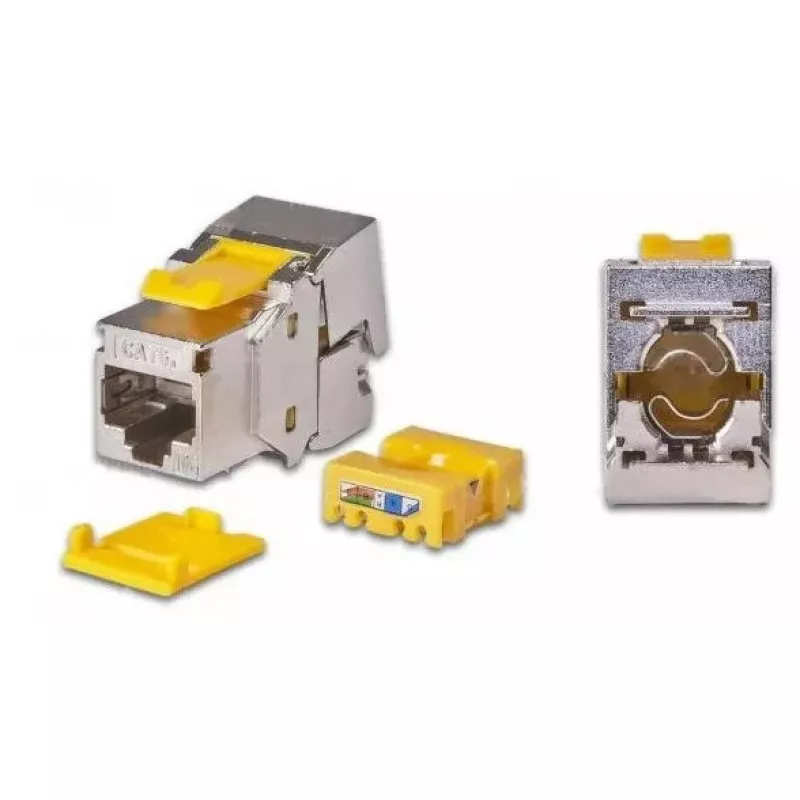

Módulo keystone Wirewin WKS JACK KAT6A STP EA 12 RJ-45 plano metálico amarillo

The Wirewin WKS JACK KAT6A STP EA 12 keystone module is a compact RJ-45 outlet intended for structured cabling and high-speed Ethernet links. With a flat construction and metallic yellow finish, the module supports category 6A performance in a space-saving form factor. Each pack contains 12 identical modules sized 23.5 mm wide, 37.5 mm deep and 17.5 mm high, allowing straightforward installation in patch panels, wall plates or custom housings where reliable shielded connections are required.

Advantages

This keystone module provides Cat6A performance with shielded twisted-pair (STP) protection to reduce electromagnetic interference in dense cable environments. The flat profile simplifies mounting in shallow or crowded apertures and the RJ-45 interface ensures compatibility with standard network plugs and patch cords. Supplied in a 12-piece pack, the modules are suitable for multiple port deployments and reduce the need for frequent reordering.

Suitable for

• Installation in patch panels and keystone wall plates
• Data centers and server rooms requiring Cat6A shielded ports
• Office networks and structured cabling projects
• Environments with high electromagnetic interference where STP is preferred

Key specifications

• Connector type: RJ-45 keystone
• Performance category: Category 6A (Cat6A)
• Shielding: Shielded Twisted Pair (STP)
• Quantity per pack: 12 modules
• Dimensions (W × D × H): 23.5 mm × 37.5 mm × 17.5 mm
• Finish: Metallic yellow
• Construction: Flat profile for shallow mounting

How to use

Prepare the cable according to standard termination procedures for shielded RJ-45 connections, ensuring proper grounding of the STP drain wire and connector shield. Insert the terminated cable into the keystone module and secure it following the module’s termination method. Snap the module into your chosen faceplate or patch panel cutout until it locks in place. Verify the connection with a network tester to confirm continuity and category compliance before finalizing the installation.

Recommendations

Use appropriate grounding practices when installing shielded keystone modules to maintain EMC performance. Match these modules with Cat6A-rated cables and patch cords to achieve the intended throughput and testing standards. Store modules in their pack until installation to prevent contamination or physical damage to the contacts.
