Módulo transceptor de fibra óptica AXIS 5801-811

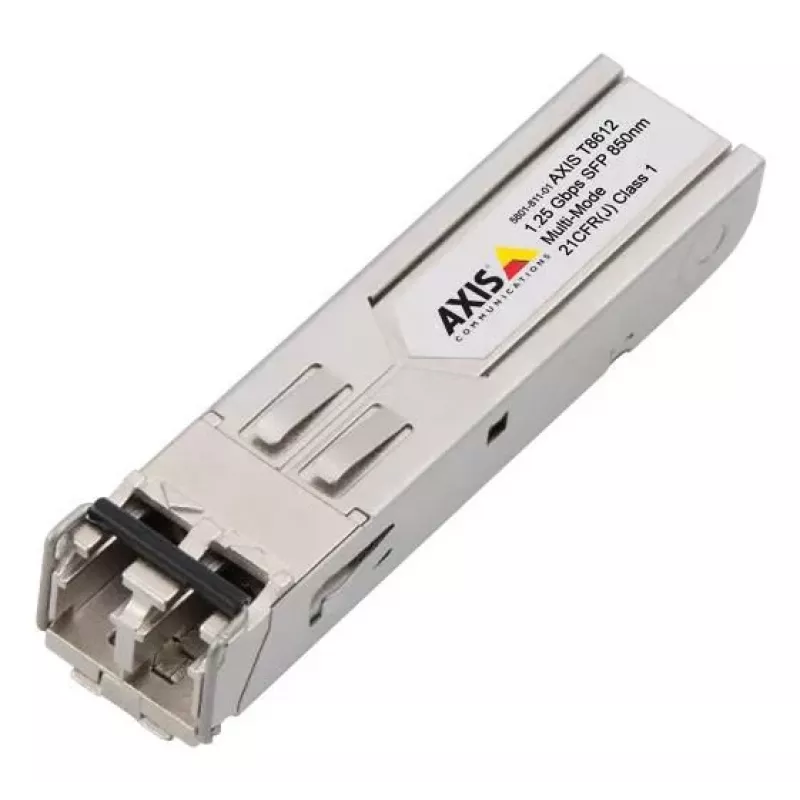

AXIS T8612 SFP Module LC.SX (AXIS 5801-811) is an industrial-grade small form-factor pluggable (SFP) fiber optic transceiver with an LC connector, designed to provide a multimode fiber link for switches, routers and other network devices. The module uses a short-wavelength (850 nm) VCSEL and supports data transmission up to 550 m on 50/125 µm multimode fiber. Built in a metal housing and compliant with the SFP Multisource Agreement (MSA), it can be hot-plugged into compatible ports without interrupting the host device.

Advantages

The transceiver offers industrial temperature tolerance and link-loss detection for improved network redundancy. Its SFP MSA compliance ensures broad compatibility and easy installation, while the metallic housing provides mechanical durability. Operating at 850 nm, the VCSEL-based design delivers reliable short-range multimode performance up to 550 m.

Suitable for

• Short-reach multimode fiber connections (up to 550 m)
• Installation in SFP ports on switches and routers
• Industrial environments requiring wide temperature range components
• Network redundancy configurations using link-loss signalling

Key specifications

• Model: AXIS 5801-811 (AXIS T8612 SFP Module LC.SX)
• Interface type: SFP
• Connector: LC
• Wavelength: 850 nm (VCSEL)
• Maximum distance: up to 550 m on 50/125 µm multimode fiber
• Housing: metallic
• Compliance: SFP Multisource Agreement (MSA)
• MPN: 5801-811
• EAN: 7331021055711

How to use

Insert the AXIS SFP transceiver into a compatible SFP slot on your switch or router while the host device is powered on (hot-pluggable). Connect an LC-terminated multimode fiber cable (50/125 µm) to the LC port. Verify link status and configure the network device as required. Follow the host equipment manual for any platform-specific configuration or transceiver settings.

Recommendations

For reliable operation, use multimode 50/125 µm fiber with appropriate LC connectors and keep link distances within the specified 550 m. Ensure the host device supports SFP modules and check compatibility with Axis devices where required. Observe ESD precautions when handling the module and store it in a dry environment when not in use.
