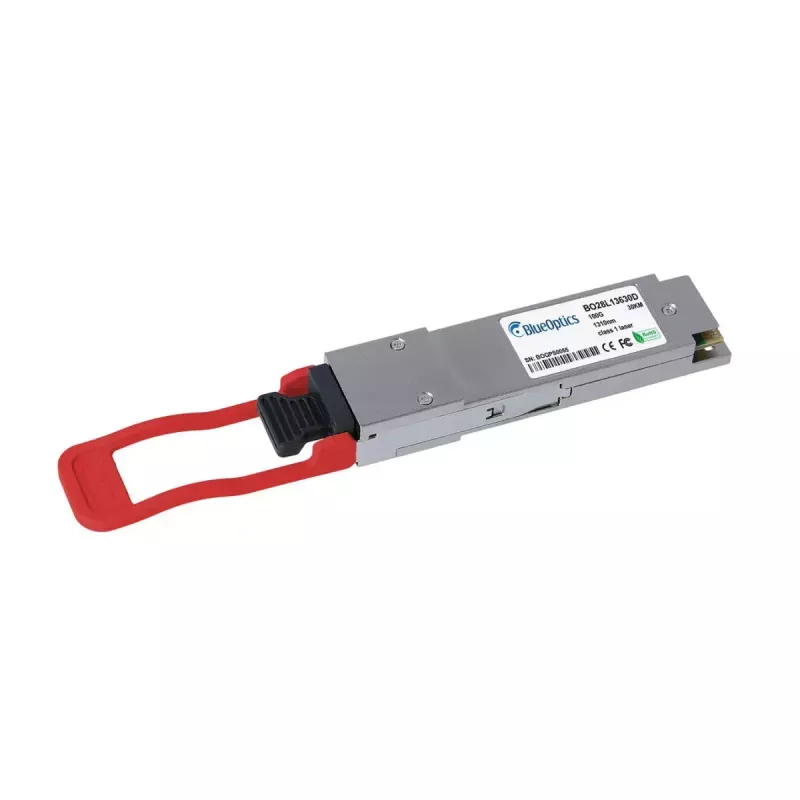

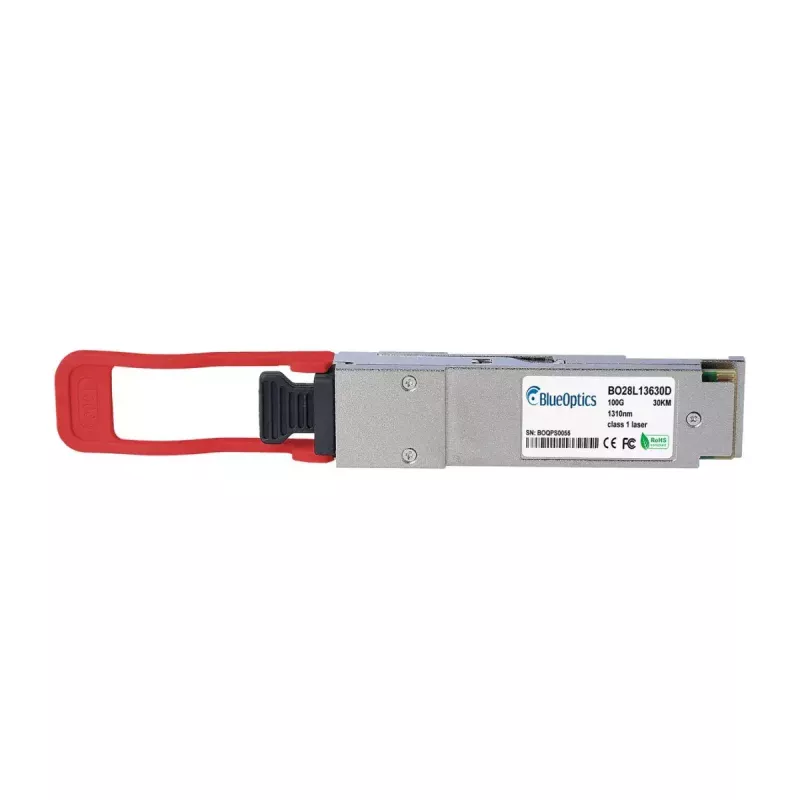

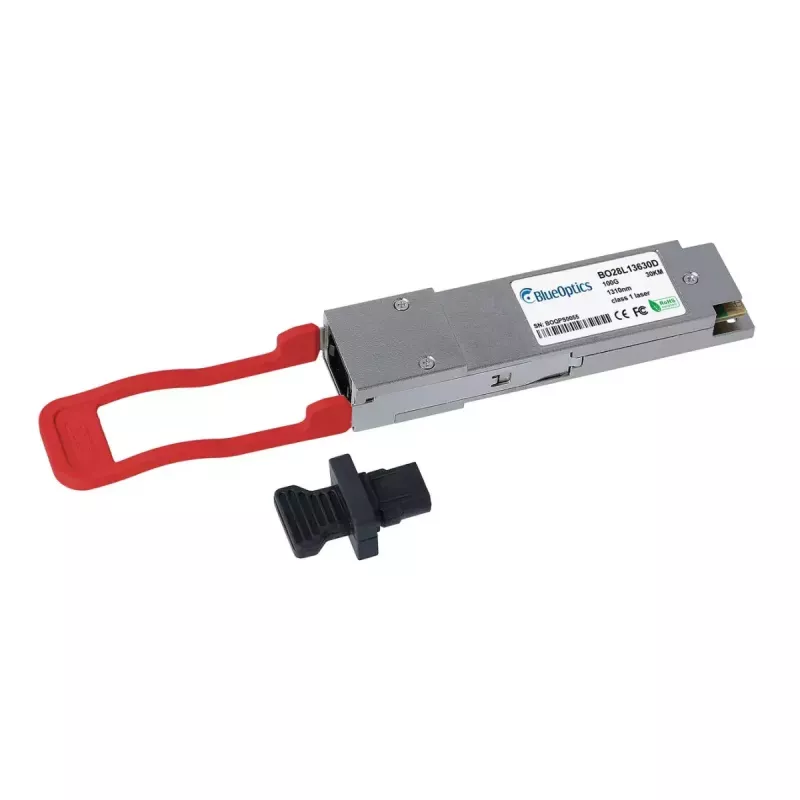

Módulo transceptor de fibra óptica BlueOptics 3HE11239AA-BO QSFP28 LC aluminio

The BlueOptics 3HE11239AA-BO QSFP28 LC Aluminium is a fiber optic transceiver module engineered for high-speed single-mode optical links. Built with an aluminium housing and an LC duplex interface, this QSFP28 module supports 100 gigabit-class transmission and is intended for deployment in network devices that accept QSFP28 form-factor transceivers. The module weighs approximately 40 g and follows MSA-compatible mechanical and electrical standards for interoperability.

Advantages

This BlueOptics transceiver provides high-density 100G connectivity in a compact QSFP28 footprint with an LC optical interface. The aluminium enclosure offers corrosion-resistant protection and effective thermal dissipation. As an MSA-compatible QSFP28 with single-mode optical transmission support, it enables reliable long-reach data links while maintaining a small physical size and low weight for easy installation.

Suitable for

• High-speed Ethernet and data center interconnects
• Backbone links in enterprise and carrier networks
• Routers, switches and storage systems supporting QSFP28 modules

Key specifications

• Form factor: QSFP28
• Optical connector: LC duplex
• Media type: single-mode fiber (optical)
• Housing material: aluminium
• Weight: 0.04 kg

How to use

Install the QSFP28 transceiver into a compatible QSFP28 port on your switch, router or other network equipment according to the host device manufacturer’s instructions. Connect single-mode LC duplex fiber patch cords to the module’s LC connector, ensuring correct transmit/receive orientation. Verify the link status through the host device interface and, if available, enable or monitor digital diagnostic functions supported by the equipment. Follow standard electrostatic discharge (ESD) precautions when handling the module.

Recommendations

For optimal performance, use single-mode LC patch cords of appropriate attenuation and observe bend-radius limits for fiber cabling. Confirm that the target hardware supports third-party QSFP28 modules and, when available, enable digital diagnostics on the host to monitor supply voltage, optical power and temperature. Store and install the module in a clean, dry environment and avoid touching the connector endfaces.
