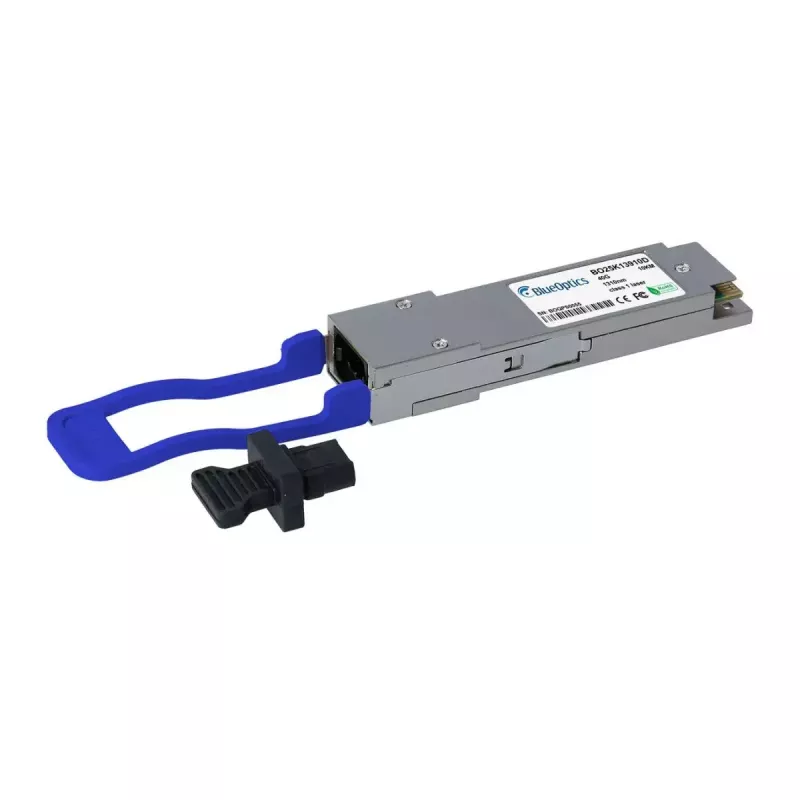

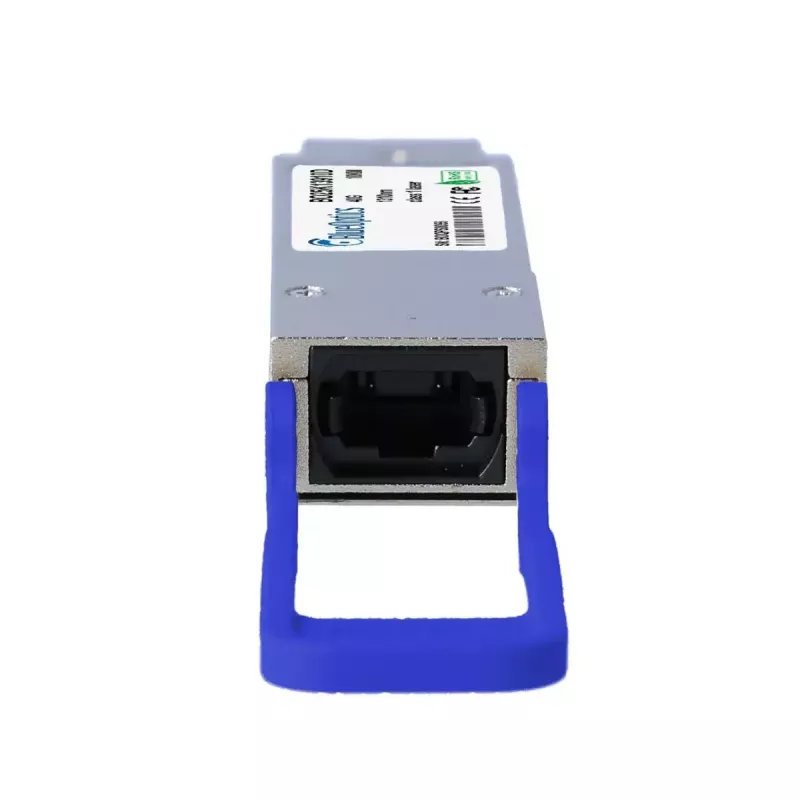

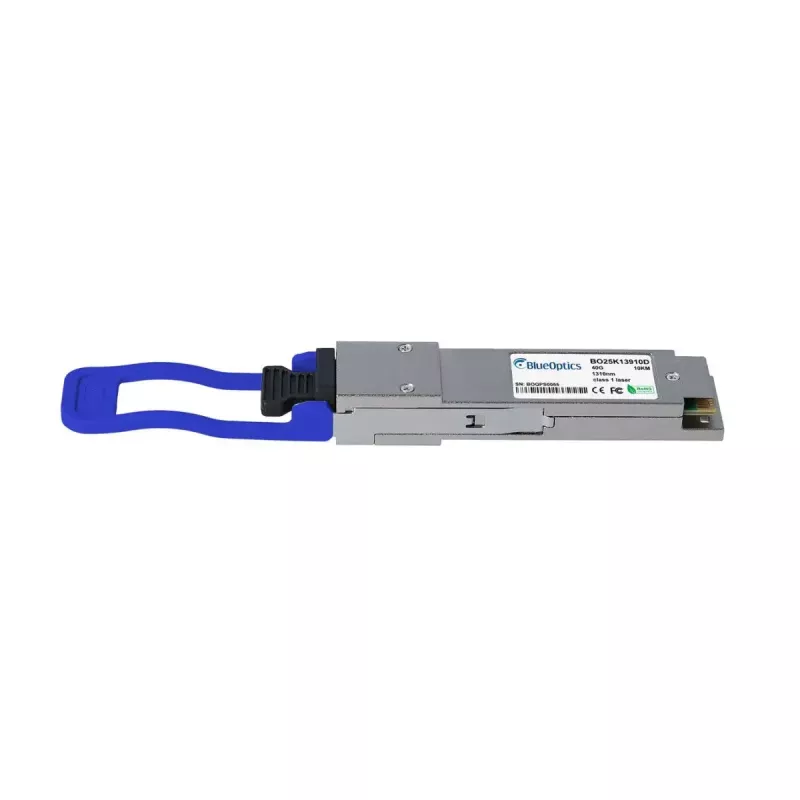

Módulo transceptor de fibra óptica BlueOptics 407-BBQV-BO 40000 Mbit/s QSFP 1310 nm

The BlueOptics 407-BBQV-BO is a fiber optic transceiver module designed for high-speed data transmission in network environments. With a QSFP interface and a maximum data transfer rate of 40,000 Mbit/s, this module supports aggregated links and short- to medium-range connections using a 1310 nm optical wavelength. The module's silver housing and RoHS compliance are intended to meet standard installation and environmental requirements in data centers and enterprise networking equipment.

Advantages

The QSFP interface enables compact quad-lane connection and simplifies integration into QSFP-compatible network switches and routers. Operating at 1310 nm, the transceiver is suitable for multimode or single-mode applications where this wavelength is supported. With a rated 40,000 Mbit/s throughput, the module supports high-bandwidth tasks such as link aggregation and uplink ports while maintaining compatibility with standard QSFP slots. RoHS compliance and a standardized mechanical form factor contribute to reliable installation and regulatory conformity.

Suitable for

• 40 Gbps uplinks and switch interconnects in data centers
• High-bandwidth server-to-switch links
• Telecom and enterprise backbone connections supporting 1310 nm wavelength
• QSFP-capable network equipment requiring compact, high-density transceivers

Key specifications

• Interface type: QSFP (Quad Small Form-factor Pluggable)
• Maximum data transfer rate: 40,000 Mbit/s (40 Gbit/s)
• Optical wavelength: 1310 nm
• Product colour: Silver (housing)
• Compliance: RoHS

How to use

Install the BlueOptics 407-BBQV-BO into a compatible QSFP slot on a network switch, router, or host adapter following the equipment manufacturer's hot-plug or power-down guidance. Connect appropriate fiber optic cabling that supports 1310 nm transmission and ensure correct end-face polishing and connector types for reliable signal integrity. Configure the network device to recognize the 40 Gbit/s link and, if required, set link speed, lane mapping or aggregation settings according to the switch or adapter documentation.

Recommendations

Use factory-tested fiber patch cables and maintain clean connector end-faces when installing the module. Verify that the target equipment supports QSFP modules at 1310 nm and that firmware or driver versions are compatible with 40 Gbit/s operation. For mixed-distance deployments, consult optical budget and cable type to ensure sufficient reach and signal quality.
