Módulo transceptor de fibra óptica BlueOptics 500405-001-BO 10000 Mbit/s SFP+

The BlueOptics 500405-001-BO is a compact SFP+ fiber optic transceiver module designed for 10 Gbit/s networks. It supports a maximum data transfer rate of 10000 Mbit/s, uses an SFP+ interface and is supplied with 3.3 V input voltage. Its small form factor (approx. 13.8 mm × 58.4 mm × 12.6 mm) and light weight (0.02 kg) make it suitable for high-density switch and router ports where a silver-coloured module is required.

Advantages

The module provides a standard SFP+ interface for plug-and-play installation into compatible network hardware. Its support for 10 Gbit/s data rates enables high-throughput links in short-range multimode fiber environments. The compact dimensions and low weight allow for dense port population in networking equipment. Built to Multi-Source Agreement (MSA) form factor expectations, the transceiver is suitable as a compatible replacement for systems that accept the referenced Silver Peak model.

Suitable for

• 10 Gbit/s uplinks and switch-to-switch connections over multimode fiber
• High-density switch and router ports requiring SFP+ form-factor modules
• Short-range data center interconnects and server aggregation links

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s
• Typical supply voltage: 3.3 V input

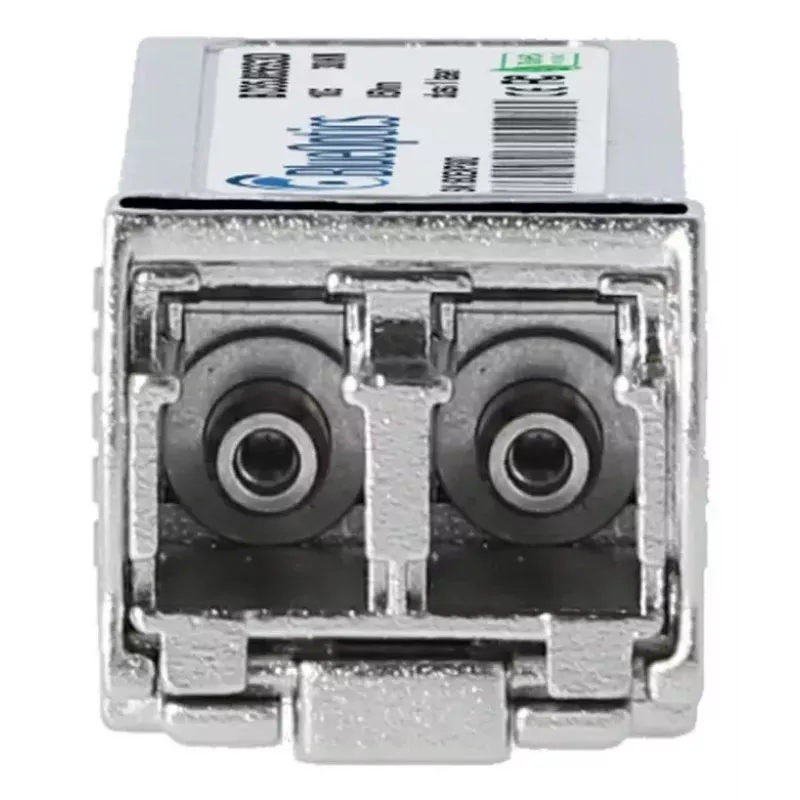

• Connector type: LC duplex (industry-standard for SFP+ multimode transceivers)
• Intended medium: Multimode fiber (short-range applications)
• Colour: Silver
• Dimensions (approx.): 13.8 mm (W) × 58.4 mm (D) × 12.6 mm (H)
• Weight (approx.): 0.02 kg

How to use

Install the BlueOptics SFP+ transceiver into an empty SFP+ slot on compatible network hardware until it seats firmly and the latch engages. Connect LC duplex multimode fiber patch cords to the module, ensuring correct transmit/receive orientation. Ensure the host device provides a 3.3 V supply and that firmware or software in the host recognizes third-party SFP+ modules if required. After insertion and link negotiation, monitor link status via the host device interface.

Recommendations

For optimal link performance use quality multimode fiber and LC duplex patch cords, keep connectors clean and use dust caps when the transceiver is not connected. Verify compatibility with the target hardware platform and check that the distance and fiber type match your application needs.
