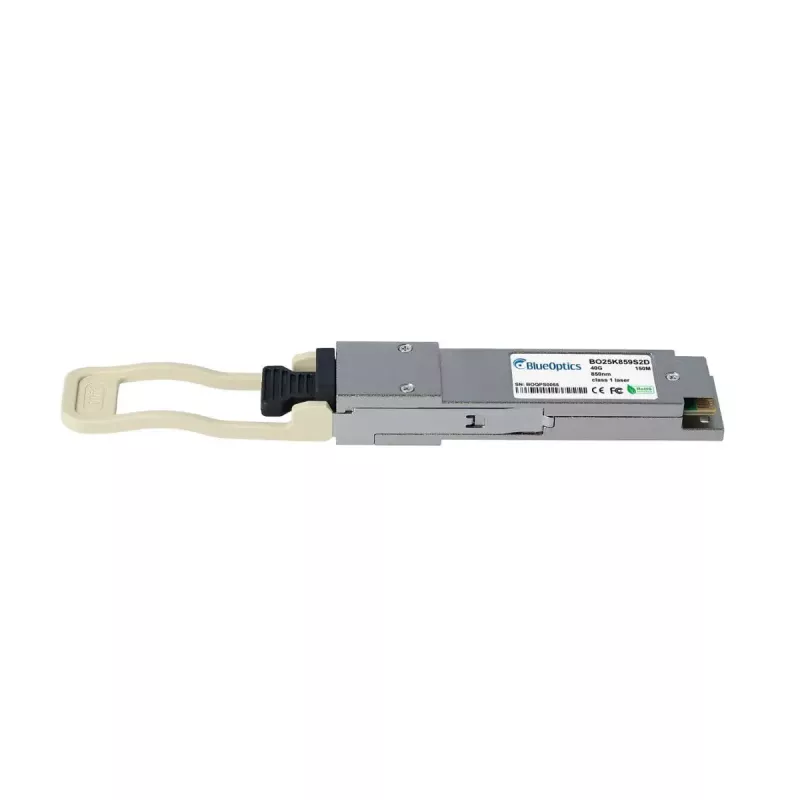

Módulo transceptor de fibra óptica BlueOptics AOM-TQSFP-79EIPZ-AVG 40000 Mbit/s QSFP 850 nm

The BlueOptics AOM-TQSFP-79EIPZ-AVG is a fiber optic transceiver module designed for high-speed connectivity in data center and enterprise networks. With a QSFP interface and a specified maximum data transfer rate of 40000 Mbit/s at an 850 nm wavelength, this compact module provides a standardized physical layer solution for short-reach multimode links. The module’s silver housing and 20 g weight make it easy to handle and install into compatible QSFP ports.

Advantages

This BlueOptics transceiver supports a QSFP form factor and 40 Gbit/s class throughput, enabling aggregation and high-density uplink applications. Operating at 850 nm, it is suitable for multimode fiber systems and delivers predictable performance for short-reach links. The module’s standardized QSFP footprint simplifies replacements and upgrades in switches and servers that accept QSFP optics.

Suitable for

• Short-reach multimode fiber connections in data centers
• High-density uplinks and aggregation links between switches
• Server-to-switch 40 Gbit/s connections
• Network equipment that accepts QSFP optical modules

Key specifications

• Interface type: QSFP
• Maximum data transfer rate: 40000 Mbit/s
• Wavelength: 850 nm
• Typical application: short-reach multimode fiber links
• Housing color: Silver
• Weight: 0.02 kg

How to use

Install the module into a compatible QSFP port on a switch, router or server following the equipment manufacturer’s hot-plug guidelines. Ensure the connected fiber type matches the module’s multimode specification and that fiber connectors are clean and undamaged. After insertion, verify link status through the host device management interface and perform network tests to confirm expected throughput and signal integrity.

Recommendations

Store and handle the transceiver in a static-free environment and use dust caps when ports are not in use. For reliable 40 Gbit/s operation, pair the module with appropriate multimode fiber (OM3/OM4 or per vendor guidance) and maintain proper cleanliness of connectors. Follow the system vendor’s compatibility list when selecting optics for mission-critical deployments.
