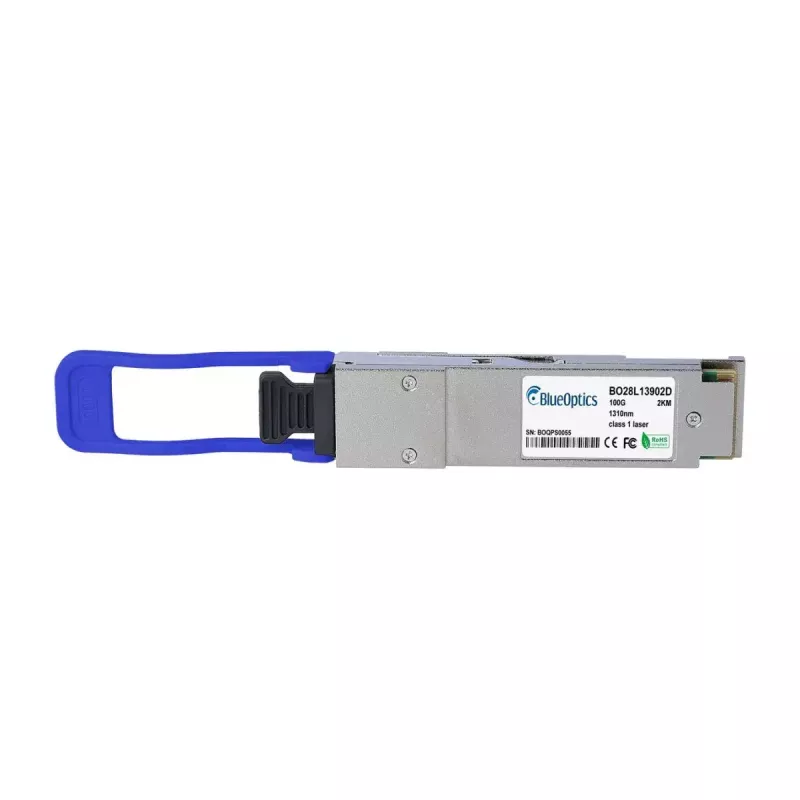

Módulo transceptor de fibra óptica BlueOptics JNP-QSFP-100G-PSM4-BO QSFP28 MTP/MPO

The BlueOptics JNP-QSFP-100G-PSM4-BO is a QSFP28 fiber optic transceiver module engineered for 100G single‑mode links using an MTP/MPO connector. Constructed with an aluminium housing and weighing 40 g, this module follows MSA mechanical and electrical specifications and supports 100GBASE‑PSM4 optical transmission over single‑mode fiber. It is compatible with Juniper platforms that accept the original form factor and supports a range of high‑speed protocols while providing digital diagnostic monitoring for real‑time link parameters.

Advantages

The transceiver offers compact QSFP28 packaging for high port density and an MTP/MPO multi‑fiber interface for parallel single‑mode transmission. Its aluminium body provides lightweight durability and thermal conduction. Built and tested to interoperate with relevant Juniper hardware and MSA standards, the module delivers predictable performance for up to 100 Gbit/s links and includes DDM/DOM support for remote monitoring of voltage, laser bias current, optical power and temperature.

Suitable for

• 100G Ethernet uplinks and spine‑leaf switch interconnects
• High‑performance data centre switching and routing
• Storage area network links and Fibre Channel over Ethernet (FCoE)
• Short‑reach single‑mode optical trunks up to about 2 km

Key specifications

• Interface type: QSFP28
• Optical mode: Single‑mode fiber
• Connector: MTP/MPO multi‑fiber
• Supported standard: 100GBASE‑PSM4 (parallel single‑mode)
• Form factor: QSFP28 (4‑lane 25G per lane aggregation)
• Material / colour: Aluminium housing (aluminium colour)
• Weight: 0.04 kg
• Monitoring: Digital Diagnostics Monitoring (DDM/DOM) compliant with MSA SFF‑8472

How to use

Install the module into a compatible QSFP28 port according to the host device manual and ensure the port firmware supports the transceiver. Connect the MTP/MPO patch cord to the module and route fibers as required, ensuring correct polarity and clean connector end faces. Verify link status and monitor operating parameters via the host management interface or DDM to confirm proper signal levels and temperature. Follow the equipment vendor’s hot‑swap and ESD handling procedures during insertion and removal.

Recommendations

Use certified single‑mode MTP/MPO patch cords and, where applicable, compatible breakout cables or patch panels to achieve the specified range. Confirm host compatibility and enable DDM support in the network device to access diagnostics. Maintain clean connectors and follow recommended fiber handling to preserve signal quality and module lifetime.
