Módulo transceptor de fibra óptica BlueOptics S+23LC10D-BO SFP+ LC aluminio 20g

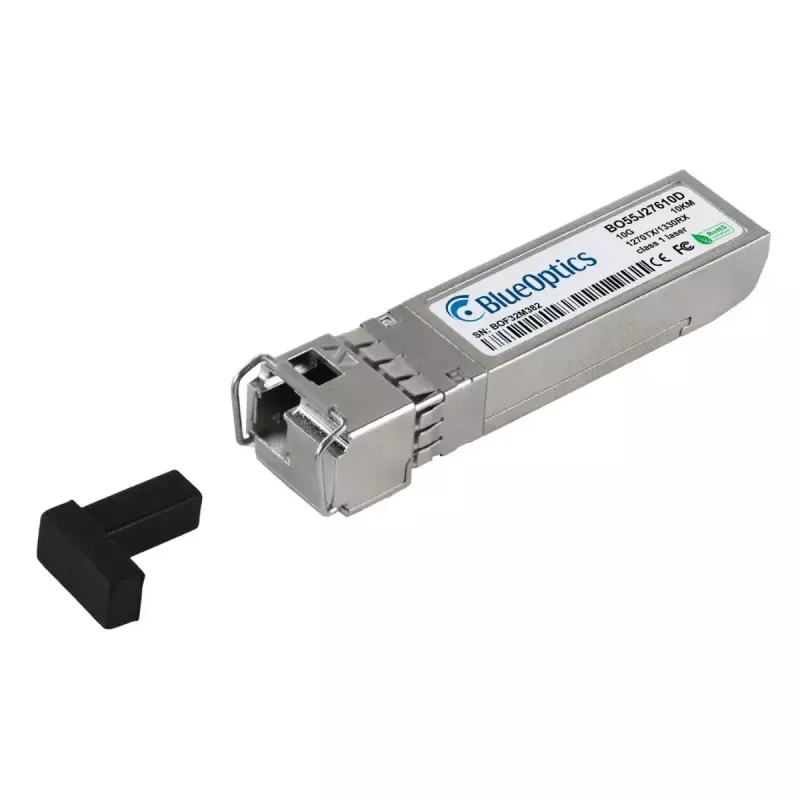

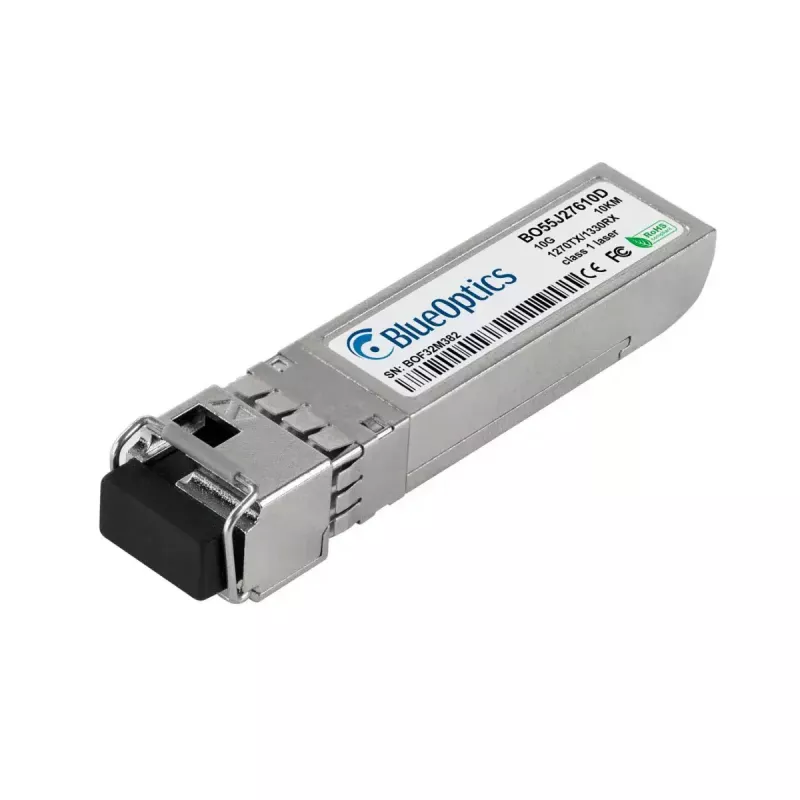

The BlueOptics S+23LC10D-BO SFP+ LC Aluminium 20g is a fiber optic transceiver module designed for 10G high-speed single-mode links. It uses an SFP+ interface and an LC simplex connector to send and receive optical signals on separate wavelengths over a single fiber pair, enabling up to 10 Gbit/s transmission over distances suitable for long-reach applications. The module is housed in an aluminum casing and weighs approximately 20 g, providing a compact, lightweight solution for network switches, routers and other communication equipment that support SFP+ transceivers.

Advantages

This BlueOptics transceiver supports 10GBASE-BX-U operation with distinct transmit and receive wavelengths for single-mode fiber, following MSA standards for mechanical and electrical compatibility. The module is compatible with common networking platforms that accept SFP+ 10G optics and is built with components selected for stable performance and extended service life. It supports digital diagnostics monitoring (DDM/DOM) when the host device exposes that functionality, allowing real-time readout of parameters such as supply voltage, laser bias current, optical output and input power, and temperature.

Suitable for

Key specifications

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on a switch, router or other networking device while the host is powered on or according to the device vendor’s hot-plug recommendations. Connect an LC single-mode fiber patch cable of the appropriate polarity to the LC simplex connector; ensure the transmit and receive sides are matched to the remote transceiver for BX operation. Configure the host device for 10G operation if required by the platform and verify link status and diagnostics via the host management interface. Follow device vendor instructions for any firmware or compatibility settings that affect third-party transceivers.

Recommendations

Use high-quality single-mode fiber patch cords and maintain clean connector end-faces to achieve optimal optical performance. Confirm that the host device supports DDM/DOM if you intend to monitor diagnostic data. Observe ESD precautions during handling and follow the system vendor’s supported optics list or compatibility guidance when integrating third-party SFP+ modules.
