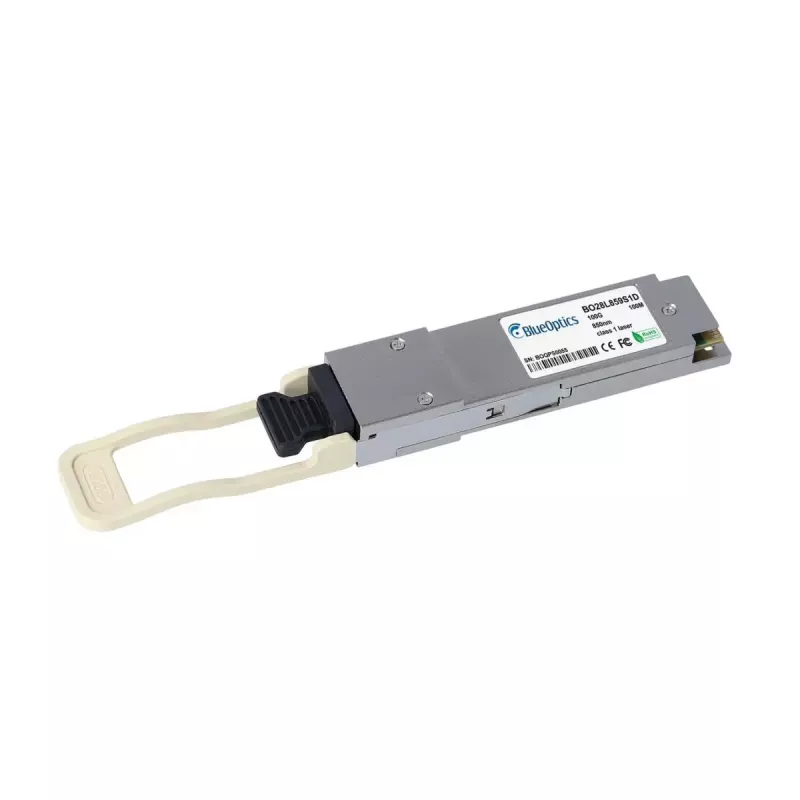

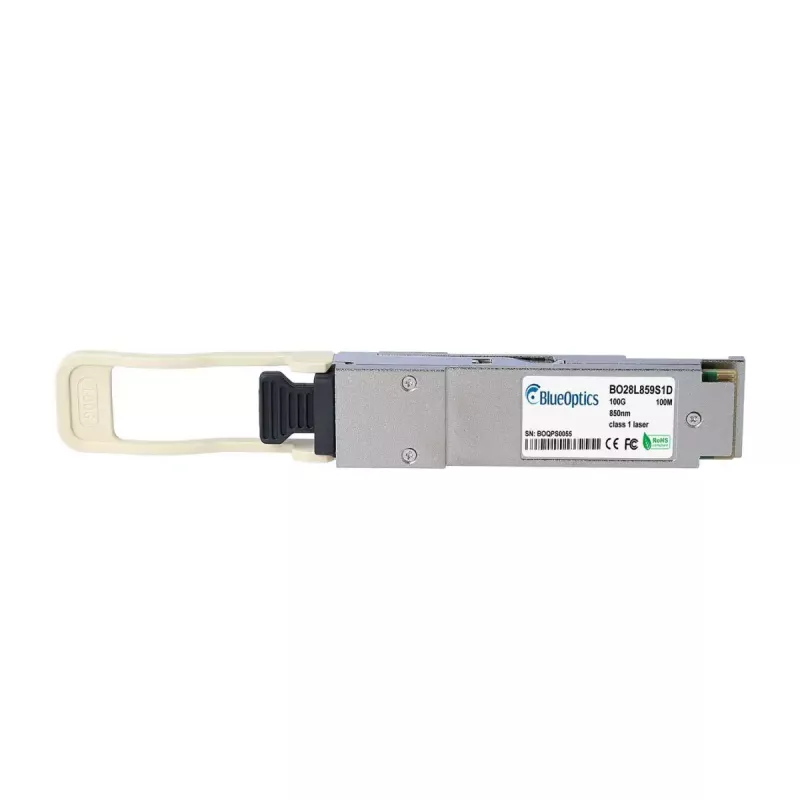

Módulo transceptor de fibra óptica BlueOptics TN-QSFP-100G-SR4-BO 100000 Mbit/s QSFP28 850 nm

The BlueOptics TN-QSFP-100G-SR4-BO is a fiber optic transceiver module designed for high-speed data communication. It supports a maximum data transfer rate of 100000 Mbit/s over multimode fiber using 850 nm lasers and fits QSFP28 ports. With a compact form factor and a silver finish, this module provides a standardized MPO/MTP optical interface suitable for short-reach 100GBASE-SR4 connections up to the multimode distance supported by the cabling.

Advantages

This QSFP28 transceiver is manufactured according to MSA standards and is compatible with hardware platforms that support 100GBASE-SR4 QSFP28 modules. It integrates transmit and receive lanes at 850 nm and supports simultaneous bidirectional optical transmission via MPO/MTP connectivity. The module includes digital diagnostic monitoring (DDM/DOM) functionality for real-time monitoring of supply voltage, laser bias current, optical output and input power, and temperature when supported by host hardware. Built with quality optical components and ICs, it is intended for long operational life and reliable uptime in high-bandwidth environments.

Suitable for

Key specifications

How to use

Install the module into a QSFP28-compliant port on a switch, router, or other network appliance that supports 100GBASE-SR4 QSFP28 transceivers. Connect an MPO/MTP multimode fiber patch cord to the module and route the other end to the corresponding MPO/MTP connector or patch panel. Confirm that the host device recognizes the transceiver and, if required, enable DDM/DOM support in the device to access diagnostic parameters. Follow standard handling procedures for optical transceivers: avoid touching the connector endface, keep dust caps on until connection, and ensure proper electrostatic discharge (ESD) precautions during installation.

Recommendations

For optimal performance, pair the module with multimode fiber and MPO/MTP cabling that meet the required bandwidth-distance product (OM3/OM4/OM5 as appropriate). Use high-quality BlueOptics or equivalent patch cords and maintain clean connector endfaces. Verify host compatibility and firmware settings prior to deployment and monitor DDM/DOM readings for proactive maintenance.
