Módulo transceptor de fibra óptica PLANET MGB-TLB10

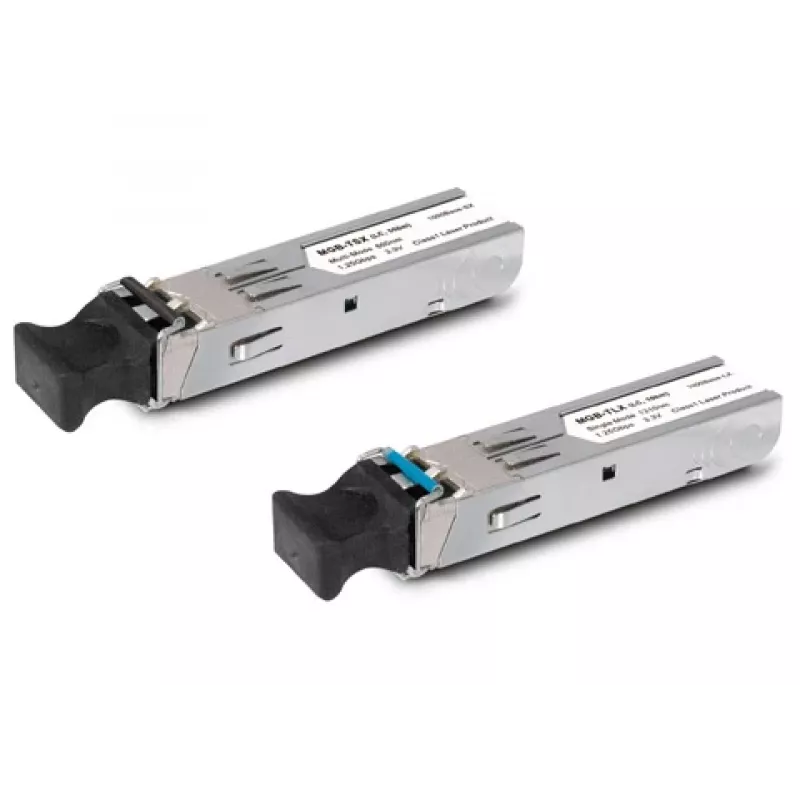

The PLANET MGB-TLB10 is an SFP fiber optic transceiver module designed for 1000BASE-SX/LX/BX Gigabit Ethernet links over single-mode optical fiber. Compliant with the SFP Multisource Agreement (MSA) and hot-pluggable, the MGB-TLB10 can be installed in SFP-compatible ports without interrupting host equipment. It supports long-distance transmission at a wavelength of 1550 nm and is suitable for use in PLANET switches and other devices with SFP interfaces.

Advantages

The MGB-TLB10 provides reliable 1 Gbit/s data transfer with a small form factor SFP interface, enabling easy deployment and replacement in SFP MSA-compliant ports. Its design supports long-range single-mode links and interoperability with standard SFP ports. The module is built to operate over wide temperature ranges for industrial applications and is hot-pluggable to allow installation without powering down host equipment.

Suitable for

• Long-distance single-mode Gigabit Ethernet links (1550 nm)
• Upgrading or extending network connections in switches and routers with SFP ports
• Industrial Ethernet environments requiring wide temperature operation

Key specifications

• Interface type: SFP
• Standard: 1000BASE-SX/LX/BX (Gigabit Ethernet)
• Maximum data transfer rate: 1000 Mbit/s
• Wavelength: 1550 nm
• Form factor: Small Form Factor Pluggable (SFP), hot-pluggable

How to use

Insert the MGB-TLB10 module into an SFP-compatible port on a switch or other network device until it clicks into place. Connect the single-mode fiber cable (LC connector as applicable) to the module, ensuring proper fiber polarity and secure connections. After installation, verify link status on the host device and configure network settings as required by your equipment. The module supports hot-plug operation, so it can be installed or removed while the host remains powered.

Recommendations

Use single-mode fiber of appropriate specification and LC connectors for optimal performance. Verify compatibility with your switch or router SFP port and follow manufacturer guidance for fiber handling and connector cleaning to maintain signal quality. For industrial deployments, confirm the device supports the required operating temperature range.
