Módulo transceptor de fibra óptica SFP+ VALUE 21.99.3498 — 10 Gbit/s, 1310 nm, SFP+

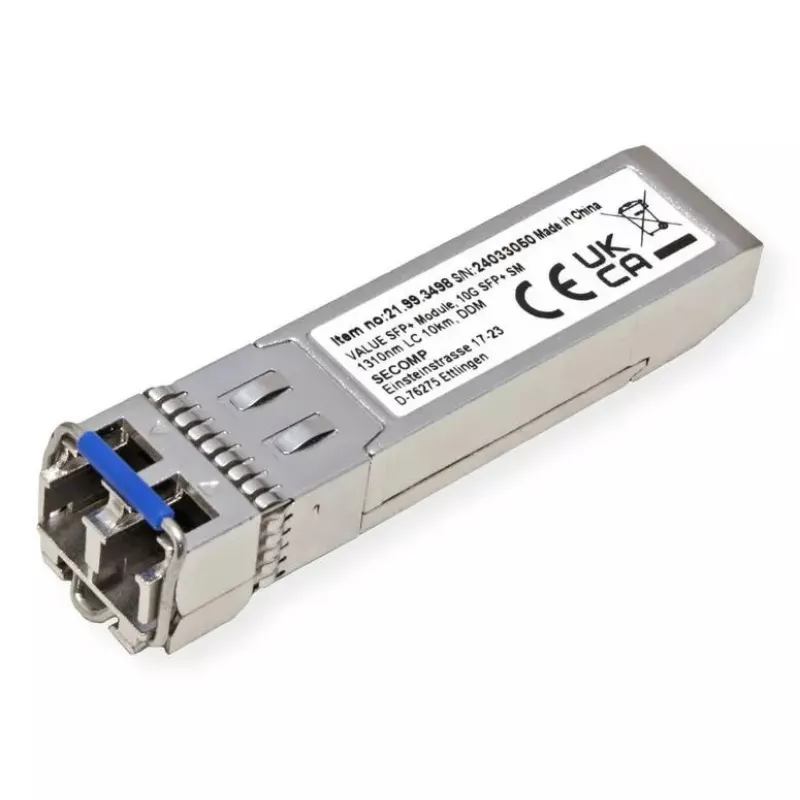

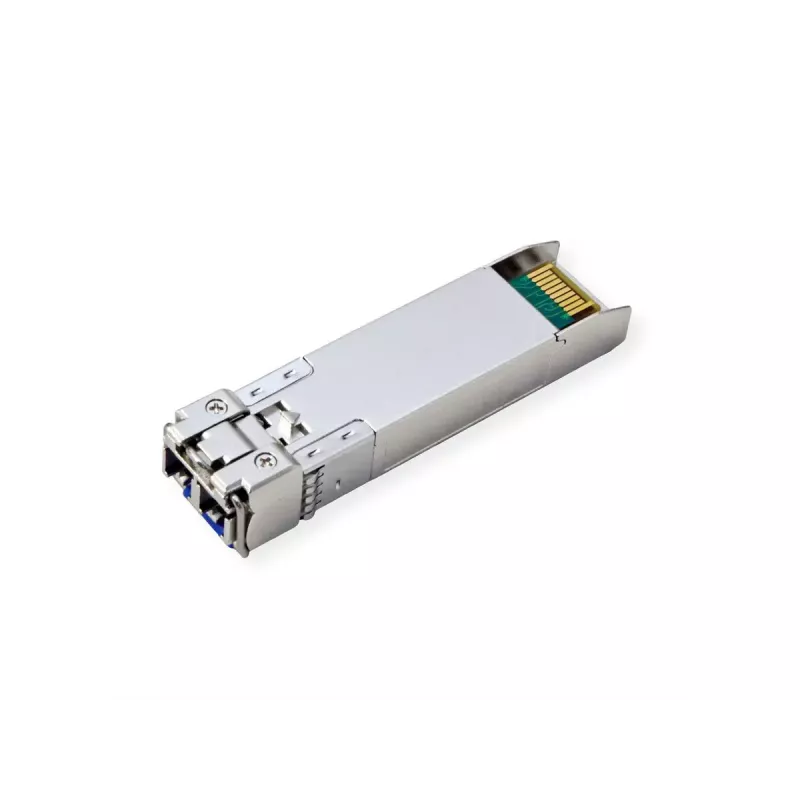

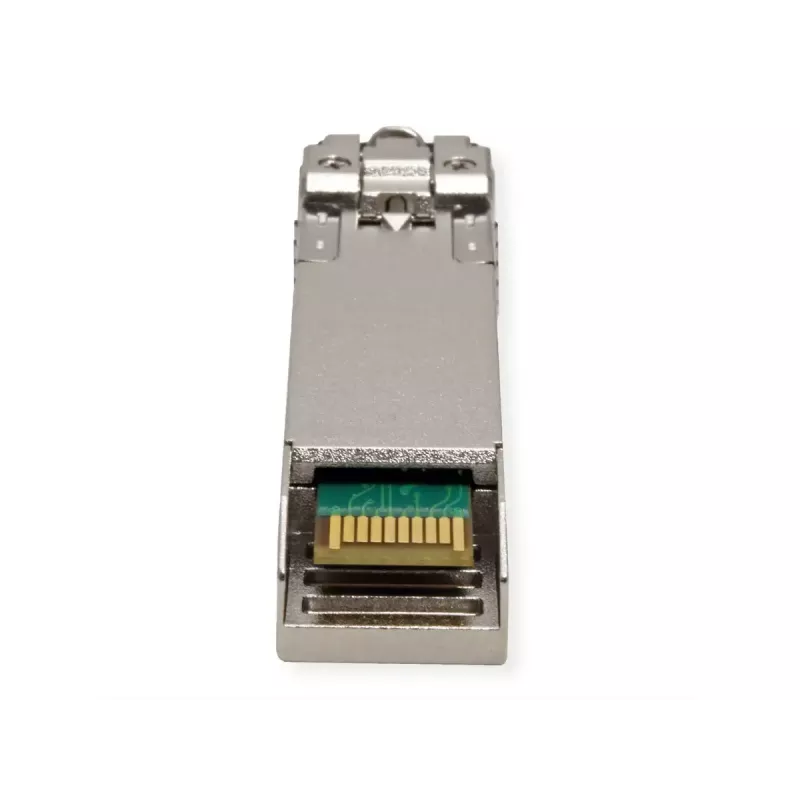

VALUE 21.99.3498 is an SFP+ fiber optic transceiver module that supports data rates up to 10 Gbit/s over single‑mode fiber. The module uses a 1310 nm wavelength and an LC connector interface designed to fit standard SFP+ ports on switches, routers and media converters. Its compact metal housing and hot‑swappable design allow for straightforward installation in 10 Gigabit Ethernet uplinks and long‑reach connections up to 10 km.

Advantages

The module provides a reliable 10 Gbit/s optical interface with Digital Diagnostic Monitoring (DDM) for real‑time status reporting of parameters such as optical power and temperature. Its single‑mode 1310 nm design is suited for extended reach links, while the SFP+ form factor ensures wide compatibility with network equipment that accepts Mini‑GBIC transceivers. The silver metal casing and small dimensions contribute to durable operation in rack‑mounted and compact network environments.

Suitable for

• 10 Gigabit Ethernet uplinks between switches and core devices
• Long‑reach single‑mode fiber links up to 10 km
• Interconnection of routers, media converters and transponder equipment with SFP+ ports
• Network upgrades requiring 10 Gbit/s optical ports

Key specifications

• Data rate: up to 10 000 Mbit/s (10 Gbit/s)
• Optical wavelength: 1310 nm
• Fiber type: single‑mode fiber (SMF)

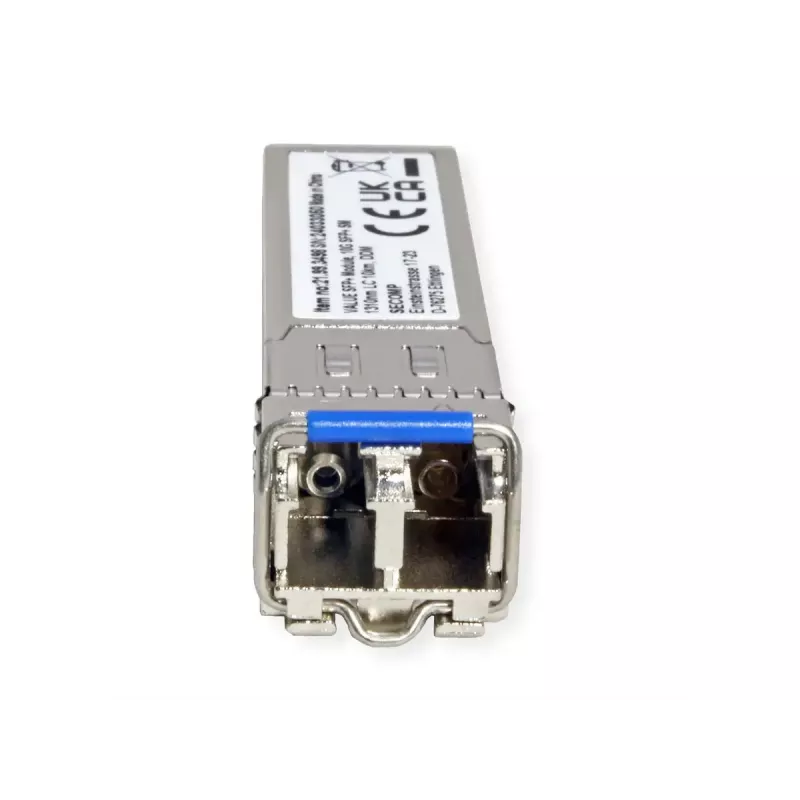

• Connector type: LC duplex
• Maximum transmission distance: up to 10 km on SMF
• Form factor: SFP+ (Mini‑GBIC), hot‑swappable
• Diagnostic: Digital Diagnostic Monitoring (DDM)
• Color / finish: silver metal housing
• Dimensions (approx.): 14 × 57 × 12 mm
• Weight (approx.): 0.015 kg

How to use

Insert the VALUE SFP+ transceiver into any compatible SFP+ port while the host device is powered on or off; the module is hot‑swappable and should seat firmly in the port. Connect LC‑terminated single‑mode fiber patch cables to the transceiver, observing correct Tx/Rx orientation. After physical installation, verify link status on the network device and consult the device interface for DDM readings and operational parameters. If the network equipment requires specific configuration, enable the corresponding 10 Gbit/s optical interface and confirm link negotiation and speed settings.

Recommendations

Use single‑mode fiber with appropriate LC connectors and maintain proper fiber cleanliness when inserting or removing patch cords. Ensure transceiver firmware and host device compatibility for optimal interoperability, and monitor DDM values to detect signal degradation or temperature issues during operation.
